Overview of ZOKECRANE Joystick Radio Remote Controls

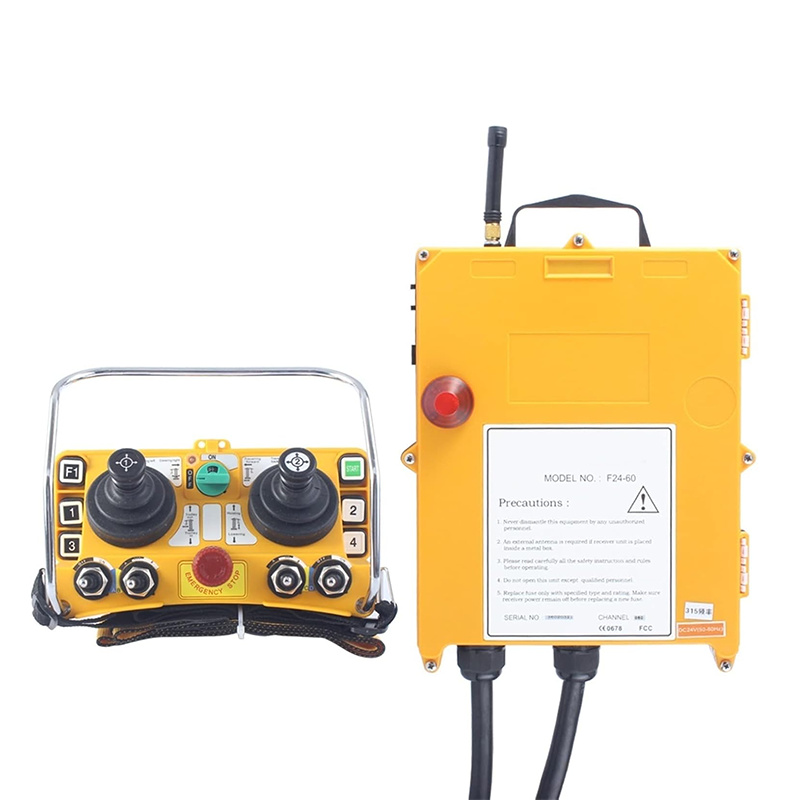

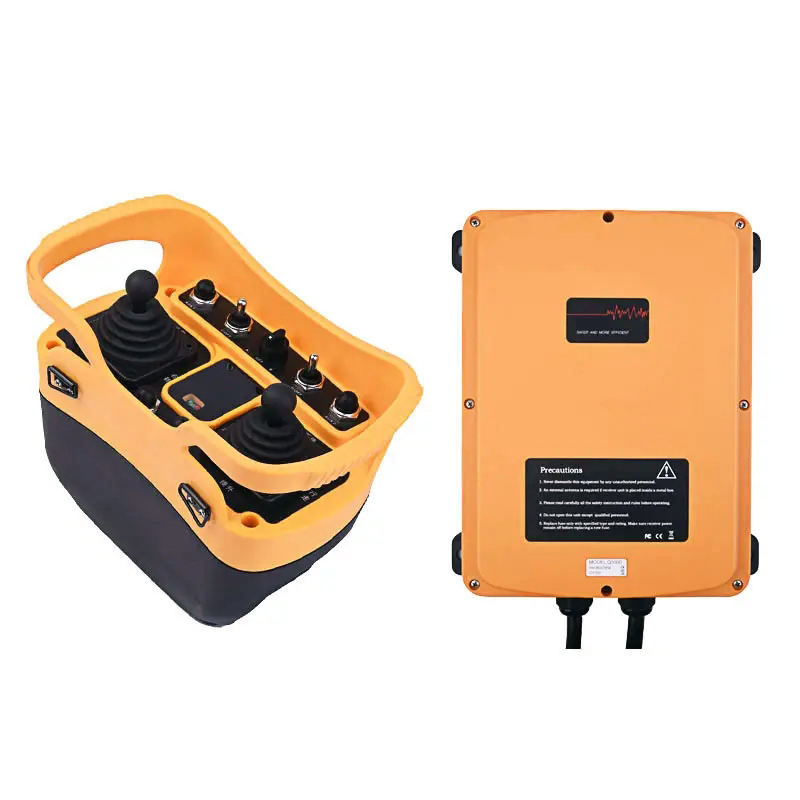

Manufactured by Henan Zoke Crane Co., Ltd., ZOKECRANE joystick wireless remote control systems consist of a waist-mounted console transmitter and an industrial-grade receiver unit. Featuring heavy-duty dual 5-step or stepless proportional joysticks, rotary selector switches, toggle switches, and real-time OLED status displays, our radio remote systems enable multi-motion control (hoist, trolley, bridge, grab, rotator) with 100% precision and zero operator fatigue.
Key Technical Specifications & Parameters
| Technical Parameter | Joystick Remote Control Specification |
|---|---|
| Product Type | Joystick Industrial Wireless Remote Control (Belly Box Type) |
| Joystick Configuration | Dual 5-step tactile joysticks / Stepless analog proportional joysticks |
| Auxiliary Controls | Toggle switches, rotary selector switches, key switch, illuminated push buttons |
| Control Distance | Up to 100 meters (Extended antenna range up to 200m+ available) |
| Frequency Range | VHF: 310–331 MHz / UHF: 425–446 MHz (4.3 billion unique security ID codes) |
| Transmitter Power Supply | High-capacity rechargeable lithium-ion battery pack (Includes smart charger) |
| Receiver Power Supply | AC/DC 24V, 36V, 110V, 220V, 380V, 440V (50Hz/60Hz) |
| Feedback Display | Optional real-time LCD/OLED screen for load weight, battery level, and fault codes |
| Enclosure Protection Rating | IP65 Dustproof & Waterproof (High-impact glass-fiber reinforced housing) |
| Certifications & Compliance | ISO 9001 Quality System, CE Certified, FCC Certified, SGS Verified |
Core Product Advantages & Engineering Features

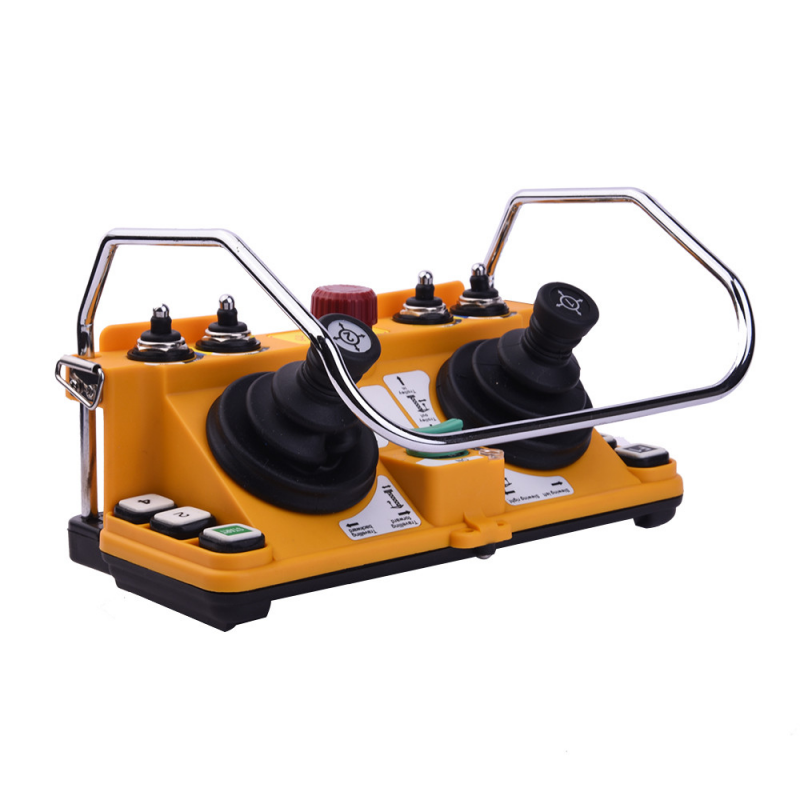

- Multi-Axis Simultaneous Control: Dual joysticks allow operators to control multiple crane motions (e.g., hoisting, trolley travel, and bridge travel) simultaneously with natural hand movements.
- Ergonomic Waist-Belt Design: Ergonomically designed with comfortable waist straps and shoulder harnesses to reduce physical strain during long operating shifts.
- Proportional Stepless Speed Control: Supports stepless variable speed output (VFD integration) or multi-step speed selection for ultra-precise load positioning.
- Rugged Heavy-Duty Housing: Constructed from ultra-durable PA66 glass-fiber reinforced plastic, offering high impact resistance, chemical oil protection, and flame retardancy.
Industrial Applications of Joystick Remote Controls
ZOKECRANE joystick radio remote control systems are designed for heavy-duty, multi-function, and high-duty-cycle cranes across various demanding industries globally:
1. Heavy Double Girder Overhead Cranes
Controls heavy double-trolley winches, main/auxiliary hoist systems, and complex steel mill crane motions from the shop floor.
2. Shipyard & Container Gantry Cranes
Provides precise multi-axis control for shipbuilding gantry cranes, rail-mounted container cranes (RMG), and port portal cranes.
3. Metallurgical Ladle & Magnet Cranes
Ideal for operating foundry ladle cranes, scrap magnet cranes, and rotating hook block cranes from a safe thermal distance.
4. Hydraulic Grabs & Heavy Mining Machinery
Controls electro-hydraulic grab buckets, excavator-cranes, marine deck winches, and concrete pump trucks with smooth proportional joysticks.
Frequently Asked Questions (Product FAQs)

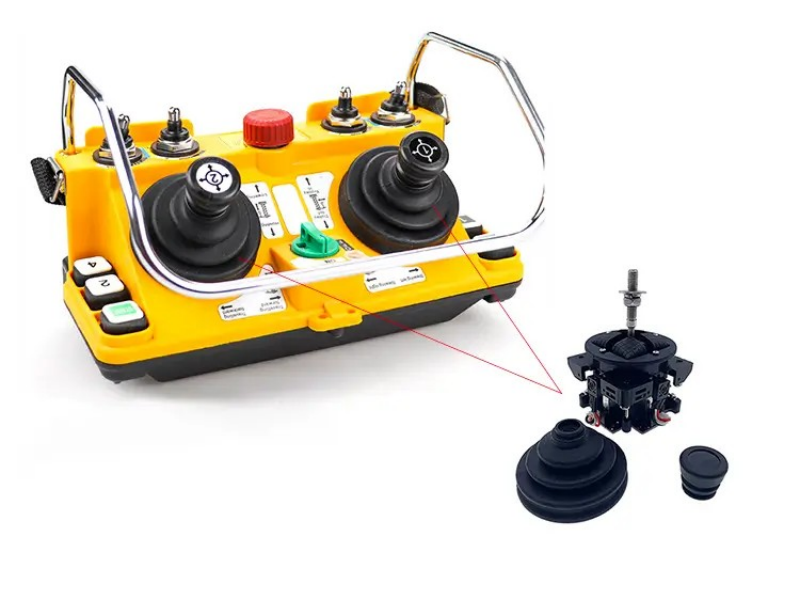

What is the difference between 5-step joysticks and stepless proportional joysticks?
5-Step Joysticks feature distinct mechanical detents for 5 speed levels in each direction, ideal for multi-speed contactor or VFD cranes. Stepless Proportional Joysticks output continuous analog signals (0–10V or 4–20mA), enabling infinitely variable speed control for smooth, sway-free acceleration.
Can the joystick transmitter display real-time crane data like load weight?
Yes. We offer optional two-way feedback models equipped with high-contrast LCD/OLED screens on the transmitter. The screen can display real-time weight data from the crane overload limiter, wind speed warnings, battery capacity, and diagnostic fault alerts.
How long does the battery last on a single charge?
Our joystick transmitters are powered by high-capacity rechargeable lithium-ion battery packs, delivering 16 to 24 hours of continuous operation on a single charge. Each system includes two battery packs and a smart charging dock for 24/7 multi-shift operations.
Is the joystick remote suitable for extreme outdoor weather conditions?
Yes. Both the transmitter and receiver units are IP65 weather-sealed, dustproof, and waterproof. They are engineered to operate reliably in harsh ambient temperatures ranging from -35°C to +80°C, high humidity, and dusty environments.
Export & Logistics FAQs for International Buyers
Which international markets does ZOKECRANE export joystick remote controls to?
ZOKECRANE crane accessories and control systems are exported worldwide, supplying crane manufacturers, steel mills, and port operators in Russia, Uzbekistan, the Philippines, Bangladesh, Australia, Qatar, Tanzania, Singapore, Saudi Arabia, Brazil, Nigeria, and many other global markets.
How are joystick remote controls packaged for international ocean/air freight?
Transmitters, waist harnesses, receivers, antennas, batteries, and smart chargers are vacuum-sealed in anti-static moisture-proof plastic film, cushioned with pre-cut high-density foam, and packed in heavy-duty export-standard cartons or wooden cases.
What quality and safety certifications accompany ZOKECRANE joystick remotes?
Every ZOKECRANE joystick radio remote control system is manufactured under ISO 9001 Quality Management System compliance, carries European CE certificates, FCC radio frequency approval, and is backed by SGS quality inspection reports.
What shipping terms and delivery lead times do you offer for joystick remote orders?
We support standard international trading terms including FOB, CIF, CFR, DDU, and DDP. Standard joystick remote control models are kept in stock with fast lead times of 5 to 10 business days; custom voltage, custom relay output, or feedback screen models take 12 to 20 business days.
Does ZOKECRANE provide wiring diagrams and technical support for installation?
Yes. Every remote control set is shipped with clear color-coded electrical wiring schematics, relay output guides, and user operation manuals. Additionally, our technical engineering team provides 24/7 remote video assistance to guide your site electrical engineers through wiring, VFD parameter matching, and commissioning.
