Overview of ZOKECRANE Crane Wire Rope Drum Assemblies

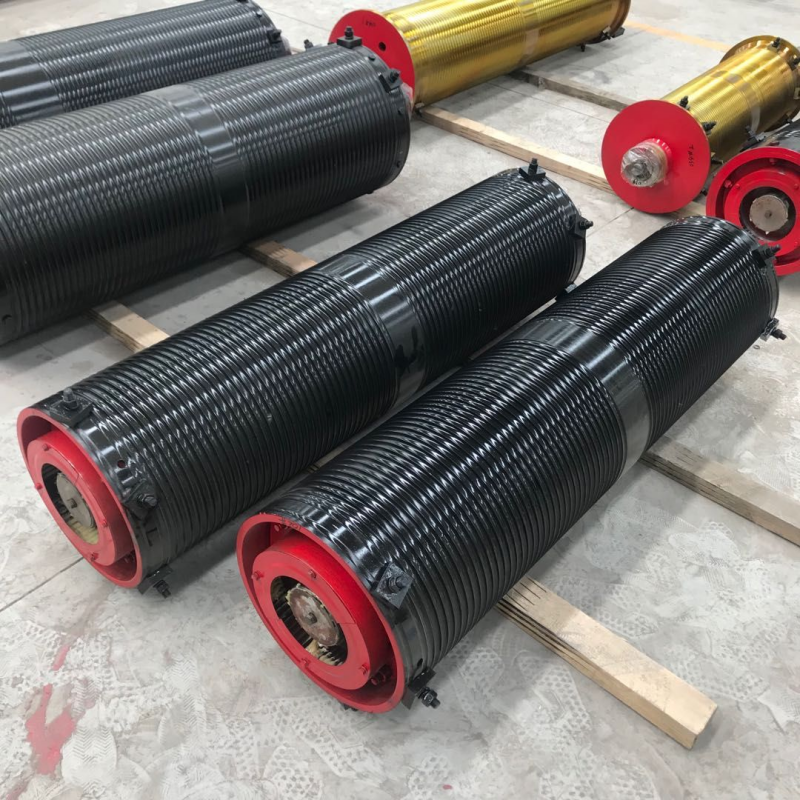

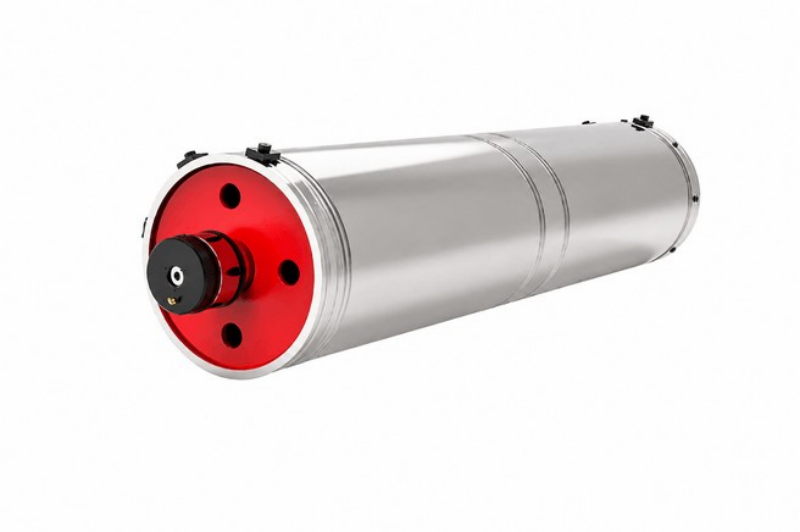

Manufactured by Henan Zoke Crane Co., Ltd., ZOKECRANE wire rope drums are fabricated from seamless steel pipes, Q355B/Q355D steel plate roll-weldings, or high-grade cast iron/steel (HT200, ZG270-500, ZG310-570). Machined on advanced CNC lathes with precision-cut spiral rope grooves, our drum assemblies accommodate single-layer or multi-layer spooling and are fully integrated with stub shafts, bearing pedestals, connecting flanges, and drive gear couplings for cranes with lifting capacities ranging from 1 ton to over 200 tons.
Key Technical Specifications & Parameters
| Technical Parameter | Wire Rope Drum Specification |
|---|---|
| Product Type | Seamless Pipe Drum / Welded Steel Plate Drum / Cast Steel Drum Assembly |
| Drum Diameter (D) | Ø200 mm to Ø1,600+ mm (Custom engineered sizes available) |
| Matching Wire Rope Diameter | Ø6 mm to Ø50+ mm (Precision spiral groove radius matching DIN/ISO standards) |
| Manufacturing Material | Q355B / Q355D welded steel plate, 20# seamless steel tube, ZG270-500, HT200 |
| Groove Geometry Options | Left/Right hand single spiral groove, double spiral groove, Lebus special groove |
| Lifting Height Capability | Customized groove length and multi-layer spooling to suit specific lifting heights |
| Drive & Support Structure | Integrated internal/external splined shafts, gear couplings, heavy spherical roller bearings |
| Quality Inspection & NDT | 100% Ultrasonic Testing (UT), Magnetic Particle Testing (MT), dynamic balance test |
| Certifications & Standards | ISO 9001 Quality System, CE Certified, SGS Verified, DIN 15063 Compliant |
Core Product Advantages & Engineering Features
- Precision CNC Machine Grooving: Smooth, CNC-machined spiral grooves guide the wire rope accurately, preventing rope friction, overlapping, and crushing during high-speed hoisting.
- Flawless Welded & Cast Structural Integrity: Fabricated from thick-walled seamless pipes or fully stress-relieved welded steel plates with 100% NDT inspection to eliminate internal defects.
- Optimized Stress Distribution: Heavy-duty internal stiffener ribs support high radial crushing forces exerted by tightly wound wire rope under full load capacity.
- Turn-Key Complete Assemblies: Supplied complete with precision-fitted shaft hubs, spherical bearings, housings, and gear connections ready for direct installation onto crane trolleys.
Industrial Applications of Crane Wire Rope Drums
ZOKECRANE crane wire rope drum assemblies are critical hoisting components utilized across diverse lifting machinery and industrial facilities worldwide:
1. Overhead & Double Girder Trolley Winches
Serves as the core hoisting drum on double girder crane trolleys, open winches, and heavy-duty EOT cranes in steel manufacturing bays.
2. Wire Rope Electric Hoists
Precision-molded and machined rope drums integrated into single girder electric hoists and monorail hoisting units.
3. Gantry Cranes & Container Handling Equipment
Heavy-duty wire rope drums engineered for long lifting heights on shipyard Goliath cranes, rail-mounted gantry cranes (RMG), and port portal cranes.
4. Metallurgical & Heavy Mining Winches
Heat-resistant steel drums operating in high-temperature foundry ladle cranes, slag cranes, and heavy-duty shaft winches.
Frequently Asked Questions (Product FAQs)
What is the difference between a Seamless Pipe Rope Drum and a Steel Plate Welded Drum?

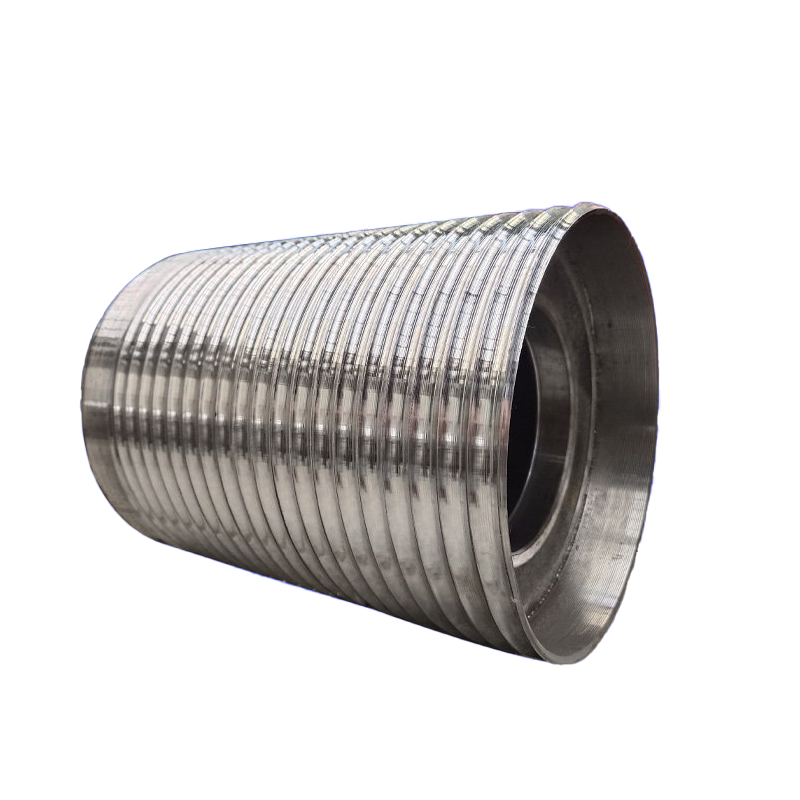

Seamless Pipe Rope Drums are economical and ideal for standard light-to-medium capacity cranes with small-to-medium drum diameters. Steel Plate Welded Drums are manufactured from thick rolled steel plates with internal reinforcing diaphragms, making them essential for large-diameter drums, long lifting heights, and heavy-duty cranes.
Why is groove pitch accuracy critical for a wire rope drum?
If the groove pitch or radius does not precisely match the wire rope diameter, the rope will pinch or slide against adjacent grooves. This causes severe rope distortion, rapid strand wear, and uneven winding, significantly shortening the lifespan of both the drum and the wire rope.
Does ZOKECRANE supply rope drums with Lebus multi-layer spooling grooves?

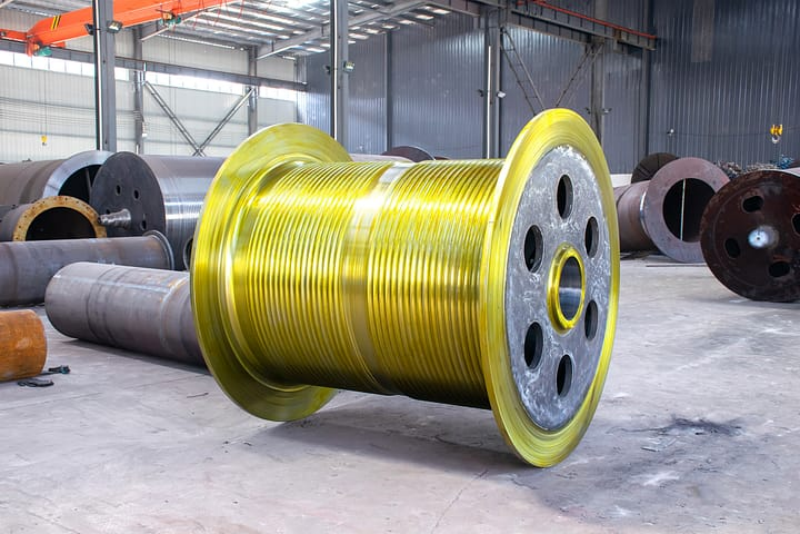

Yes. For cranes requiring multi-layer rope winding (such as high-lift gantry cranes or deep-shaft winches), we manufacture specialized Lebus grooved drums that ensure smooth, tangle-free multi-layer spooling.
How do you ensure the dynamic balance of heavy crane rope drums?
After machining and shaft assembly, every high-speed or heavy-duty drum undergoes dynamic balancing testing on specialized balancing equipment to minimize vibration, noise, and wear on bearing pedestals.
Export & Logistics FAQs for International Buyers
Which international markets does ZOKECRANE export wire rope drums to?
ZOKECRANE crane accessories and structural components are supplied globally, serving crane builders, hoist integrators, and industrial maintenance buyers in Russia, Uzbekistan, the Philippines, Bangladesh, Australia, Qatar, Tanzania, Singapore, Saudi Arabia, Brazil, Nigeria, and many other global markets.
How are wire rope drums packaged to prevent surface damage and corrosion during ocean freight?
All machined spiral grooves, shaft ends, splines, and bearing journals are coated with heavy anti-rust grease and wrapped in moisture-proof protective film. Complete drum assemblies are vacuum-sealed in plastic wrapping, cushioned on heavy steel skids, and secured in export-standard fumigated wooden cases.
What quality control documents accompany ZOKECRANE rope drum shipments?
Every shipment is accompanied by a complete quality control package, including ISO 9001 compliance, European CE certificates, EN 10204 3.1 Material Test Reports (MTR), non-destructive testing reports (UT/MT for welds), dimensional inspection sheets, and SGS verification upon request.
What shipping terms and manufacturing lead times do you offer?
We support standard international commercial terms including FOB, CIF, CFR, DDU, and DDP. Standard electric hoist drum sizes have fast lead times of 10 to 15 business days, while custom heavy-duty welded or cast rope drum assemblies take 20 to 30 business days.
Can ZOKECRANE custom-manufacture replacement drums according to old crane drawings?
Yes. Our engineering department can custom-machine replacement rope drums directly according to your original CAD drawings, trolley mounting dimensions, shaft connections, or worn sample measurements for existing cranes.
