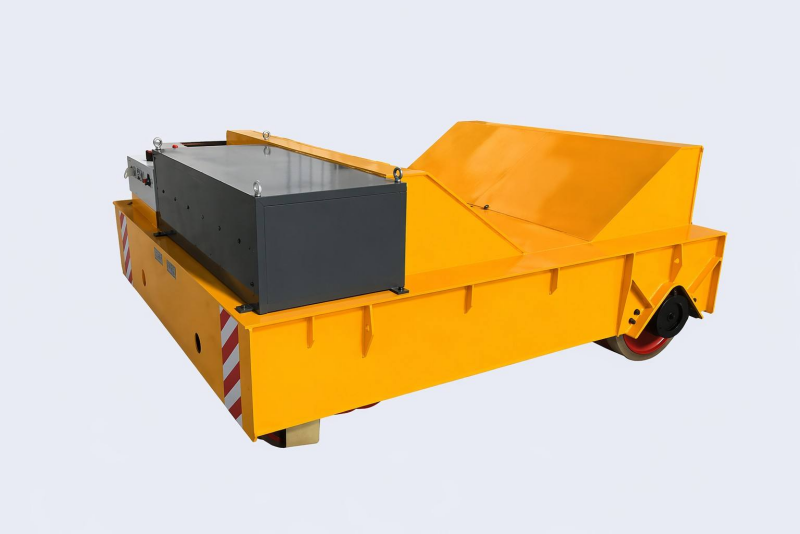

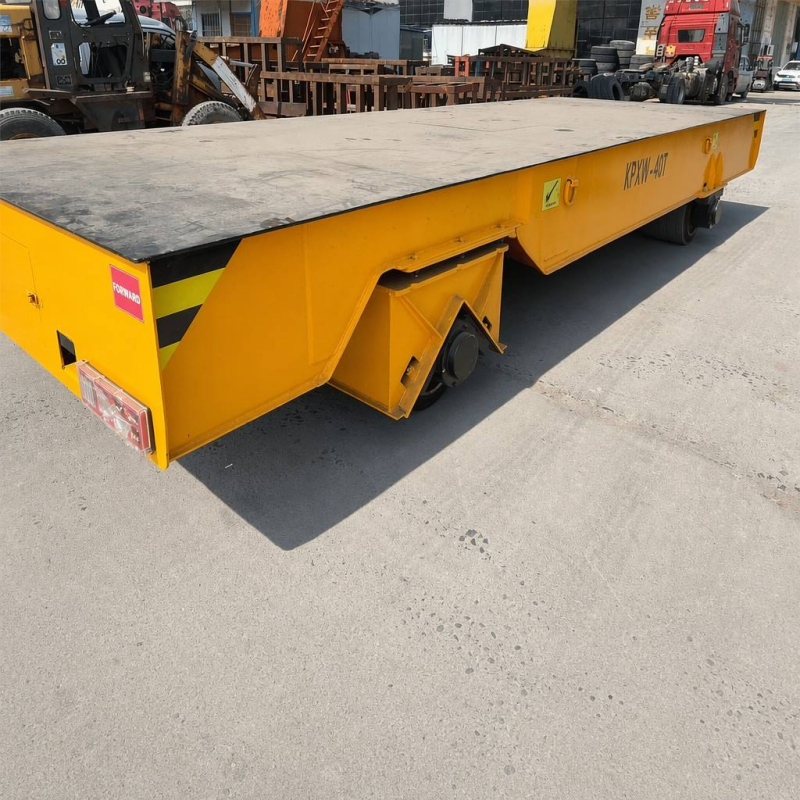

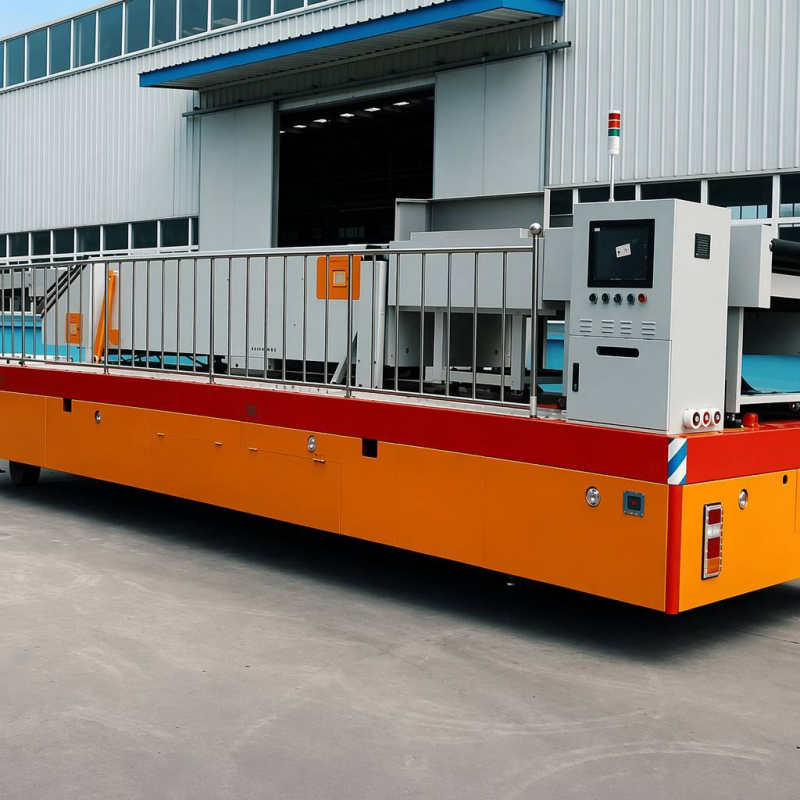

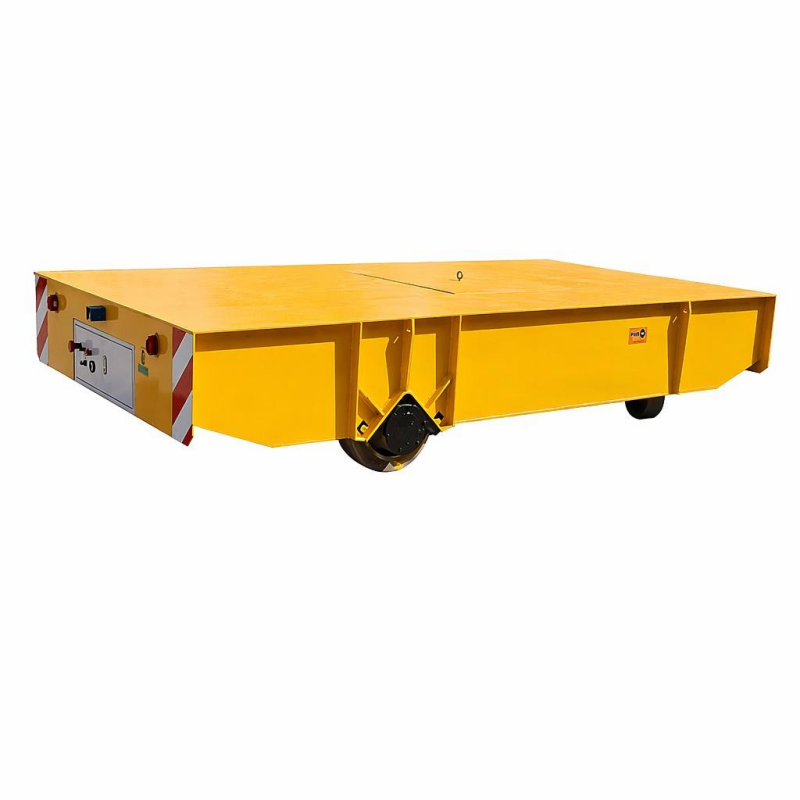

Overview of ZOKECRANE Trackless Transfer Cart
Engineered and manufactured by Henan Zoke Crane Co., Ltd., ZOKECRANE trackless transfer carts feature high-strength box-girder steel frames, heavy-duty polyurethane rubber wheels, and dual-motor electric steering drive systems. Powered by long-lasting maintenance-free batteries, our steerable transfer carts offer 360-degree omnidirectional maneuvering, customizable deck sizes, and load capacities ranging from 1 ton to over 150 tons, providing seamless, rail-free material transport across modern industrial facilities.
Key Technical Specifications & Parameters
| Technical Parameter | Trackless Transfer Cart Specification |
|---|---|
| Equipment Type | Trackless Transfer Cart / Steerable Electric Transfer Cart |
| Load Capacity (SWL) | 1 Ton to 150+ Tons (Custom engineered capacities available) |
| Power Supply System | High-Capacity Maintenance-Free Lead-Acid or Lithium Battery Pack |
| Wheel Type | High-grade Polyurethane (PU) Coated Rubber Wheels / Solid Rubber Tires |
| Steering System | Dual-Motor Differential Steering / Hydraulic Steering (360° In-Situ Rotation) |
| Running Speed | 0 to 20 m/min (Stepless speed control via VFD drive) |
| Control Mode | Wireless Remote Controller & Handheld Pendant Line |
| Safety Mechanisms | Laser obstacle avoidance sensors, touch safety edges, sound & light alarms, emergency stop |
| Certifications & Standards | ISO 9001 Quality System, CE Certified, SGS Verified |
Core Product Advantages & Features
- Zero Track Dependency & Unlimited Flexibility: Operates directly on epoxy-coated factory floors, concrete roads, and outdoor asphalt yards without expensive rail track installation or floor modification.
- 360-Degree Omnidirectional Steering: Dual-motor differential drive control enables tight turning radiuses, diagonal movement, crab steering, and 360-degree in-situ rotation within restricted workshop spaces.
- Floor Protection & High Traction: Heavy-duty polyurethane rubber wheels distribute high wheel loads evenly, protecting epoxy factory floors from scratching or damage during heavy transport operations.
- Intelligent Safety Radar Protection: Equipped with front and rear laser distance sensors that automatically slow down and stop the cart upon detecting personnel, obstacles, or walls.
Industrial Applications of Trackless Transfer Carts
ZOKECRANE trackless transfer carts deliver agile, cable-free, and rail-free material transport across diverse industrial sectors worldwide:
1. Die & Mold Handling in Press Shops
Safely transports massive automotive stamping dies and plastic injection molds between storage racks, maintenance bays, and press machines.
2. Wind Power & Heavy Machinery Assembly
Transports wind turbine hubs, tower flanges, heavy diesel engines, and large gearboxes across assembly lines and testing facilities.
3. Transformer & Electrical Equipment Manufacturing
Used to move high-voltage electrical transformers, coils, and heavy power distribution cabinets between processing workshops.
4. Precast Concrete & Structural Steel Yards
Efficiently moves precast concrete beams, bridge segments, structural steel trusses, and fabricated vessels between indoor bays and outdoor staging yards.
Frequently Asked Questions (Product FAQs)
What floor surfaces are required for operating a trackless transfer cart?
ZOKECRANE trackless transfer carts operate effectively on hardened concrete floors, epoxy-coated workshop surfaces, smooth asphalt roads, and steel plate decking. The floor should be relatively flat without steep slopes (typically less than 3% gradient) or deep ruts.
How does a trackless transfer cart achieve 360-degree rotation?
Our trackless carts utilize independent dual-motor differential drive systems or hydraulic wheel steering. By driving the left and right wheel sets in opposite directions at controlled speeds, the cart can rotate 360 degrees on the spot within its own length.
How long does the battery last on a single charge?
Equipped with high-capacity maintenance-free battery packs, a fully charged cart typically supports 6 to 8 hours of continuous heavy-duty operation. Fast-charging technology and swap-out battery pack options are available for 24/7 continuous multi-shift operations.
What is the difference between polyurethane wheels and standard rubber tires?
Polyurethane (PU) wheels offer superior load-bearing capacity, high wear resistance, low rolling resistance, and zero oil staining, making them ideal for indoor smooth concrete and epoxy floors. Solid rubber tires are recommended for rough outdoor concrete or asphalt grounds requiring better shock absorption.
Export & Logistics FAQs for International Buyers
Which international markets has ZOKECRANE supplied trackless transfer carts to?
ZOKECRANE material handling vehicles are operating globally, serving industrial clients in Russia, Uzbekistan, the Philippines, Bangladesh, Australia, Qatar, Tanzania, Singapore, Saudi Arabia, Brazil, Nigeria, and many other international markets.
How are trackless transfer carts packaged for ocean freight shipment?
Transfer cart bodies and heavy structural components undergo anti-corrosion surface treatment and protective wrapping. Battery packs, electric control boxes, chargers, and wireless remote controllers are vacuum-sealed in moisture-proof plastic film and packed in export-standard fumigated wooden crates suitable for sea freight.
What international quality and safety certifications accompany ZOKECRANE equipment?
All ZOKECRANE trackless transfer carts are manufactured under strict ISO 9001 Quality Management System standards, hold European CE safety compliance certificates, and are backed by SGS third-party quality inspection reports.
What commercial shipping terms and manufacturing lead times do you offer?
We provide standard international trading terms including FOB, CIF, CFR, DDU, and DDP. Depending on load tonnage capacity, table dimensions, and custom steering features, standard manufacturing lead times range from 25 to 40 business days.
How does ZOKECRANE support overseas technical commissioning and warranty service?
We provide comprehensive operation manuals, detailed electrical wiring schematics, and step-by-step video commissioning tutorials. Our experienced technical support team offers 24/7 remote video guidance, rapid spare parts dispatch, and on-site engineering support for commissioning and local operator training upon customer request.
