Product Introduction
A Manual Portable Gantry Crane is a lightweight, movable, and practical lifting system designed for material handling, equipment maintenance, workshop lifting, mold installation, assembly work, and small to medium load movement. It usually consists of a main beam, supporting legs, base frame, manual trolley, manual chain hoist, wheels or casters, connecting bolts, and structural components. The crane can be moved manually within a workshop or working area, making it a flexible lifting solution for locations where a fixed overhead crane is not suitable or not necessary.
Compared with fixed overhead cranes and large gantry cranes, a manual portable gantry crane has a simpler structure, lower installation requirements, easier movement, and more flexible use. It is especially suitable for repair workshops, warehouses, small factories, maintenance areas, assembly stations, loading areas, laboratories, equipment rooms, and temporary lifting locations. With the help of a manual chain hoist and manual trolley, operators can lift, lower, and horizontally move loads without relying on electric power.
ZOKECRANE manual portable gantry cranes are designed and supplied by Henan Zoke Crane Co., Ltd., a professional lifting equipment manufacturer specializing in overhead cranes, gantry cranes, electric hoists, crane trolley mechanisms, and customized lifting solutions. Our manufacturing base is located in Changyuan, Henan Province, one of China’s major crane production centers. With extensive experience in crane engineering, design, manufacturing, and quality control, ZOKECRANE provides practical and reliable portable gantry crane solutions for domestic and international customers.
The manual portable gantry crane can be supplied with different configurations according to customer requirements, including fixed-height portable gantry crane, adjustable-height portable gantry crane, portable steel gantry crane, portable aluminum gantry crane, manual chain hoist gantry crane, manual trolley gantry crane, and customized mobile gantry lifting system. According to the lifting capacity, span, lifting height, wheel type, hoist type, and working environment, ZOKECRANE can provide suitable designs for workshops, warehouses, machinery repair, mold handling, assembly lines, and other industrial applications.
Because the crane does not require a complex runway system or permanent building structure, it can help customers reduce installation cost and improve lifting flexibility. It is a good choice for facilities that require occasional lifting, temporary maintenance, limited working space, or movable lifting points. The crane can be disassembled for transportation and reassembled at the working site, which is also convenient for export shipment and overseas installation.
With ISO, CE, and SGS certifications, ZOKECRANE continuously improves product structure, manufacturing processes, and quality control standards to meet the needs of international markets. We are committed to providing reliable crane equipment, professional technical support, customized lifting solutions, and practical export services for global customers.
Main Features of ZOKECRANE Manual Portable Gantry Crane
- Portable and movable structure for flexible lifting operations
- Manual operation without requiring electric power
- Suitable for workshops, warehouses, maintenance areas, and temporary lifting sites
- Can be equipped with manual chain hoist and manual trolley
- Simple structure, easy operation, and convenient maintenance
- Lower installation requirements compared with fixed overhead cranes
- Can be moved by casters or wheels on flat ground
- Adjustable height and adjustable span options available
- Steel structure or aluminum structure available according to project needs
- Bolted connection design for easier assembly and disassembly
- Suitable for indoor use and some outdoor temporary applications
- Customizable lifting capacity, span, height, and wheel type
- Can be used for equipment repair, mold handling, assembly, and loading work
- Compact design suitable for limited working space
- Export packaging and complete technical documents available
- ISO, CE, and SGS certifications available
Main Components
A manual portable gantry crane usually includes the gantry frame, lifting mechanism, traveling parts, connection parts, and safety components. The following table shows common components and their functions.
| Component | Description | Function |
|---|---|---|
| Main Beam | The horizontal beam at the top of the gantry crane. | Supports the trolley and hoist and bears the lifting load. |
| Supporting Legs | Vertical or A-frame support structures on both sides of the crane. | Transfer the load from the main beam to the base frame and ground. |
| Base Frame | Bottom structure connected with wheels or casters. | Provides stability and supports crane movement. |
| Manual Trolley | A push trolley or geared trolley mounted on the main beam. | Allows the hoist and load to move horizontally along the beam. |
| Manual Chain Hoist | Hand-operated lifting device suspended from the trolley. | Lifts and lowers the load manually by chain operation. |

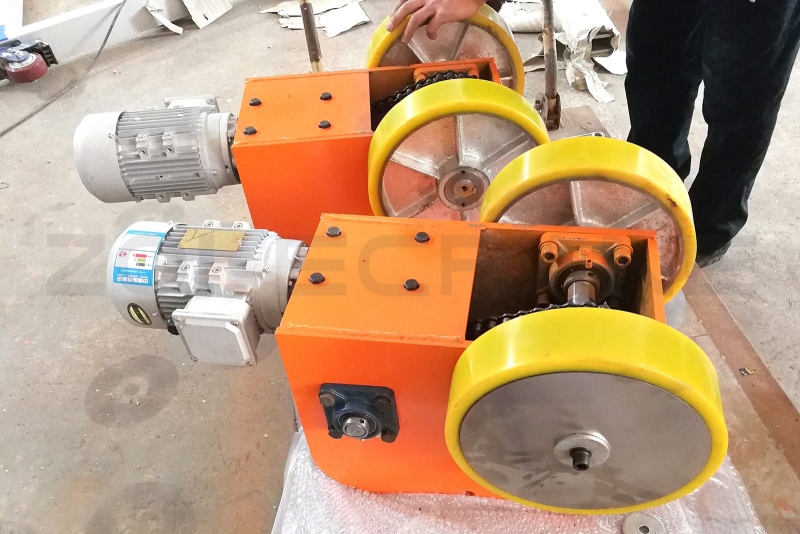

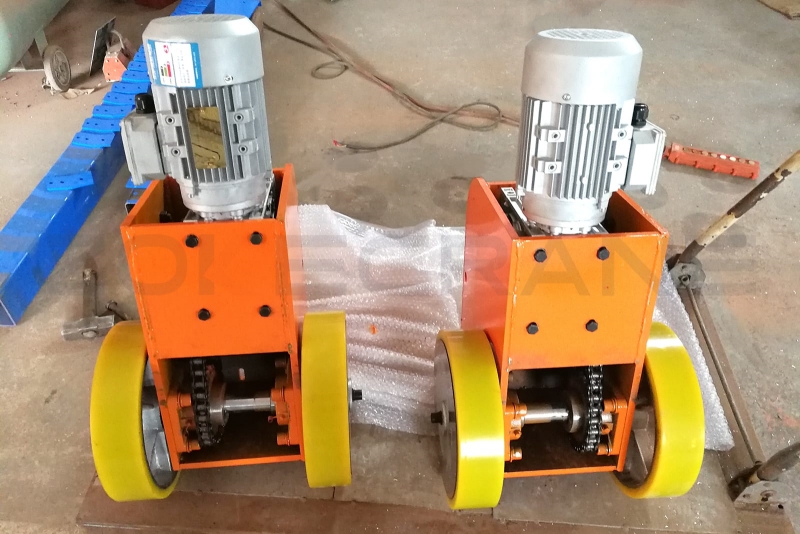

| Wheels or Casters | Movable wheels installed at the bottom of the gantry frame. | Allow the crane to be moved manually on flat and solid ground. |
| Brake Casters | Optional casters with braking function. | Help keep the gantry crane stable when lifting or positioning loads. |
| Connecting Bolts | Bolts and fasteners used to connect crane structures. | Allow assembly, disassembly, transportation, and maintenance. |
| Height Adjustment Device | Optional pin-hole or mechanical adjustment structure. | Allows the lifting height to be adjusted according to working conditions. |
| End Stopper | Stopper installed at the end of the main beam. | Helps prevent the trolley from moving beyond the beam end. |
| Safety Latch | Latch installed on the hook of the manual chain hoist. | Helps prevent the load from accidentally slipping off the hook. |
Common Types of Manual Portable Gantry Crane
ZOKECRANE can provide different types of manual portable gantry cranes according to lifting capacity, material, structure, height adjustment, wheel type, hoist type, and application requirements.
| Type | Description | Typical Application |
|---|---|---|
| Standard Manual Portable Gantry Crane | A general movable gantry crane operated with manual trolley and manual chain hoist. | Workshop lifting, maintenance, warehouse handling, small factory use |
| Adjustable Manual Portable Gantry Crane | Height-adjustable structure for different working conditions and lifting requirements. | Maintenance areas, assembly stations, equipment repair, multi-purpose lifting |
| Portable A-Frame Gantry Crane | A-frame leg structure with stable support and convenient movement. | Repair workshops, garages, machine shops, temporary lifting points |
| Portable Steel Gantry Crane | Steel structure gantry crane with higher strength and durability. | Industrial workshops, mold handling, machinery maintenance, heavier loads |
| Portable Aluminum Gantry Crane | Lightweight aluminum structure for easier manual movement and handling. | Light-duty lifting, clean areas, laboratories, mobile maintenance work |
| Manual Chain Hoist Gantry Crane | Equipped with manual chain hoist for lifting and lowering loads. | No-power areas, occasional lifting, repair and installation work |
| Manual Trolley Gantry Crane | Equipped with push trolley or geared trolley for manual horizontal movement. | Load positioning, assembly line support, warehouse handling |
| Customized Manual Mobile Gantry Crane | Designed according to special lifting capacity, span, height, wheel type, or site requirements. | Non-standard workshops, special maintenance tasks, customized lifting projects |
Typical Technical Parameters
The following technical parameters are for general reference. ZOKECRANE can customize manual portable gantry cranes according to different working conditions and project requirements.
| Item | Specification |
|---|---|
| Product Name | Manual Portable Gantry Crane |
| Alternative Name | Portable Manual Gantry Crane / Manual Mobile Gantry Crane / Portable Gantry Crane with Manual Chain Hoist |
| Structure Type | Portable gantry frame / A-frame gantry crane / adjustable gantry crane |
| Lifting Capacity | 0.5 ton, 1 ton, 2 ton, 3 ton, 5 ton or customized |
| Span | Customized according to working area |
| Lifting Height | Customized according to site requirement |
| Height Adjustment | Fixed height or adjustable height |
| Hoist Type | Manual chain hoist / lever hoist / electric hoist optional |
| Trolley Type | Manual push trolley / geared trolley / electric trolley optional |
| Material | Steel structure / aluminum structure |
| Traveling Method | Manual movement by wheels or casters |
| Wheel Type | Universal caster / brake caster / polyurethane wheel / rubber wheel / steel wheel |
| Control Method | Manual operation |
| Power Supply | Not required for manual type |
| Installation | Floor-mounted movable structure, no fixed runway required |
| Application | Lifting, maintenance, assembly, repair, loading, unloading, equipment positioning |
| Certification | ISO, CE, SGS available |
Applications of Manual Portable Gantry Crane
Manual portable gantry cranes are widely used in working environments where loads need to be lifted and moved flexibly without installing fixed crane runway systems.
Workshops and Small Factories
Manual portable gantry cranes are commonly used in small workshops and factories for lifting mechanical parts, tools, motors, molds, workpieces, and production components. They are especially suitable for areas where fixed overhead cranes are not installed.
Equipment Maintenance and Repair
In equipment maintenance areas, the crane can help lift and position motors, pumps, gearboxes, bearings, valves, and machinery components. Since it can be moved to different working points, it is practical for repair and maintenance operations.
Warehouses and Storage Areas
The crane can be used in warehouses to lift and move goods, spare parts, heavy packages, pallets, and machinery parts. It is suitable for occasional lifting tasks and flexible material handling.
Mold Handling and Assembly Work
Manual portable gantry cranes are often used for mold installation, die handling, assembly line support, and component positioning. The manual chain hoist allows operators to lift and position loads carefully.
Loading and Unloading
For small-scale loading and unloading operations, the portable gantry crane can assist with lifting goods from vehicles, pallets, or workbenches. It is useful in workshops, garages, repair shops, and temporary storage areas.
Laboratories and Testing Facilities
Light-duty aluminum or compact portable gantry cranes can be used in laboratories, testing rooms, clean workshops, and technical facilities for lifting instruments, test equipment, and components.

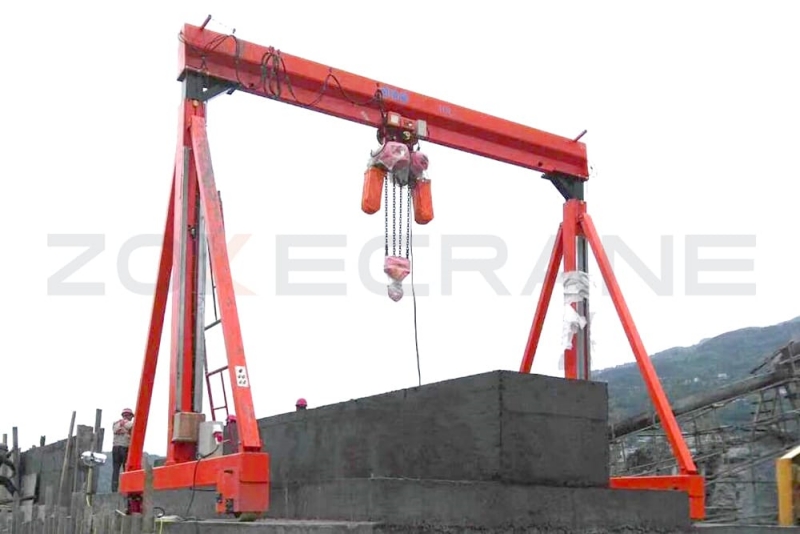

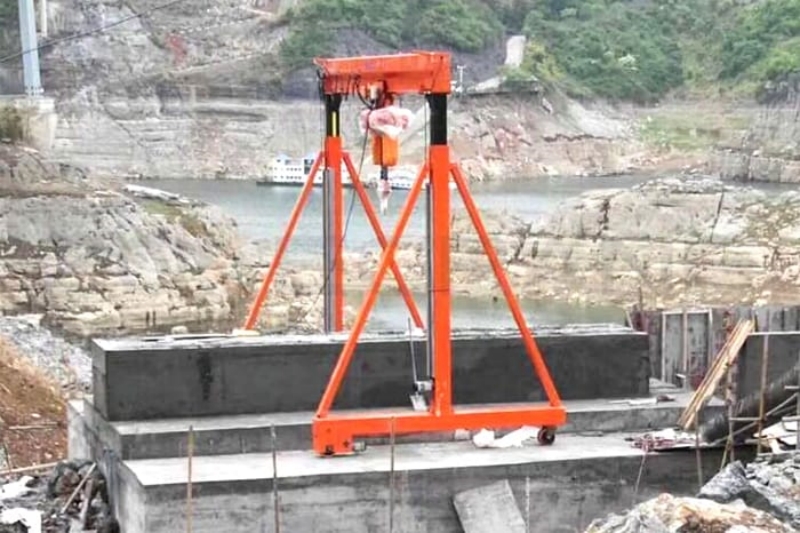

Construction and Temporary Work Sites
Manual portable gantry cranes can be used in temporary work sites for equipment installation, pipe handling, mechanical assembly, and short-term lifting operations, especially where electric power or fixed lifting equipment is not available.
Remote or No-Power Working Areas
Because manual portable gantry cranes can work with a manual chain hoist, they are suitable for locations without a stable power supply or where electric lifting equipment is not necessary.
Why Choose ZOKECRANE Manual Portable Gantry Crane?
Professional Crane Manufacturer
ZOKECRANE is operated by Henan Zoke Crane Co., Ltd., a professional lifting equipment manufacturer specializing in overhead cranes, gantry cranes, electric hoists, crane trolley mechanisms, and customized lifting solutions. Our manufacturing base is located in Changyuan, Henan Province, one of China’s major crane production centers.
Practical and Flexible Lifting Solution
ZOKECRANE manual portable gantry cranes are designed for practical lifting applications where flexibility, mobility, and easy operation are important. They can help users improve lifting efficiency without investing in permanent crane runway systems.
Customizable Design
ZOKECRANE can customize manual portable gantry cranes according to lifting capacity, span, lifting height, adjustable height range, wheel type, beam type, hoist type, trolley type, working environment, and customer project requirements.
Reliable Structure and Quality Control
ZOKECRANE focuses on structural design, welding quality, material selection, wheel assembly, hoist matching, surface treatment, inspection, packaging, and delivery control. Our quality management system and ISO, CE, and SGS certifications support our commitment to reliable product quality.
Easy Assembly and Transportation
The crane can be designed with bolted connections, making it convenient for disassembly, packaging, export shipment, and site assembly. This is especially important for overseas customers who need economical transportation and easy installation.
International Export Experience
ZOKECRANE products have been supplied to customers in Russia, Uzbekistan, the Philippines, Bangladesh, Australia, Qatar, Tanzania, Singapore, Saudi Arabia, Brazil, Nigeria, and many other countries and regions. We understand export packaging, container loading, customs documents, and international project communication.
Professional Technical Support
ZOKECRANE can provide product selection support, technical drawings, installation guidance, operation manuals, maintenance manuals, packing lists, inspection documents, spare parts suggestions, and remote technical assistance for global customers.
Frequently Asked Questions About Manual Portable Gantry Crane
1. What is a manual portable gantry crane?
A manual portable gantry crane is a movable lifting frame operated manually. It is usually equipped with a manual trolley and manual chain hoist for lifting, lowering, and moving loads along the beam. It is suitable for workshops, warehouses, maintenance areas, and temporary lifting locations.
2. What is the difference between a manual portable gantry crane and an electric gantry crane?
A manual portable gantry crane is operated by hand and usually does not require electric power. It is suitable for light to medium loads, occasional lifting, and flexible movement. An electric gantry crane uses electric hoists and motorized traveling systems, making it more suitable for frequent operation, higher efficiency, and heavier lifting applications.
3. Can the height of the gantry crane be adjusted?
Yes. ZOKECRANE can provide fixed-height and adjustable-height manual portable gantry cranes. Adjustable-height designs are suitable for different lifting tasks, different load heights, and different working areas.
4. Can the span be customized?
Yes. The span can be customized according to the working area, load size, lifting height, workshop space, and customer requirements.
5. What lifting capacity can ZOKECRANE provide?
Common lifting capacities include 0.5 ton, 1 ton, 2 ton, 3 ton, and 5 ton. Other capacities can be customized according to project requirements.
6. Can the crane be moved under load?
In general, moving a portable gantry crane under load should be handled carefully and only according to the approved design and safety instructions. For most applications, the load should be lowered and secured before moving the crane. Customers should follow the operation manual and site safety regulations.
7. What type of hoist can be used?
A manual portable gantry crane can be equipped with a manual chain hoist, lever hoist, electric chain hoist, or wire rope hoist, depending on lifting capacity, lifting height, operation frequency, available power supply, and customer requirements.
8. What wheel types are available?
Common wheel options include universal casters, brake casters, polyurethane wheels, rubber wheels, steel wheels, and customized wheels. The suitable wheel type depends on ground condition, load capacity, movement frequency, and working environment.
9. Is installation complicated?
No. Manual portable gantry cranes usually have a simple structure and bolted connections. They can be assembled on site according to installation drawings and instructions. For larger models, lifting tools may be required during assembly.
10. What information is needed for quotation?
To provide a suitable manual portable gantry crane solution, please provide:
- Lifting capacity
- Span
- Lifting height
- Total height limitation, if any
- Fixed height or adjustable height
- Manual chain hoist or electric hoist requirement
- Manual trolley or electric trolley requirement
- Wheel type and ground condition
- Indoor or outdoor use
- Working frequency
- Load type and load dimensions
- Destination country or port
- Power supply, if electric hoist is required
- Special safety or certification requirements
- Whether disassembly and export packaging are required
11. Can ZOKECRANE provide aluminum portable gantry cranes?
Yes. ZOKECRANE can provide aluminum portable gantry crane solutions according to customer requirements. Aluminum gantry cranes are lighter and easier to move, while steel gantry cranes are more suitable for higher strength and heavier industrial applications.
12. Can ZOKECRANE provide spare parts?
Yes. ZOKECRANE can provide spare parts such as manual chain hoists, manual trolleys, wheels, casters, brake casters, bolts, pins, hooks, chains, bearings, end stoppers, and other customized accessories.
Export and Logistics FAQ for ZOKECRANE Manual Portable Gantry Crane
1. Can ZOKECRANE export manual portable gantry cranes overseas?
Yes. ZOKECRANE has experience in exporting crane equipment and lifting components to international markets. Our products have been supplied to customers in Russia, Uzbekistan, the Philippines, Bangladesh, Australia, Qatar, Tanzania, Singapore, Saudi Arabia, Brazil, Nigeria, and many other countries and regions.
2. How is the manual portable gantry crane packed for export?
Manual portable gantry cranes are usually packed in disassembled condition to reduce package size and shipping cost. Main beams, legs, base frames, wheels, hoists, trolleys, bolts, and accessories can be packed with export-standard wooden cases, steel frames, pallets, waterproof wrapping, or customized packaging according to customer requirements.
3. Can the crane be shipped by sea?
Yes. Manual portable gantry cranes can be shipped by sea freight, including LCL shipment and FCL shipment. Because the crane can be disassembled, it is suitable for economical container loading and international shipping.
4. Can the crane be shipped by air or courier?
Small components, spare parts, manual chain hoists, manual trolleys, casters, and urgent replacement parts can be shipped by air freight or international courier. Complete gantry crane frames are usually shipped by sea freight because of package length and weight.
5. Can the crane be shipped together with other crane products?
Yes. If the manual portable gantry crane is ordered together with electric hoists, overhead crane parts, gantry crane components, end carriages, wheels, control cabinets, or spare parts, ZOKECRANE can arrange combined packaging and container loading.
6. What shipping methods are available?
Common shipping methods include:
- Sea freight
- LCL shipment
- FCL shipment
- Air freight
- International courier
- Land transportation
- Railway transportation
- Multimodal transportation
The suitable shipping method depends on crane size, package dimensions, gross weight, destination country, delivery time requirement, trade terms, and customer budget.
7. Can ZOKECRANE assist with international logistics?
Yes. ZOKECRANE can assist with international logistics arrangements based on agreed trade terms. Customers can also use their own appointed freight forwarder.
8. What export documents can ZOKECRANE provide?
ZOKECRANE can usually provide the following export and technical documents:
- Commercial invoice
- Packing list
- Bill of lading or air waybill
- Certificate of origin, if required
- Product certificate
- Quality inspection report, if required
- CE-related documents, if required
- SGS-related documents, if required
- Technical drawing
- Installation drawing
- Operation manual
- Maintenance manual
- Spare parts list
- Packing photo or loading photo, if required
- Test report, if required
The actual document list can be prepared according to customer requirements, destination country customs clearance requirements, trade terms, and project requirements.
9. What should customers check after receiving the crane?
After receiving the manual portable gantry crane, customers should check:
- Package condition
- Shipping marks and packing list
- Main beam
- Supporting legs
- Base frame
- Wheels or casters
- Manual chain hoist
- Manual trolley
- Connecting bolts and pins
- End stoppers
- Brake caster function, if included
- Hook and safety latch
- Chain condition
- Surface coating
- Nameplate and product markings
- Technical documents and manuals
- Spare parts, if included
If any damage, shortage, or inconsistency is found, please contact ZOKECRANE promptly with photos, packing list, and shipping documents.
10. Can spare parts be shipped separately?
Yes. Spare parts such as manual chain hoists, manual trolleys, wheels, casters, brake casters, bolts, pins, hooks, chains, bearings, end stoppers, and customized accessories can be shipped separately by courier, air freight, sea freight, or other suitable shipping methods.
11. Can the packaging be customized?
Yes. ZOKECRANE can customize packaging according to customer instructions, shipping method, destination country requirements, container loading plan, and project requirements. Special labels, waterproof packaging, wooden cases, steel frames, pallets, and shipping marks can be arranged before shipment.
12. How long does production and delivery take?
Production and delivery time depends on lifting capacity, span, lifting height, structure type, material, height adjustment design, wheel type, hoist type, trolley type, order quantity, customization level, production schedule, and shipping route. After technical requirements, drawings, commercial terms, and payment details are confirmed, ZOKECRANE can provide a production and delivery plan.
