Overview of ZOKECRANE Wire Rope Guides

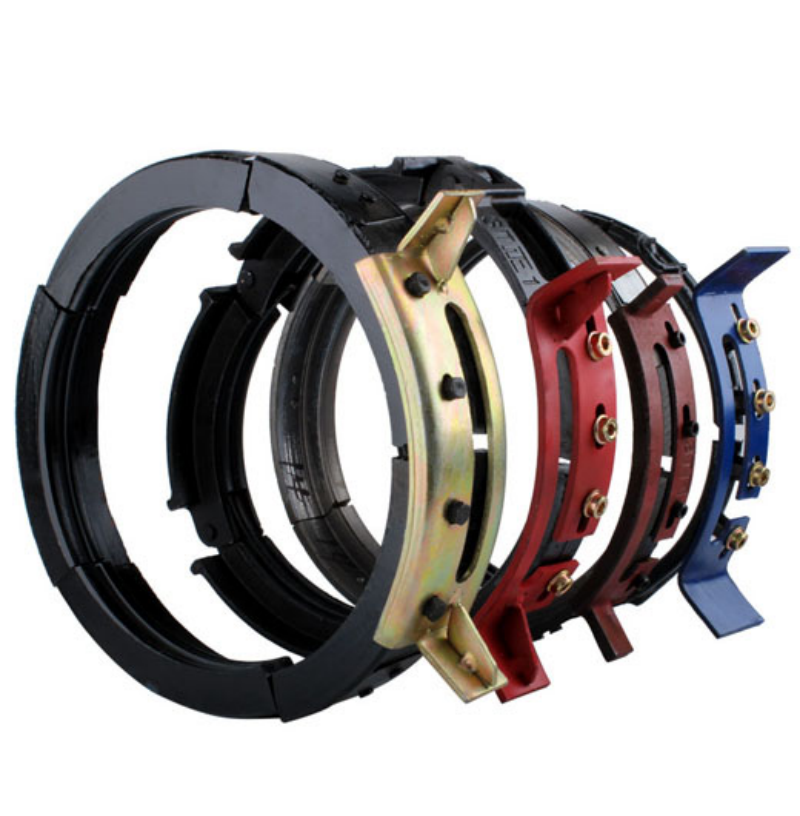

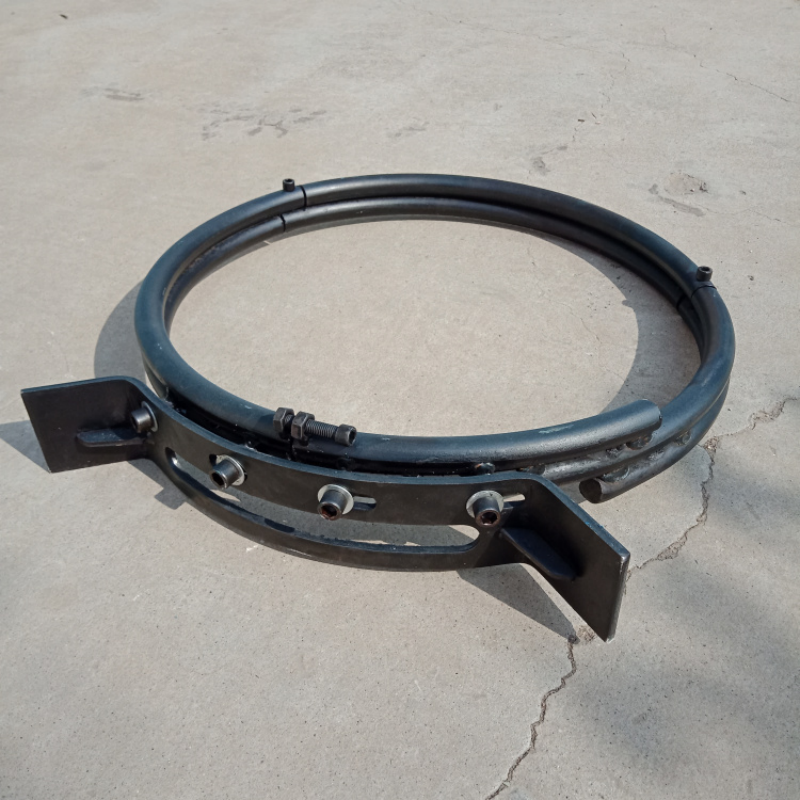

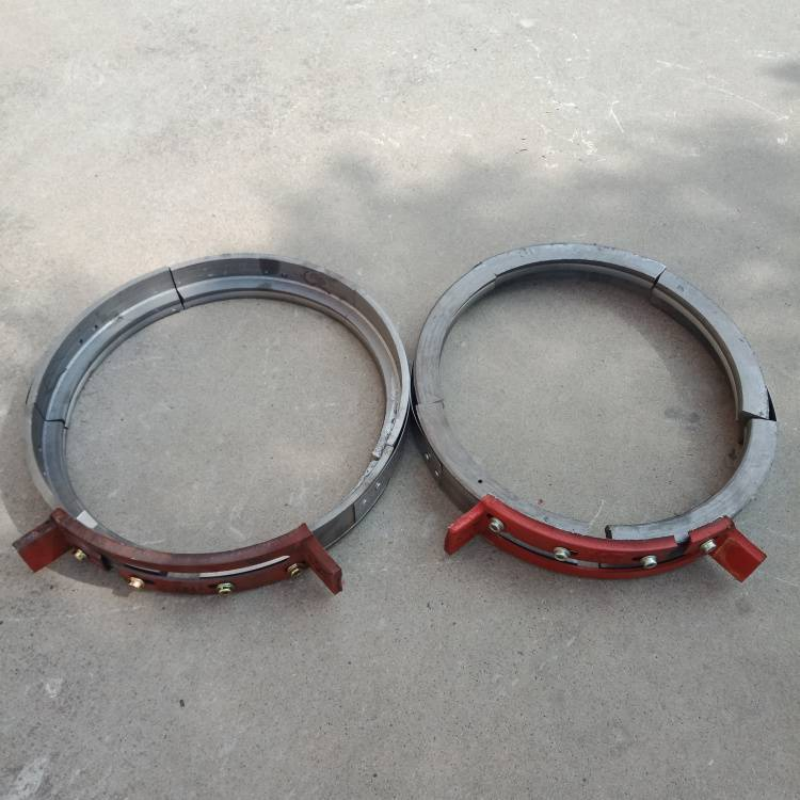

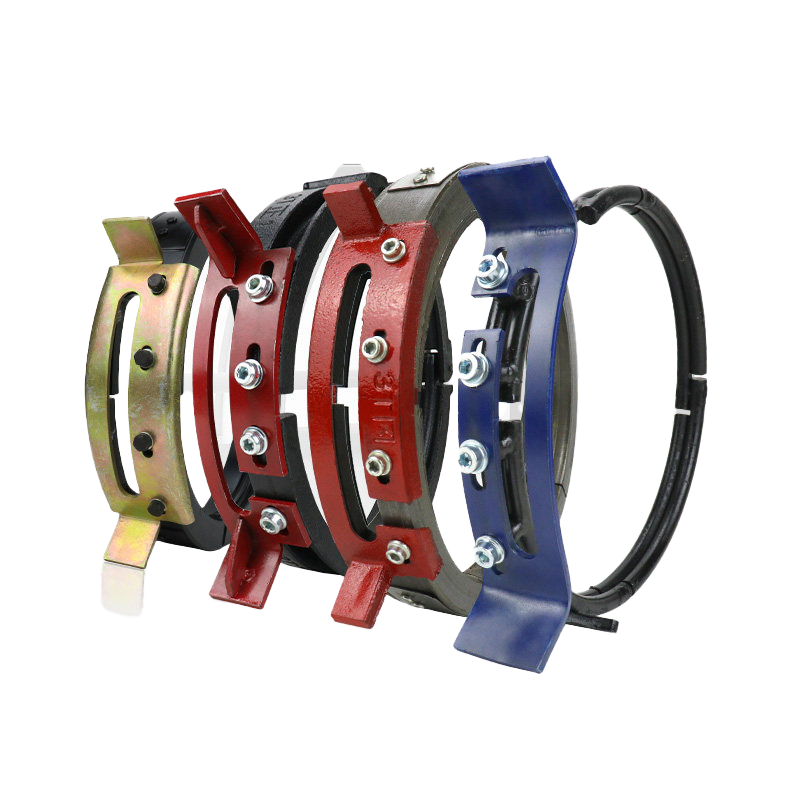

Manufactured by Henan Zoke Crane Co., Ltd., ZOKECRANE wire rope guides are fabricated using high-strength ductile iron (nodular cast iron) or reinforced engineering plastics (nylon). Built to fit standard CD, MD, and European-type wire rope electric hoists, our rope guides feature a segmented ring structure with heavy-duty guide nuts and tension springs for easy installation, smooth alignment, and reliable performance across various lifting capacities from 0.5 tons to 32+ tons.
Key Technical Specifications & Parameters
| Technical Parameter | Wire Rope Guide Specification |
|---|---|
| Product Type | Segmented Circular Wire Rope Guide Ring for Electric Hoists |
| Applicable Hoist Capacity | 0.5 Ton, 1 Ton, 2 Tons, 3 Tons, 5 Tons, 10 Tons, 16 Tons, 20 Tons, 32 Tons |
| Matching Hoist Models | CD1 / MD1 electric hoists, European-type wire rope hoists, customized winch drums |
| Manufacturing Material | QT450-10 High-strength ductile cast iron / Reinforced nylon alloy / Cast steel |
| Matching Wire Rope Diameter | Ø4.8 mm to Ø32+ mm (Precision inner groove pitch profiling) |
| Structure Features | Modular multi-segment split ring design, tension spring connecting bolts, steel guide nut |
| Surface Protection | Anti-corrosion primer coating, durable safety yellow/blue finish paint |
| Certifications & Standards | ISO 9001 Quality System, CE Certified, SGS Verified, JB/T 9008 Compliant |
Core Product Advantages & Engineering Features
- Prevents Rope Tangling & Slack Jams: Accurately guides the wire rope into the drum grooves, preventing rope overlapping, disorder, and structural damage caused by loose ropes.
- High Tensile Ductile Iron Construction: Built from QT450 nodular cast iron for superior toughness, high wear resistance, and high impact resistance under side-pulling forces.
- Modular Split-Ring Easy Installation: Designed as a multi-segment split ring that allows quick replacement and maintenance on existing hoist drums without dismantling the entire crane hoist assembly.
- Extends Wire Rope & Drum Lifespan: Smooth inner groove contours minimize friction on wire rope strands and drum grooves, significantly lowering spare parts consumption.
Industrial Applications of Wire Rope Guides
ZOKECRANE wire rope guides are essential protective accessories used across various hoisting machinery and industrial sectors globally:
1. Wire Rope Electric Hoists
Installed directly on single-speed (CD1) and double-speed (MD1) wire rope hoists operating on single girder overhead cranes and monorails.
2. Workstation & Jib Cranes
Ensures smooth rope winding for wall-mounted jib cranes, pillar jib cranes, and light workstation lifting devices.
3. Gantry & Overhead Crane Trolley Hoists
Provides precise cable guiding for open winch trolleys and hoist units on outdoor gantry cranes and workshop double girder cranes.
4. Crane Maintenance & Spare Part Replacement
Functions as standard fast-wearing replacement parts for global crane repair projects and maintenance service providers.
Frequently Asked Questions (Product FAQs)
What is the main function of a wire rope guide on an electric hoist?
The primary function of a wire rope guide is to ensure the wire rope stays neatly aligned within the spiral grooves of the drum during hoisting and lowering. It prevents the rope from jumping out of the grooves, tangling, or overlapping, which could cause rope breakage or mechanical jamming.
What causes a wire rope guide to break or crack?
Rope guides are designed as protective safety components. The most common cause of damage is severe side-pulling (slant lifting), where the wire rope pulls diagonally against the guide ring, forcing the guide nut to strip or fracture. Operating within vertical lifting limits prolongs rope guide lifespan.
Are ZOKECRANE rope guides compatible with European-style hoists?
Yes. In addition to standard CD/MD series hoist rope guides, we manufacture low-noise nylon and high-strength alloy rope guides specifically engineered for FEM/ISO European-style wire rope hoists.
How do I select the correct replacement rope guide for my hoist?
To choose the correct model, you need to confirm the lifting capacity of your hoist (e.g., 3 Ton or 5 Ton), the hoist lifting height, the drum diameter, and the wire rope diameter. Our engineering team can assist you with exact model matching based on your original hoist nameplate.
Export & Logistics FAQs for International Buyers
Which international markets does ZOKECRANE export wire rope guides to?
ZOKECRANE crane accessories and hoist components are exported globally, supplying crane builders, spare parts distributors, and industrial plants in Russia, Uzbekistan, the Philippines, Bangladesh, Australia, Qatar, Tanzania, Singapore, Saudi Arabia, Brazil, Nigeria, and many other countries worldwide.
How are wire rope guides packaged for international shipping?
Individual rope guide rings are coated with anti-rust oil, wrapped in protective plastic film, and packed in heavy-duty reinforced cartons or vacuum-sealed in export-standard fumigated wooden cases to prevent moisture and impact damage during ocean transit.
What quality test reports and certifications accompany ZOKECRANE rope guides?
Every shipment is accompanied by complete quality documentation, including ISO 9001 compliance, European CE certificates, material composition inspection sheets, and SGS third-party verification upon request.
What shipping terms and delivery lead times do you offer for spare parts?
We support standard international commercial terms including FOB, CIF, CFR, DDU, and DDP. Standard CD/MD wire rope guide models (0.5T to 10T) are kept in large stock quantities with fast dispatch lead times of 3 to 7 business days; custom or European-type models take 10 to 15 business days.
Does ZOKECRANE supply bulk spare parts packages for crane distributors?
Yes. We provide consolidated container or LCL shipments containing mixed crane accessories—such as wire rope guides, hooks, sheaves, limit switches, and pendants—allowing international distributors to lower freight costs and stock essential replacement inventory.
