Grab Bucket Overhead Crane

Product Introduction

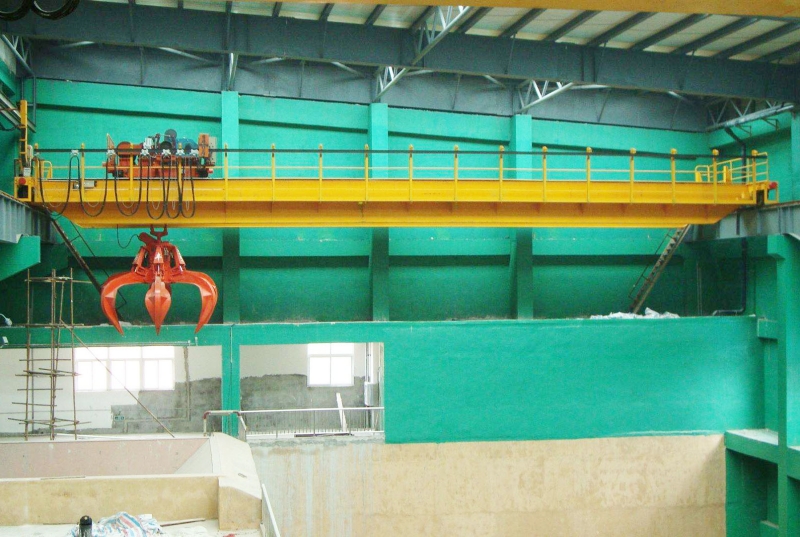

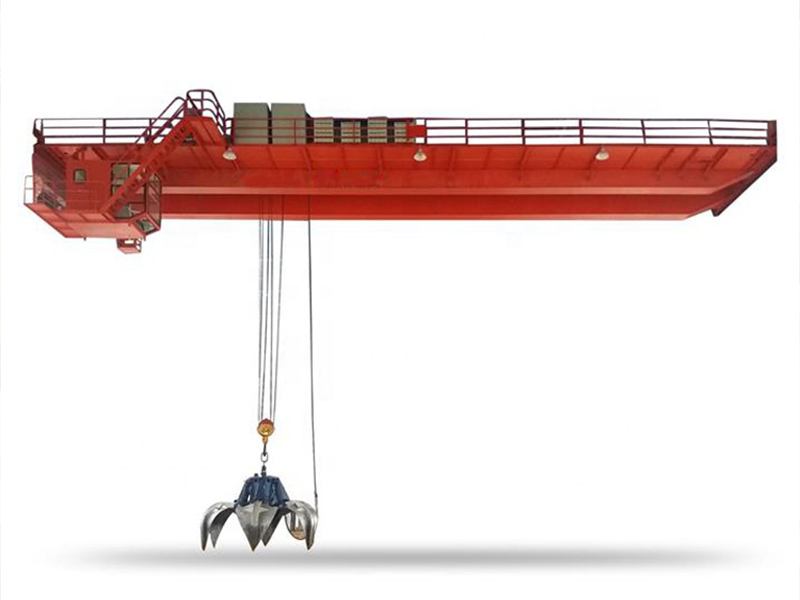

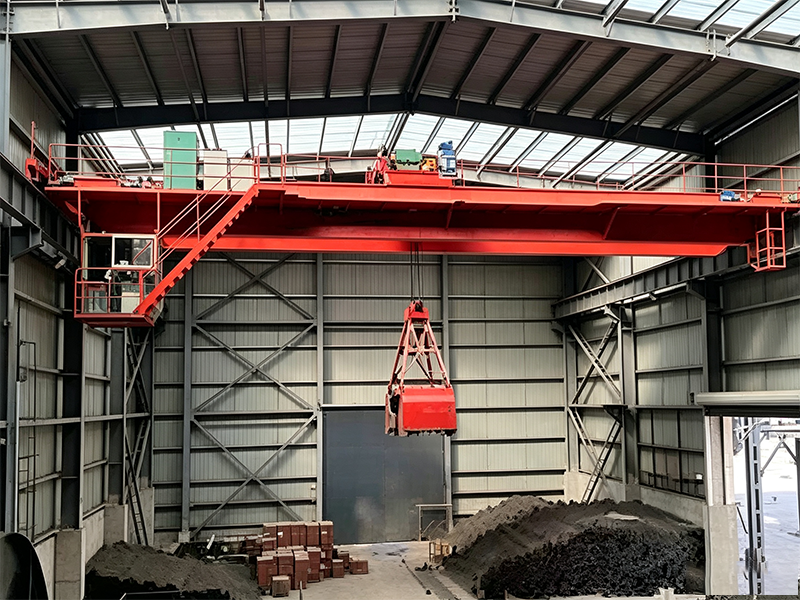

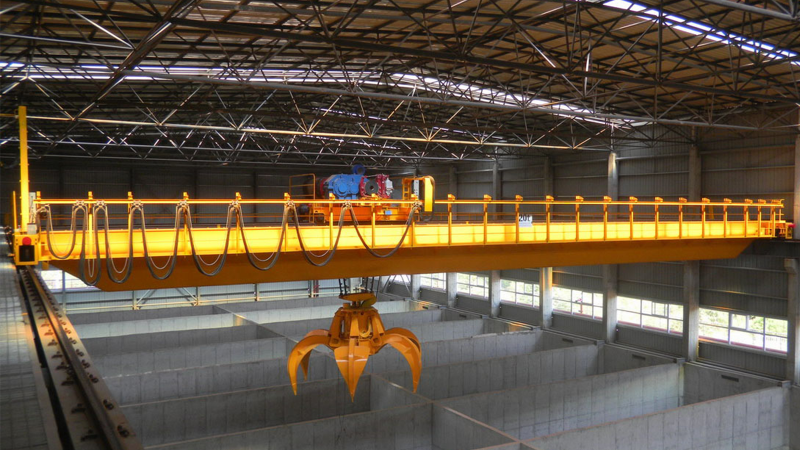

A Grab Bucket Overhead Crane is a special type of overhead crane equipped with a grab bucket for lifting, loading, unloading, and transferring bulk materials. It is widely used for handling materials such as coal, sand, gravel, ore, slag, limestone, fertilizer, grain, waste, and other loose or granular materials.

Unlike ordinary hook overhead cranes, a grab bucket overhead crane uses a grab bucket as the main lifting attachment. The grab can open and close to pick up bulk materials, making it highly suitable for material loading and unloading operations in warehouses, stockyards, workshops, power plants, ports, recycling stations, and industrial production lines.

ZOKECRANE grab bucket overhead cranes are designed and manufactured by Henan Zoke Crane Co., Ltd., a professional lifting equipment manufacturer specializing in overhead cranes and gantry cranes. Our manufacturing base is located in Changyuan, Henan Province, one of China’s major crane production centers. With extensive experience in crane engineering, design, and manufacturing, ZOKECRANE provides efficient and customized bulk material handling solutions for international customers.

The crane is usually designed with a strong bridge structure, reliable lifting mechanism, trolley traveling mechanism, crane traveling mechanism, grab bucket system, electrical control system, and safety protection devices. According to different working conditions, ZOKECRANE can provide different types of grab buckets and crane configurations to meet customer requirements.

A grab bucket overhead crane can improve material handling efficiency, reduce manual labor, increase production capacity, and support continuous operation in demanding industrial environments. It is especially suitable for applications where large volumes of loose materials need to be loaded, unloaded, stacked, transferred, or fed into production equipment.

Main Features of ZOKECRANE Grab Bucket Overhead Crane

• Designed for bulk material lifting, loading, unloading, and transfer
• Suitable for coal, sand, ore, gravel, slag, waste, grain, fertilizer, and other loose materials
• Strong bridge structure for heavy-duty operation
• Reliable grab bucket opening and closing mechanism
• Single rope, double rope, four-rope, electric hydraulic, or motor grab options available
• High working efficiency for continuous material handling
• Stable lifting and traveling performance
• Customized lifting capacity, span, lifting height, and working duty
• Suitable for indoor and outdoor working environments
• Cabin control, remote control, or pendant control available
• Variable frequency control available for smoother operation
• Multiple safety protection devices for reliable operation
• Durable structure and easy maintenance
• Customized grab bucket volume according to material density
• Export packaging and international shipping support available

Common Types of Grab Bucket Overhead Crane

Different materials and working environments require different crane and grab configurations. ZOKECRANE can provide customized grab bucket overhead cranes according to project needs.

Typical Technical Parameters

The following technical parameters are for general reference. ZOKECRANE can customize the grab bucket overhead crane according to lifting capacity, material density, grab bucket volume, span, lifting height, working duty, and site conditions.

Applications of Grab Bucket Overhead Crane

Grab bucket overhead cranes are widely used in industries where loose, granular, powdery, or bulk materials need to be handled efficiently. They are especially suitable for high-frequency loading and unloading operations.

Coal Handling

Grab bucket overhead cranes are commonly used in coal yards, coal storage warehouses, thermal power plants, and coal processing facilities. They can efficiently lift, load, unload, transfer, and stack coal materials.

Sand and Gravel Handling

For construction material plants, concrete mixing stations, aggregate yards, and storage areas, grab overhead cranes can handle sand, gravel, stones, and other loose construction materials with high efficiency.

Ore and Mineral Handling

In mining plants, mineral processing plants, and metallurgical facilities, grab bucket bridge cranes can be used to handle ore, mineral powder, slag, and other heavy bulk materials.

Steel Plants and Foundries

Grab bucket overhead cranes are suitable for handling slag, scrap, furnace materials, casting sand, and other industrial materials in steel plants, foundries, and metal processing workshops.

Waste Treatment and Recycling

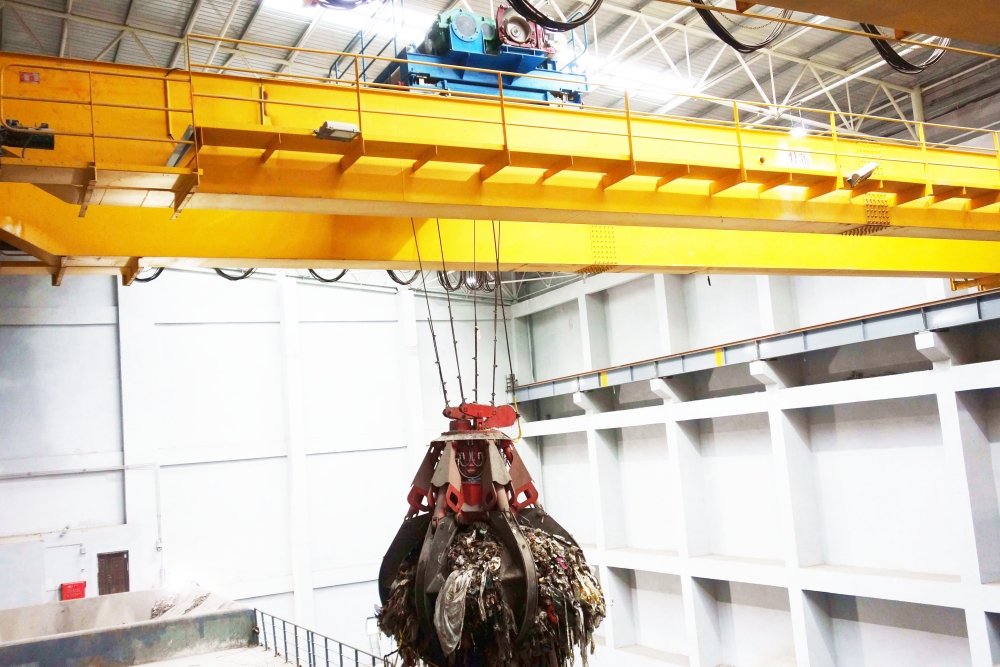

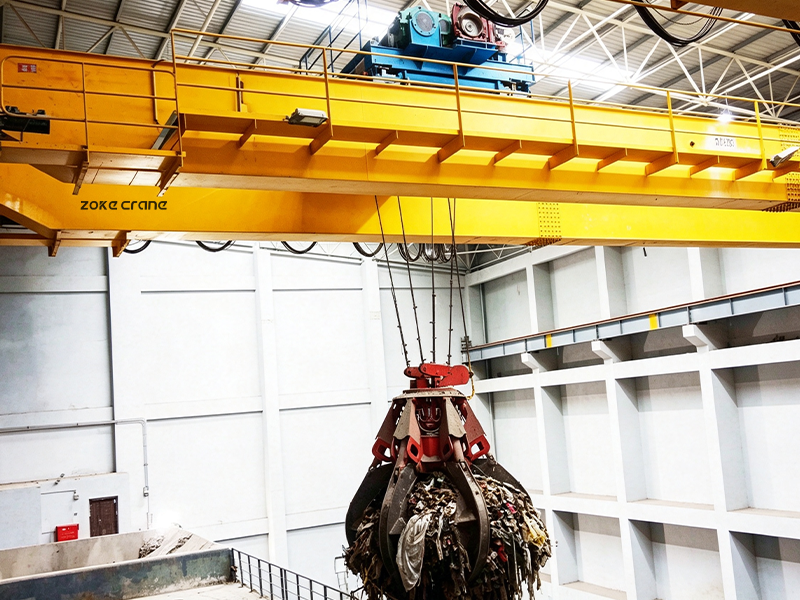

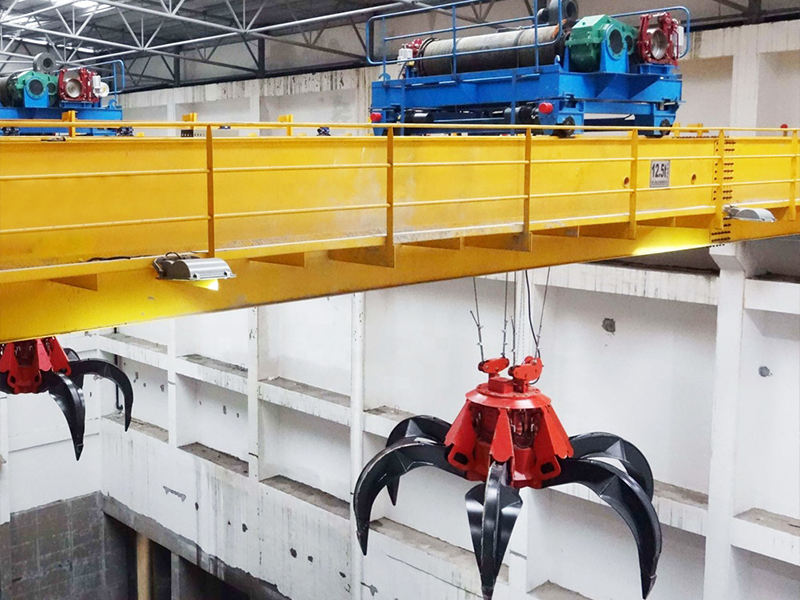

In waste incineration plants, recycling centers, and environmental protection facilities, grab overhead cranes can be used to handle waste, refuse, biomass materials, and recyclable materials.

Grain and Fertilizer Handling

For grain warehouses, fertilizer plants, and agricultural material storage facilities, grab bucket overhead cranes can be used to load, unload, and transfer loose agricultural materials.

Ports and Terminals

Grab bucket overhead cranes can also be used in port and terminal operations for bulk cargo handling, especially when integrated with loading and unloading systems.

Power Plants

In thermal power plants and energy facilities, grab cranes are often used for coal feeding, ash handling, material storage, and maintenance-related lifting operations.

Why Choose ZOKECRANE Grab Bucket Overhead Crane?

Professional Crane Manufacturer

ZOKECRANE is operated by Henan Zoke Crane Co., Ltd., a professional lifting equipment manufacturer specializing in overhead cranes and gantry cranes. Our manufacturing base is located in Changyuan, Henan Province, one of China’s major crane production centers.

Customized Bulk Material Handling Solution

Different bulk materials have different density, particle size, moisture content, flow characteristics, and handling requirements. ZOKECRANE can design the crane and grab bucket according to the customer’s material type, working frequency, lifting height, workshop layout, and production capacity.

Reliable Crane Structure

The grab bucket overhead crane is designed with a strong bridge structure and reliable mechanisms to meet the demands of bulk material handling. For heavy-duty and high-frequency applications, ZOKECRANE can provide reinforced structures and suitable working duty configurations.

Multiple Grab Bucket Options

ZOKECRANE can provide various grab bucket types, including mechanical grab, electric grab, hydraulic grab, motor grab, and four-rope grab. The grab bucket volume and structure can be customized according to material density and customer requirements.

Strict Quality Control

ZOKECRANE has established a comprehensive quality management system and obtained ISO, CE, and SGS certifications. Quality control is applied throughout design, steel structure fabrication, welding, machining, assembly, electrical installation, testing, painting, packaging, and shipment.

International Project Experience

ZOKECRANE products have been supplied to Russia, Uzbekistan, the Philippines, Bangladesh, Australia, Qatar, Tanzania, Singapore, Saudi Arabia, Brazil, Nigeria, and many other countries and regions. We understand different market requirements and can provide suitable crane solutions for international customers.

Technical Support and After-Sales Service

ZOKECRANE provides technical support for crane selection, technical drawings, installation guidance, operation manuals, electrical drawings, spare parts recommendations, and after-sales service support.

Frequently Asked Questions About Grab Bucket Overhead Crane

1. What is a grab bucket overhead crane?

A grab bucket overhead crane is an overhead crane equipped with a grab bucket instead of a normal hook. The grab bucket can open and close to collect and release bulk materials, making it suitable for lifting and transferring loose materials such as coal, sand, ore, gravel, slag, grain, waste, and fertilizer.

2. What materials can a grab bucket overhead crane handle?

It can handle many kinds of loose and bulk materials, including:

• Coal
• Sand
• Gravel
• Ore
• Slag
• Limestone
• Fertilizer
• Grain
• Biomass
• Waste
• Scrap materials
• Industrial bulk materials

The grab bucket type and volume should be selected according to the density, particle size, moisture content, and flow characteristics of the material.

3. What is the difference between a grab overhead crane and a hook overhead crane?

A hook overhead crane is mainly used for lifting packaged goods, machinery parts, steel structures, molds, containers, and other objects with lifting points.

A grab overhead crane is mainly used for bulk materials. It uses a grab bucket to pick up, hold, transfer, and release loose materials. Therefore, it is more suitable for loading, unloading, feeding, and stockpiling bulk materials.

4. What types of grab buckets are available?

Common grab bucket types include:

• Mechanical grab bucket
• Electric grab bucket
• Electric hydraulic grab bucket
• Motor grab bucket
• Single-rope grab bucket
• Double-rope grab bucket
• Four-rope grab bucket
• Clamshell grab bucket
• Orange peel grab bucket

The correct type depends on the crane structure, material type, lifting capacity, working frequency, and site conditions.

5. How to choose the right grab bucket volume?

The grab bucket volume should be selected according to:

1. Crane lifting capacity
2. Bulk material density
3. Material particle size
4. Moisture content
5. Required handling capacity per hour
6. Working frequency
7. Loading and unloading method

For high-density materials such as ore and slag, a smaller grab volume may be used. For lower-density materials such as coal, grain, or biomass, a larger grab volume may be suitable.

6. Can the grab bucket overhead crane be customized?

Yes. ZOKECRANE can customize the crane according to customer requirements, including:

• Lifting capacity
• Span
• Lifting height
• Traveling length
• Working duty
• Grab bucket type
• Grab bucket volume
• Control method
• Lifting speed
• Traveling speed
• Power supply
• Electrical brand
• Safety devices
• Working environment
• Indoor or outdoor use
• Anti-corrosion or dust-proof requirements

7. Is the grab bucket overhead crane suitable for outdoor use?

Yes. Grab bucket overhead cranes can be designed for outdoor use. For outdoor applications, ZOKECRANE can provide weatherproof electrical components, rain covers, anti-corrosion painting, wind protection devices, and other suitable configurations according to site conditions.

8. What control methods are available?

Common control methods include:

• Cabin control
• Wireless remote control
• Pendant control

For heavy-duty and high-frequency bulk material handling, cabin control is commonly used because it provides better visibility and convenient operation. Wireless remote control can also be used for flexible operation.

9. What information should I provide for quotation?

To provide an accurate quotation, please provide the following information:

1. Material to be handled
2. Material density
3. Required lifting capacity
4. Required grab bucket volume, if known
5. Crane span
6. Lifting height
7. Traveling length
8. Working duty or daily working hours
9. Indoor or outdoor use
10. Power supply voltage and frequency
11. Control method
12. Workshop or site drawing, if available
13. Destination country or port

10. What safety devices are equipped on the crane?

Common safety devices include:

• Overload protection
• Upper and lower limit switches
• Crane traveling limit switch
• Trolley traveling limit switch
• Emergency stop
• Buffer
• Anti-collision device
• Phase protection
• Voltage loss protection
• Warning light and alarm
• Wind protection device for outdoor cranes, if required

Export and Logistics FAQ for ZOKECRANE Grab Bucket Overhead Crane

1. Can ZOKECRANE export grab bucket overhead cranes overseas?

Yes. ZOKECRANE has supplied crane equipment to customers in Russia, Uzbekistan, the Philippines, Bangladesh, Australia, Qatar, Tanzania, Singapore, Saudi Arabia, Brazil, Nigeria, and many other countries and regions. We can provide export packaging, shipping support, technical documents, and customs clearance documents according to customer requirements.

2. How is the grab bucket overhead crane packed for export?

For export shipment, the main girder, end carriages, trolley, grab bucket, electrical cabinet, motors, reducers, cables, and accessories are packed according to sea transportation and long-distance delivery requirements.

Steel structures are usually wrapped and fixed securely. Electrical components, control cabinets, motors, reducers, and small parts are usually packed in wooden cases or export-standard packages. The grab bucket is packed or fixed according to its size and shipping method.

3. Can the grab bucket overhead crane be shipped by container?

Yes. Many grab bucket overhead cranes can be shipped by container. For cranes with large spans, the main girder may be divided into sections to fit standard containers.

Depending on the size and weight of the crane and grab bucket, standard containers, open-top containers, flat rack containers, or bulk cargo shipment may be used.

4. What shipping methods are available?

Common shipping methods include:

• Standard container shipping
• Open-top container shipping
• Flat rack container shipping
• Bulk cargo shipping
• Land transportation
• Railway transportation
• Multimodal transportation

The suitable shipping method depends on crane size, girder length, grab bucket size, total weight, destination country, delivery time, and shipping cost.

5. What documents can ZOKECRANE provide for export?

ZOKECRANE can usually provide the following export and technical documents:

• Commercial invoice
• Packing list
• Bill of lading
• Certificate of origin, if required
• Product certificate
• Quality inspection report, if required
• CE documents, if required
• Operation manual
• Installation drawings
• Electrical drawings
• Packing drawings
• Spare parts list

The final document list can be prepared according to customer requirements and destination country regulations.

6. Can ZOKECRANE provide CE documents?

Yes. ZOKECRANE has obtained ISO, CE, and SGS certifications. CE-related documents can be provided according to customer and project requirements.

7. How long does production and delivery take?

Production and delivery time depends on crane type, lifting capacity, span, lifting height, grab bucket type, quantity, electrical configuration, customization requirements, and order schedule.

After confirming the technical details and commercial terms, ZOKECRANE can provide a clear production and delivery plan.

8. Can ZOKECRANE help arrange shipment to our destination port?

Yes. ZOKECRANE can assist with shipment arrangement to the destination port according to the agreed trade terms. Customers may also use their own freight forwarder.

9. What trade terms are commonly used?

Common international trade terms include:

• EXW
• FOB
• CFR
• CIF
• DAP

The final trade term can be selected according to customer requirements, destination, and logistics arrangement.

10. How should we check the crane after receiving it?

After receiving the grab bucket overhead crane, customers should check:

1. Package condition
2. Quantity of components
3. Main girder condition
4. End carriage condition
5. Trolley condition
6. Grab bucket condition
7. Motors and reducers
8. Electrical cabinet and control components
9. Cables and accessories
10. Nameplates and markings
11. Technical documents and drawings
12. Spare parts, if included

If any damage or missing parts are found, please contact ZOKECRANE promptly with photos, packing list, and shipping documents.
