Overview of ZOKECRANE Enclosed Conductor Rail Systems

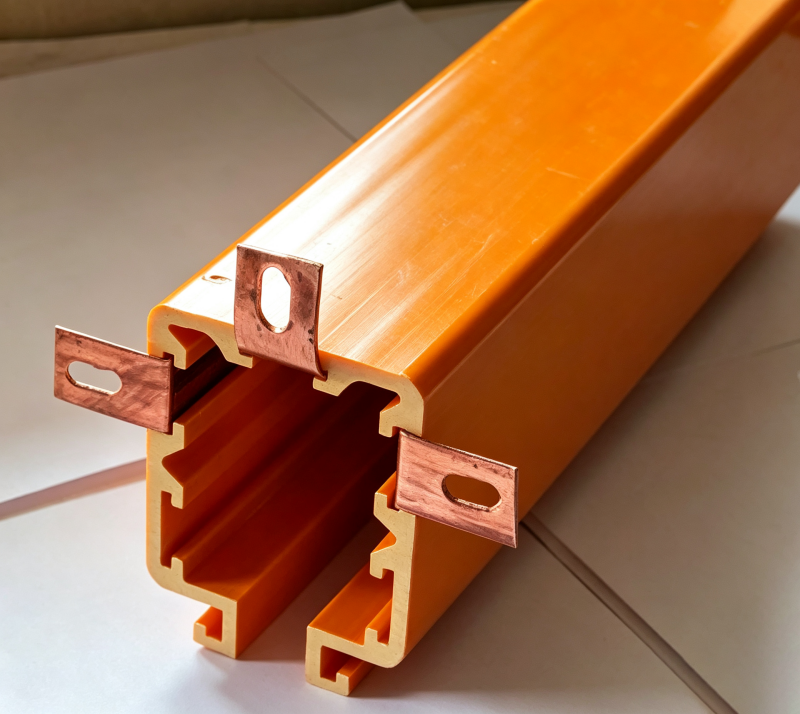

Manufactured by Henan Zoke Crane Co., Ltd., ZOKECRANE enclosed conductor rail systems consist of rigid, high-impact, flame-retardant insulating housings that encapsulate 4, 5, or 7 high-conductivity copper busbars inside a single compact profile. Designed for medium to high-current crane applications, our enclosed conductor rails feature spring-loaded internal current collectors that travel smoothly inside the duct, preventing dust accumulation, mechanical snagging, and human contact hazards.
Key Technical Specifications & Parameters
| Technical Parameter | Enclosed Conductor Rail Specification |
|---|---|
| Product Type | Enclosed Insulated Conductor Busbar System (Tubular Type) |
| Pole Configuration | 4 Poles, 5 Poles, 7 Poles (Multi-conductor integrated in one housing) |
| Current Capacity (Ampacity) | 50A, 80A, 120A, 140A, 170A, 210A, 240A (Copper line options) |
| Conductor Material | 99.9% High-purity oxygen-free copper (Cu) / Aluminum-copper composite option |
| Housing Shell Material | High-impact flame-retardant PVC / Anodized aluminum alloy outer casing option |
| Operating Voltage | AC 380V, 440V, 660V (50Hz / 60Hz) |
| Enclosure Protection Rating | IP23 Finger-safe touchproof rating (IP54 with rubber sealing strip options) |
| Operating Temperature | -30°C to +60°C (Standard PVC) / Up to +110°C (Aluminum high-temp casing) |
| Certifications & Compliance | ISO 9001 Quality System, CE Certified, SGS Verified, IEC 60529 Compliant |
Core Product Advantages & Engineering Features
- Maximum Electrical Safety (IP23 Rating): Live copper conductors are completely enclosed within the plastic duct, eliminating shock risks for maintenance workers and machine operators.
- Compact Multi-Pole Profile: Combines phase, neutral, and ground conductors into a single rigid housing channel, requiring minimal mounting space along crane runways.
- Dust & Moisture Resistance: Optional neoprene rubber lip seals protect internal copper strips from dust, moisture, and chemical vapors in demanding workshop air.
- High Speed & Smooth Current Collection: Internal current collectors guided by precision wheels deliver stable electrical contact at travel speeds up to 200 m/min without sparking.
Industrial Applications of Enclosed Conductor Rails
ZOKECRANE enclosed conductor busbar systems deliver reliable mobile power across diverse industrial facilities and automated material handling yards globally:
1. Overhead Traveling Cranes & Trolleys
Provides main workshop power lines and cross-bridge power supply for single-girder and double-girder EOT cranes.
2. Monorail Hoists & Curved Transfer Lines
Ideal for monorail electric hoists, automated monorail transport systems, and curved assembly shop power tracks.
3. Automated Storage & Retrieval Systems (ASRS)
Provides fast, compact, and spark-free electrification for high-bay automated stacker cranes and warehouse shuttle cars.
4. Aircraft Hangars & Maintenance Bays
Safe, low-profile mobile power supply installed in aviation maintenance facilities, automated test lines, and sliding platforms.
Frequently Asked Questions (Product FAQs)
What is the difference between an Enclosed Conductor Rail and a Single-Pole Heavy-Duty Busbar?
Enclosed Conductor Rails integrate 4 to 7 copper bars inside a single compact housing profile, ideal for light to medium current loads (up to 240A) in space-restricted workshops. Single-Pole Heavy-Duty Busbars feature separate insulated housings for each phase, designed for high-tonnage cranes requiring higher current capacity (300A to 2000A+).
Can enclosed conductor busbars be installed outdoors or in high-dust environments?
Yes. For outdoor or dusty environments, we equip the enclosed housing with bottom neoprene rubber sealing lips. These lip seals close automatically behind the moving current collector arm to keep out rain, dust, sand, and ambient debris.
How are individual conductor rail sections connected together during installation?
Standard 4-meter or 6-meter rail sections are joined using self-aligning copper joint connectors and locking splice covers. The copper joint ensures low electrical resistance across rail connections, while joint caps maintain structural rigidity and continuous IP23 protection.
What current collector maintenance is required?
Thanks to the enclosed housing protection, maintenance is minimal. Periodic inspections should check the wear indicator on the collector carbon brushes and clean any dust build-up inside the housing track during routine crane service intervals.
Export & Logistics FAQs for International Buyers
Which international markets does ZOKECRANE export enclosed conductor rails to?
ZOKECRANE mobile power conductor systems and crane accessories are exported worldwide, supplying electrical contractors and crane builders in Russia, Uzbekistan, the Philippines, Bangladesh, Australia, Qatar, Tanzania, Singapore, Saudi Arabia, Brazil, Nigeria, and many other international regions.
How are enclosed conductor rails packaged for ocean freight shipment?
Standard 4-meter straight housing channels are bundled in protective plastic wrapping with edge protection and packed in export-grade fumigated wooden cases. Current collectors, joint connectors, power feeds, and hangers are vacuum-sealed in plastic film and packed in heavy-duty cardboard boxes inside the wooden crate.
What quality test reports and certifications accompany ZOKECRANE conductor rails?
Every shipment is accompanied by complete quality assurance documentation, including ISO 9001 compliance, European CE certificates, EN 60529 IP23/IP54 protection reports, dielectric voltage test sheets, and SGS third-party verification upon request.
What shipping terms and manufacturing lead times do you offer?
We support standard international commercial terms including FOB, CIF, CFR, DDU, and DDP. Standard enclosed conductor rail models (50A to 210A, 4-pole/5-pole) are kept in stock with fast lead times of 5 to 10 business days; large volume or custom aluminum casing orders take 12 to 20 business days.
Does ZOKECRANE provide complete installation accessories and support?
Yes. We supply complete turn-key electrification packages including the enclosed rail housings, copper bars, joint connectors, end feeds, line feeds, sliding hangers, fixed hangers, and current collectors. Comprehensive installation drawings and 24/7 remote video technical assistance are provided to ensure easy installation on site.
