Overview of ZOKECRANE Crane Buffer Systems

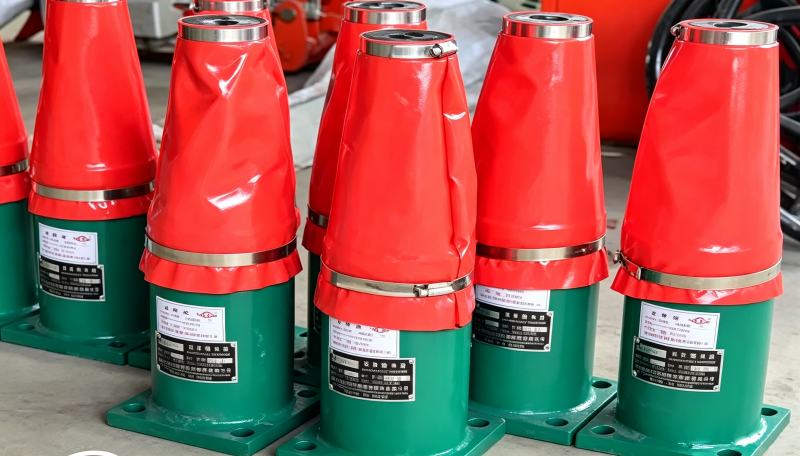

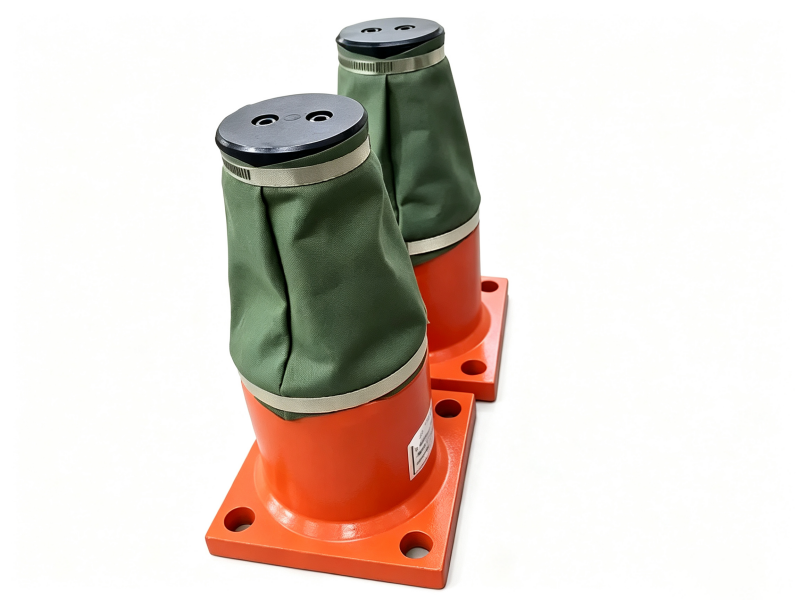

Manufactured by Henan Zoke Crane Co., Ltd., ZOKECRANE crane buffers are available in a comprehensive range of materials and energy-absorption technologies, including polyurethane buffers, heavy-duty hydraulic/oil buffers, rubber bumpers, and high-tension spring buffers. Designed in strict compliance with DIN, FEM, and ISO international safety standards, our buffer systems cater to light-duty hoists as well as ultra-heavy metallurgical and port container cranes.
Key Technical Specifications & Parameters
| Technical Parameter | Crane Buffer Specification |
|---|---|
| Product Type | Polyurethane Buffer (PU) / Heavy-Duty Hydraulic Buffer / Spring Buffer / Rubber Bumper |
| Energy Absorption Capacity | Up to 500+ kJ per unit (Custom high-impact energy solutions available) |
| Maximum Stroke Length | 50 mm to 1,000+ mm (Varies by buffer model and travel velocity) |
| Operating Travel Velocity | Designed for impact speeds from 0.5 m/s up to 5.0+ m/s |
| Manufacturing Material | Cast polyurethane elastomer / High-tensile seamless steel cylinder (Hydraulic type) |
| Mounting Options | Flange plate mounting / Threaded stud mounting / Weldable base plate mounting |
| Operating Ambient Temp | -40°C to +80°C (Weatherproof, oil-resistant, and UV-stabilized formulations) |
| Manufacturing Standards | DIN 15018, FEM 1.001, ISO 8686, GB/T 3811 |
| Certifications & Compliance | ISO 9001 Quality System, CE Certified, SGS Verified |
Core Product Advantages & Engineering Features
- Exceptional Kinetic Energy Absorption: Advanced microcellular polyurethane and hydraulic throttling designs deliver constant deceleration profiles, preventing peak shock loads on structural crane beams.

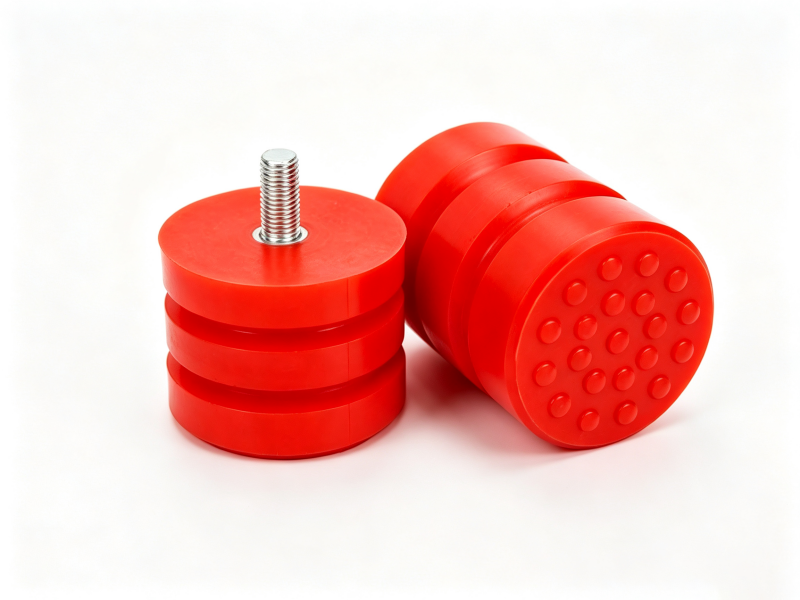

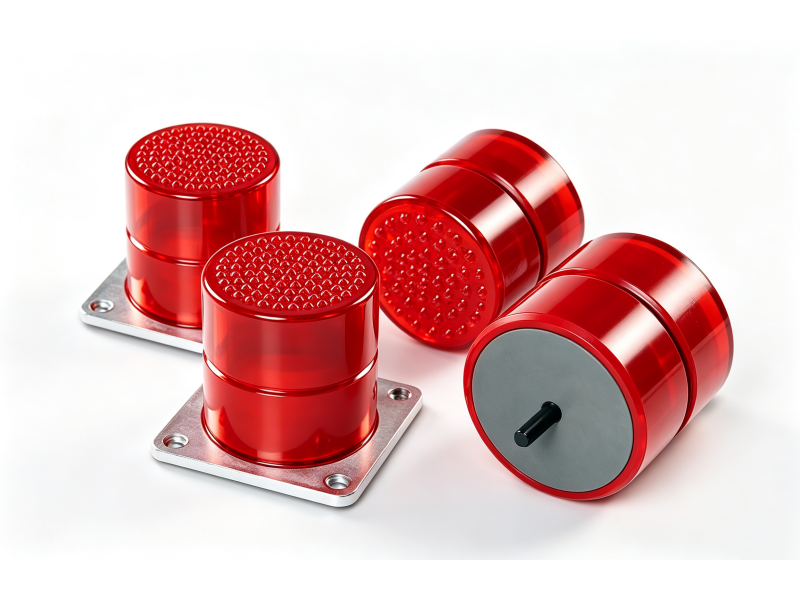

- Maintenance-Free & High Elasticity: Polyurethane buffers exhibit excellent memory recovery, high tear resistance, and high damping capacity without requiring mechanical lubrication.
- All-Weather Environmental Resistance: Formulated to resist industrial oils, ozone, grease, chemical vapors, and extreme ambient temperature swings (-40°C to +80°C).
- Smooth Recoil & Quiet Operation: Absorbs mechanical impact energy with minimal recoil rebound, significantly lowering collision noise and protecting building runway stops.
Industrial Applications of Crane Buffers
ZOKECRANE heavy-duty buffers and end bumpers are critical safety devices installed across diverse lifting machinery and automated industrial facilities globally:
1. Single & Double Girder Overhead Cranes
Mounted on crane end carriages and trolley frames to absorb collision impact at runway end stops or between adjacent cranes on the same bay.
2. Gantry & Semi-Gantry Outdoor Cranes
Heavy-duty hydraulic and polyurethane buffers installed on ground end trucks and trolley runways for outdoor yard cranes.
3. Metallurgical Steel Mill Cranes
Heat-resistant hydraulic and heavy spring buffers deployed on high-speed ladle cranes, scrap cranes, and charging trolleys.
4. Automated Storage & Port Container Cranes
Long-stroke hydraulic buffers engineered for high-speed automated stacker cranes (ASRS), rail-mounted gantry cranes (RMG), and ship-to-shore (STS) quay cranes.
Frequently Asked Questions (Product FAQs)
What is the difference between Polyurethane Buffers and Hydraulic Buffers?
Polyurethane (PU) Buffers are lightweight, highly economical, compact, and maintenance-free, ideal for low-to-medium speed cranes (up to 2 m/s). Hydraulic Buffers utilize oil throttling orifices to convert kinetic energy into thermal energy, providing smooth, linear deceleration for heavy-tonnage or high-speed cranes (above 2 m/s).
How do I calculate the required buffer size and stroke for a crane?
Buffer selection depends on three main parameters: total crane mass under motion (including rated load), maximum collision velocity (usually calculated at 70% to 100% of rated crane travel speed), and allowable deceleration force limit on the crane structure.
Why are rubber buffers being replaced by polyurethane buffers?
Polyurethane buffers offer up to 3 to 4 times higher energy absorption capacity per volume compared to traditional natural rubber bumpers. Additionally, polyurethane exhibits far superior resistance to oil degradation, UV aging, and mechanical fatigue over long duty cycles.
Can ZOKECRANE buffers be custom-manufactured for non-standard mounting dimensions?
Yes. We can custom-engineer buffer lengths, stroke capacities, flange plate hole patterns, and thread specifications according to your existing crane structure or replacement project requirements.
Export & Logistics FAQs for International Buyers
Which international markets does ZOKECRANE export crane buffers to?
ZOKECRANE crane safety components and lifting accessories are exported worldwide, supplying crane builders, steel structures, and maintenance buyers in Russia, Uzbekistan, the Philippines, Bangladesh, Australia, Qatar, Tanzania, Singapore, Saudi Arabia, Brazil, Nigeria, and many other global markets.
How are crane buffers packaged to prevent damage during ocean freight?
Polyurethane buffers are wrapped in anti-static moisture-proof film. Hydraulic buffers receive heavy anti-rust oil coatings on chrome piston rods and protective rubber boots. Complete shipments are packed in heavy-duty export-standard fumigated wooden cases or reinforced corrugated cartons.
What quality test reports and certifications accompany ZOKECRANE buffer shipments?
Every buffer order is supplied with a complete quality assurance dossier, including ISO 9001 compliance, European CE safety certificates, impact test performance sheets, material hardness reports, and SGS verification upon request.
What commercial shipping terms and manufacturing lead times do you offer?
We support standard international commercial terms including FOB, CIF, CFR, DDU, and DDP. Standard polyurethane buffer models are kept in stock with fast lead times of 3 to 7 business days; custom heavy hydraulic buffers take 15 to 20 business days.
Does ZOKECRANE provide installation instructions and engineering drawings?
Yes. Every shipment includes mounting CAD dimension sheets, bolt torque specs, and installation manuals. Our technical engineering team provides 24/7 remote video assistance to guide your site engineers through buffer mounting and end-stop positioning.
