Product Introduction

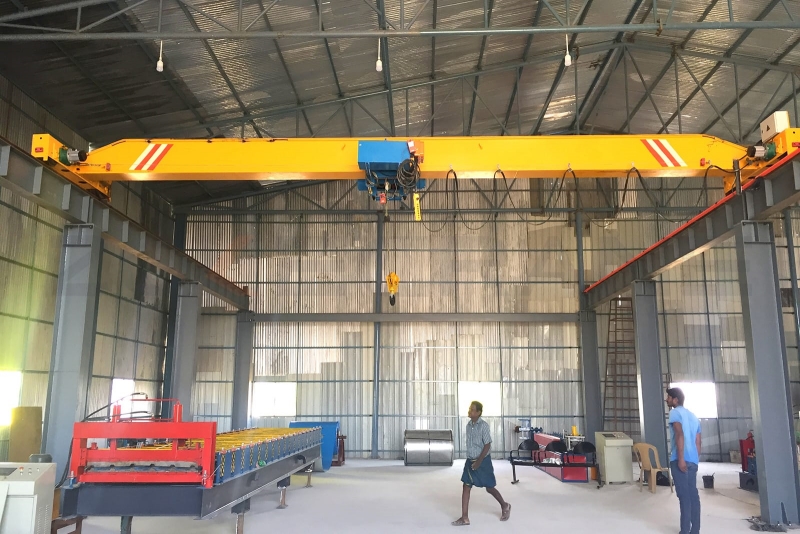

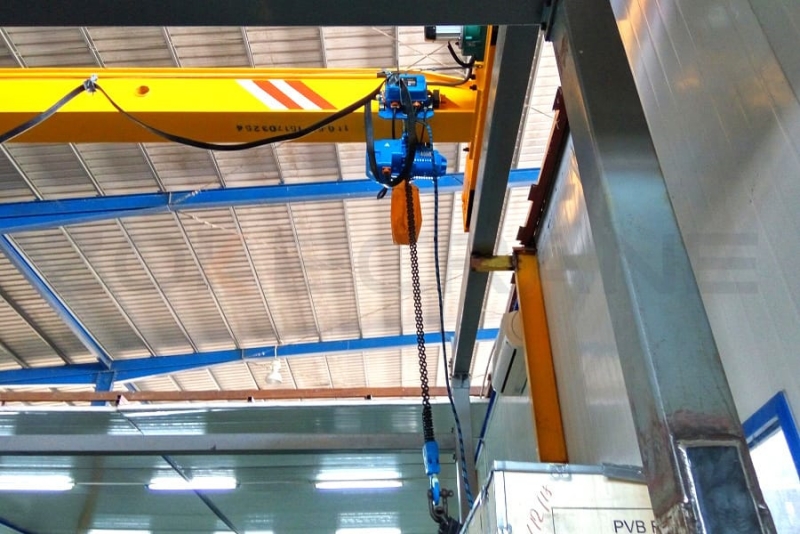

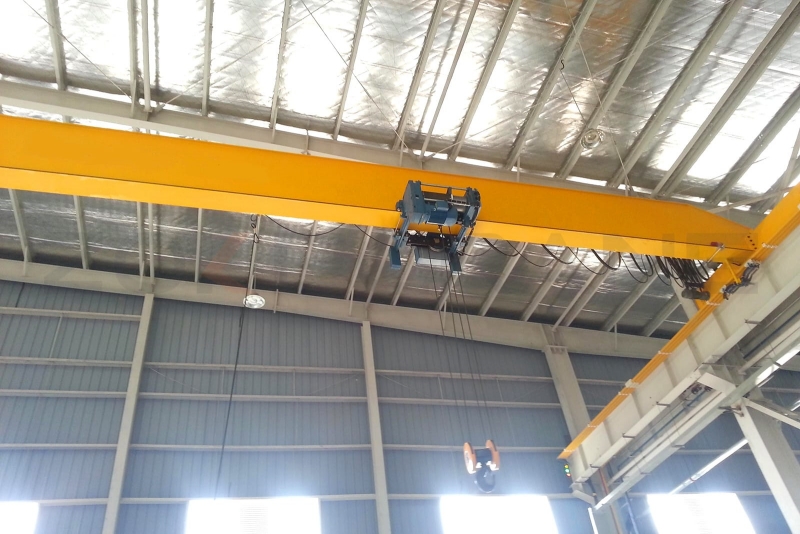

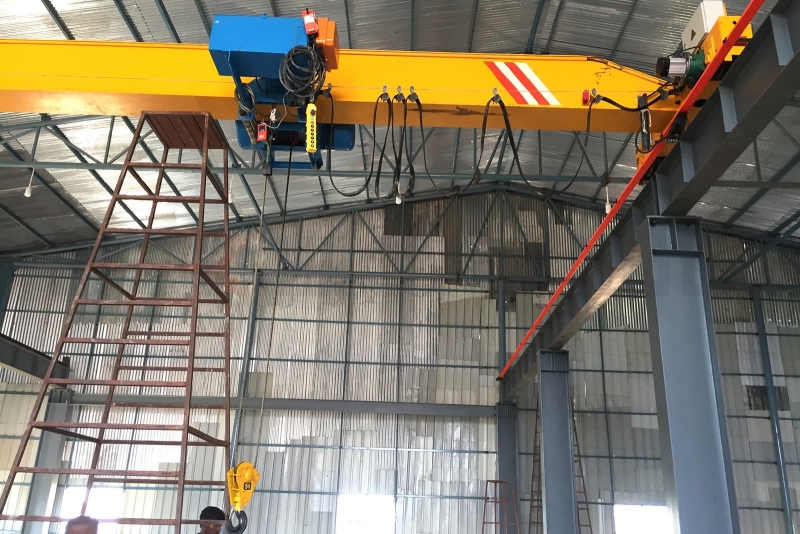

An Explosion-Proof Single Girder Overhead Crane is a special type of overhead lifting equipment designed for material handling in hazardous environments where flammable gases, vapors, combustible dust, or explosive atmospheres may exist. It is commonly used in industrial plants where ordinary overhead cranes may not be suitable due to explosion-risk working conditions.
This crane usually consists of a single main girder, end carriages, explosion-proof electric hoist or trolley, crane traveling mechanism, electrical control system, safety devices, and supporting components. Compared with a standard single girder overhead crane, an explosion-proof single girder overhead crane is equipped with explosion-proof motors, explosion-proof electrical components, explosion-proof control systems, and safety configurations selected according to the actual hazardous area requirements.
ZOKECRANE explosion-proof single girder overhead cranes are designed and manufactured by Henan Zoke Crane Co., Ltd., a professional lifting equipment manufacturer specializing in overhead cranes, gantry cranes, electric hoists, trolley mechanisms, and customized lifting solutions. Our manufacturing base is located in Changyuan, Henan Province, one of China’s major crane production centers. With extensive experience in crane engineering, design, and manufacturing, ZOKECRANE provides reliable crane equipment for different industrial applications and international markets.
The explosion-proof single girder overhead crane is often used with an explosion-proof wire rope electric hoist as the lifting mechanism. It runs on runway beams installed on both sides of the workshop and can provide three-dimensional material handling: lifting up and down, hoist traveling left and right, and crane traveling forward and backward. This structure is suitable for workshops, warehouses, production lines, maintenance areas, and hazardous industrial environments requiring safe and efficient lifting operations.
ZOKECRANE can provide customized explosion-proof single girder overhead crane solutions according to lifting capacity, span, lifting height, working duty, crane traveling length, control method, voltage, frequency, hazardous area classification, gas group, dust type, temperature class, protection level, installation condition, and destination country standards. For hazardous environments, correct product selection is very important. Customers are advised to provide detailed working condition information before ordering.
With ISO, CE, and SGS certifications, ZOKECRANE continuously improves product structure, manufacturing processes, and quality control standards to better serve overseas customers. Our products have been supplied to Russia, Uzbekistan, the Philippines, Bangladesh, Australia, Qatar, Tanzania, Singapore, Saudi Arabia, Brazil, Nigeria, and many other countries and regions. ZOKECRANE remains committed to providing reliable crane equipment, professional technical support, and customized lifting solutions for global customers.
Main Features of ZOKECRANE Explosion-Proof Single Girder Overhead Crane
- Designed for hazardous and explosive working environments
- Single girder structure with compact layout and practical installation
- Equipped with explosion-proof electric hoist or explosion-proof trolley
- Explosion-proof motors, electrical components, and control system available
- Suitable for flammable gas, vapor, and combustible dust environments according to project requirements
- Three-dimensional material handling: lifting, cross traveling, and long traveling
- Customized lifting capacity, span, lifting height, and working duty
- Suitable for workshops, warehouses, production lines, and maintenance areas
- Smooth operation and stable lifting performance
- Pendant control, remote control, or cabin control optional according to project requirements
- Customized power supply, such as 220V, 380V, 415V, 440V, 50Hz or 60Hz
- Safety devices such as limit switch, emergency stop, overload protection, and buffer available
- Suitable for chemical, petrochemical, oil and gas, paint, pharmaceutical, and dust-related industries
- Designed for export projects with packaging, documentation, and technical support
- Can be customized according to customer layout drawings and local working conditions
Main Components
An explosion-proof single girder overhead crane consists of mechanical, structural, and electrical components. Each component is selected and configured according to lifting requirements and hazardous area conditions.
| Component | Description | Function |
|---|---|---|
| Main Girder | The primary load-bearing beam of the crane, usually designed as a single girder structure. | Supports the hoist and load during lifting and traveling operation. |
| End Carriages | Installed at both ends of the main girder and equipped with crane traveling wheels. | Allows the crane to travel along runway beams. |
| Explosion-Proof Electric Hoist | Explosion-proof wire rope electric hoist or other suitable lifting mechanism. | Performs lifting and lowering of materials in hazardous environments. |
| Hoist Trolley | Traveling mechanism of the hoist mounted on the lower flange of the main girder. | Allows the hoist and load to move left and right along the crane girder. |
| Explosion-Proof Lifting Motor | Special motor used for the hoist lifting mechanism. | Provides lifting power while meeting special hazardous environment requirements. |
| Explosion-Proof Traveling Motor | Motor used for hoist traveling and crane long traveling mechanism. | Provides horizontal movement for trolley and crane traveling. |
| Crane Traveling Mechanism | Includes motors, reducers, wheels, shafts, and related transmission parts. | Drives the whole crane to move along the workshop runway. |
| Explosion-Proof Control Box | Electrical control enclosure configured for hazardous area applications. | Controls lifting, trolley traveling, crane traveling, protection, and safety functions. |
| Electrical System | Includes cables, cable trolley, conductor system, control components, and wiring accessories. | Supplies power and control signals for crane operation. |
| Pendant Control | Operator control device with buttons for lifting and traveling movements. | Allows operators to control the crane safely and conveniently. |
| Wireless Remote Control | Optional control method for convenient operation from a safe distance. | Improves operational flexibility and visibility in some working conditions. |
| Limit Switches | Installed for lifting, trolley traveling, and crane traveling positions. | Helps prevent over-lifting, over-lowering, and excessive traveling movement. |
| Overload Protection | Safety protection device used to prevent lifting loads above rated capacity. | Improves operational safety and protects crane components. |
| Buffer and End Stop | Installed at crane travel ends or trolley travel ends. | Reduces impact and prevents over-travel under abnormal conditions. |
| Runway System | Runway beams and rails installed on both sides of the workshop. | Supports crane long traveling movement. |
Common Types of Explosion-Proof Single Girder Overhead Crane
ZOKECRANE can provide different types of explosion-proof single girder overhead cranes according to plant layout, lifting requirement, installation condition, and hazardous area classification.
| Type | Description | Typical Application |
|---|---|---|
| Explosion-Proof Single Girder Overhead Crane with Wire Rope Hoist | Uses an explosion-proof wire rope electric hoist as the lifting mechanism. | Chemical plants, petrochemical workshops, paint workshops, pharmaceutical factories |
| Low Headroom Explosion-Proof Single Girder Overhead Crane | Designed to improve lifting height utilization in workshops with limited headroom. | Low-clearance hazardous workshops and compact production areas |
| Suspension Type Explosion-Proof Single Girder Crane | Suspended from the building roof structure or runway beams when floor columns are not suitable. | Light-duty hazardous material handling areas and special workshop layouts |
| Explosion-Proof Single Girder EOT Crane | Electric overhead traveling crane with explosion-proof configuration and single girder design. | Industrial production lines and warehouse lifting systems in hazardous areas |
| Customized Explosion-Proof Single Girder Overhead Crane | Designed according to special lifting capacity, span, lifting height, working duty, power supply, control method, and hazardous area requirements. | Special industrial projects and customized hazardous environment lifting systems |
Typical Technical Parameters
The following parameters are for general reference. ZOKECRANE can customize explosion-proof single girder overhead cranes according to customer requirements, workshop layout, hazardous environment, and destination country standards.
| Item | Specification |
|---|---|
| Product Name | Explosion-Proof Single Girder Overhead Crane |
| Alternative Name | Explosion-Proof Single Girder Bridge Crane / Flameproof Single Girder Overhead Crane / Explosion-Proof EOT Crane |
| Lifting Capacity | 1 ton, 2 ton, 3 ton, 5 ton, 10 ton, 16 ton, 20 ton or customized |
| Span | 7.5 m, 10.5 m, 13.5 m, 16.5 m, 19.5 m, 22.5 m or customized |
| Lifting Height | 6 m, 9 m, 12 m, 18 m, 24 m or customized |
| Lifting Mechanism | Explosion-proof wire rope electric hoist |
| Crane Type | Single girder overhead crane |
| Traveling Type | Electric traveling |
| Lifting Speed | Single speed or dual speed optional |
| Hoist Traveling Speed | Customized according to working condition |
| Crane Traveling Speed | Customized according to working condition |
| Working Duty | Customized according to working frequency |
| Control Method | Pendant control / wireless remote control / cabin control optional |
| Power Supply | Customized voltage and frequency, such as 220V, 380V, 415V, 440V, 50Hz/60Hz |
| Explosion-Proof Configuration | Customized according to hazardous area requirements |
| Applicable Environment | Hazardous areas with flammable gas, vapor, or combustible dust according to project requirements |
| Protection Level | Customized according to environment and application requirements |
| Safety Device | Limit switch, emergency stop, overload protection, buffer, end stop, brake |
| Installation Site | Indoor workshop / outdoor or semi-outdoor site with suitable protection |
| Certification | ISO, CE, SGS available |
Applications of Explosion-Proof Single Girder Overhead Crane
Explosion-proof single girder overhead cranes are widely used in hazardous industrial environments where safe material handling and reliable lifting performance are required.
Chemical Plants
Chemical plants often involve flammable gases, vapors, solvents, or corrosive substances. Explosion-proof single girder overhead cranes can be used for lifting chemical containers, reactors, pumps, valves, pipe sections, maintenance tools, and production equipment.
Petrochemical Facilities
In petrochemical production and processing facilities, lifting equipment is required for maintenance, installation, material transfer, and equipment handling. Explosion-proof single girder overhead cranes can provide stable and efficient lifting solutions for processing units, maintenance workshops, storage areas, and pipeline handling zones.
Oil and Gas Industry
Oil refineries, gas processing plants, fuel handling areas, compressor stations, and related facilities may require explosion-proof lifting equipment. Single girder explosion-proof overhead cranes can be used for equipment maintenance, pump handling, spare parts lifting, and material transportation.
Paint Workshops and Coating Lines
Paint workshops and coating lines may contain flammable solvents or vapors. Explosion-proof single girder overhead cranes can be used to lift workpieces, frames, steel structures, production fixtures, and maintenance equipment.
Pharmaceutical Factories
Some pharmaceutical production processes use alcohol, solvents, or other flammable materials. Explosion-proof single girder overhead cranes can support production line maintenance, equipment installation, container handling, and material movement.
Fuel Storage and Hazardous Warehouses
Fuel storage areas and hazardous warehouses require lifting equipment selected according to working environment conditions. Explosion-proof single girder overhead cranes can help improve material handling efficiency while meeting special site requirements.
Dust-Prone Industrial Workshops
Combustible dust may exist in industries such as grain processing, coal handling, powder production, metal powder processing, textile manufacturing, and other dust-related production processes. Explosion-proof crane solutions can be selected according to dust type and hazardous area classification.
Battery and Energy Storage Industry
Some battery production and energy storage facilities may involve flammable gases, solvents, or special safety requirements. Explosion-proof single girder overhead cranes can be used for equipment handling, production line support, and maintenance lifting.
Maintenance and Equipment Installation Areas
Explosion-proof single girder overhead cranes are suitable for maintenance workshops, equipment installation zones, pump rooms, processing rooms, and other hazardous industrial areas requiring safe and controlled lifting operations.
Why Choose ZOKECRANE Explosion-Proof Single Girder Overhead Crane?
Professional Overhead Crane Manufacturer
ZOKECRANE is operated by Henan Zoke Crane Co., Ltd., a professional lifting equipment manufacturer specializing in overhead cranes, gantry cranes, electric hoists, trolley mechanisms, and customized lifting solutions. Our manufacturing base is located in Changyuan, Henan Province, one of China’s major crane production centers.
Experience in Crane Engineering and Manufacturing
With extensive experience in crane engineering, design, and manufacturing, ZOKECRANE can provide practical lifting solutions for different industrial applications. Our team focuses on product structure optimization, stable crane operation, and reliable performance.
Customized Explosion-Proof Crane Solutions
Different hazardous environments require different technical configurations. ZOKECRANE can customize explosion-proof single girder overhead cranes according to lifting capacity, span, lifting height, working duty, power supply, control method, hazardous area classification, gas group, dust type, temperature class, protection level, installation condition, and local project requirements.
Reliable Hoist and Trolley Mechanism
Based on overseas customer requirements, ZOKECRANE has developed optimized trolley mechanisms and reliable wire rope electric hoists. The explosion-proof wire rope electric hoist can be matched with the single girder overhead crane to provide efficient lifting and traveling performance.
Quality Management and Certification Support
ZOKECRANE has established a comprehensive quality management system and obtained ISO, CE, and SGS certifications. We continuously improve manufacturing processes, inspection standards, and quality control procedures to better serve international customers.
International Export Experience
ZOKECRANE products have been supplied to Russia, Uzbekistan, the Philippines, Bangladesh, Australia, Qatar, Tanzania, Singapore, Saudi Arabia, Brazil, Nigeria, and many other countries and regions. We understand overseas project requirements for drawings, packaging, shipping, documentation, and technical support.
Complete Technical Support
ZOKECRANE can provide technical consultation, crane drawings, layout drawings, wheel load data, installation instructions, operation manuals, maintenance manuals, wiring diagrams, spare parts lists, inspection documents, and remote technical support for overseas customers.
Frequently Asked Questions About Explosion-Proof Single Girder Overhead Crane
1. What is an explosion-proof single girder overhead crane?
An explosion-proof single girder overhead crane is an overhead lifting device designed for hazardous environments where flammable gases, vapors, combustible dust, or explosive atmospheres may exist. It has a single main girder structure and is usually equipped with an explosion-proof electric hoist as the lifting mechanism.
2. What is the difference between a standard single girder overhead crane and an explosion-proof single girder overhead crane?
A standard single girder overhead crane is used in general industrial environments. An explosion-proof single girder overhead crane is designed for hazardous areas and can be equipped with explosion-proof motors, electrical components, control systems, hoists, and safety devices according to project requirements.
3. What is the difference between an explosion-proof single girder crane and an explosion-proof double girder crane?
An explosion-proof single girder crane has one main girder and is commonly used for light to medium-duty lifting applications. An explosion-proof double girder crane has two main girders and is usually selected for heavier loads, larger spans, higher lifting heights, and more demanding working conditions.
4. What lifting mechanism is used on this crane?
The crane is usually equipped with an explosion-proof wire rope electric hoist as the lifting mechanism. Other customized lifting mechanisms can be selected according to project requirements.
5. Where can explosion-proof single girder overhead cranes be used?
They are suitable for chemical plants, petrochemical facilities, oil and gas industries, paint workshops, pharmaceutical factories, fuel storage areas, hazardous warehouses, dust-prone workshops, battery production plants, and other special industrial environments.
6. Can the crane be used in gas and dust environments?
Yes, but the crane configuration must be selected according to the actual hazardous environment, including gas type, dust type, hazardous area classification, gas group, temperature class, protection level, and local safety requirements.
7. What lifting capacity can ZOKECRANE provide?
Common lifting capacities include 1 ton, 2 ton, 3 ton, 5 ton, 10 ton, 16 ton, and 20 ton. Other capacities can be customized according to customer requirements, working duty, and site conditions.
8. What span can be customized?
Common spans include 7.5 m, 10.5 m, 13.5 m, 16.5 m, 19.5 m, and 22.5 m. Other spans can be designed according to workshop width, runway beam layout, and customer requirements.
9. What lifting height can be customized?
Common lifting heights include 6 m, 9 m, 12 m, 18 m, and 24 m. The lifting height can be customized according to workshop height, hook approach, hoist type, and actual lifting requirements.
10. What control methods are available?
Common control methods include pendant control, wireless remote control, and cabin control. For hazardous areas, the control method should be selected according to site safety requirements and working environment.
11. What power supply can be customized?
ZOKECRANE can customize power supply according to the destination country and customer requirements, such as 220V, 380V, 415V, 440V, 50Hz or 60Hz. Customers should confirm voltage, phase, and frequency before ordering.
12. What information is needed for quotation?
To recommend a suitable explosion-proof single girder overhead crane, please provide:
- Lifting capacity
- Crane span
- Lifting height
- Crane traveling length
- Working duty or working frequency
- Lifting speed requirement
- Hoist traveling speed requirement
- Crane traveling speed requirement
- Power supply, voltage, phase, and frequency
- Control method requirement
- Indoor or outdoor use
- Ambient temperature
- Working environment description
- Hazardous area classification
- Gas group or dust type
- Temperature class
- Workshop drawings or layout drawings
- Runway beam and rail information, if available
- Required safety devices
- Destination country or port
- Certification and document requirements
- Packaging and shipping requirements
13. Can ZOKECRANE provide crane drawings?
Yes. ZOKECRANE can provide general arrangement drawings, layout drawings, technical drawings, wheel load data, installation drawings, wiring diagrams, and other technical documents according to project requirements.
14. Can the crane be used outdoors?
It can be used outdoors or in semi-outdoor areas if the product configuration, protection level, anti-rust treatment, rain protection, wind conditions, and environmental requirements are considered. Please provide outdoor working conditions before product selection.
15. Does ZOKECRANE provide installation support?
ZOKECRANE can provide installation instructions, operation manuals, wiring diagrams, technical drawings, and remote technical support. For overseas projects, installation assistance can be discussed according to project requirements and commercial terms.
16. Can ZOKECRANE provide spare parts?
Yes. ZOKECRANE can provide spare parts such as hoist components, wire ropes, hooks, brakes, motors, reducers, wheels, bearings, limit switches, pendant controls, control components, electrical parts, crane wheels, end carriage parts, buffers, cables, and other customized spare parts.
Export and Logistics FAQ for ZOKECRANE Explosion-Proof Single Girder Overhead Crane
1. Can ZOKECRANE export explosion-proof single girder overhead cranes overseas?
Yes. ZOKECRANE has experience in exporting overhead cranes, gantry cranes, wire rope electric hoists, crane components, and customized lifting equipment to international markets. Our products have been supplied to customers in Russia, Uzbekistan, the Philippines, Bangladesh, Australia, Qatar, Tanzania, Singapore, Saudi Arabia, Brazil, Nigeria, and many other countries and regions.
2. How is the explosion-proof single girder overhead crane packed for export?
Explosion-proof single girder overhead cranes are usually packed according to component type, size, and shipping method. Main girders and end carriages may be packed with steel frames, waterproof cloth, protective wrapping, or other export-standard protection. Electrical parts, hoists, motors, control boxes, pendant controls, bolts, spare parts, and documents are usually packed in wooden cases or suitable protective packaging.
3. Can the crane be shipped by sea?
Yes. Most explosion-proof single girder overhead cranes are shipped by sea freight due to the length and weight of the main girder and crane components. Depending on package size, order quantity, and destination port, the crane can be shipped by container, flat rack container, break bulk vessel, or other suitable sea freight methods.
4. Can the crane be shipped in standard containers?
Many single girder overhead crane components can be shipped in standard containers if the main girder length and package dimensions are suitable. For longer spans, the main girder may need to be split into sections for container loading or shipped by flat rack container or break bulk vessel. ZOKECRANE can design packaging and shipping plans according to crane span and destination port conditions.
5. Can the main girder be divided for container transportation?
Yes. For long-span cranes, ZOKECRANE can design the main girder in sections to reduce shipping difficulty and container loading cost. The sectional girder can be connected on site according to installation drawings and technical requirements.
6. What shipping methods are available?
Common shipping methods include:
- Sea freight
- FCL shipment
- LCL shipment
- Flat rack container shipment
- Break bulk shipment
- Land transportation
- Railway transportation
- Multimodal transportation
- Air freight for small spare parts or urgent components
The suitable shipping method depends on crane span, component dimensions, gross weight, destination country, port conditions, delivery time, and trade terms.
7. What export documents can ZOKECRANE provide?
ZOKECRANE can usually provide the following documents:
- Commercial invoice
- Packing list
- Bill of lading
- Certificate of origin, if required
- Product certificate
- Quality inspection report, if required
- CE-related documents, if required
- SGS-related documents, if required
- General arrangement drawing
- Layout drawing
- Installation drawing
- Wiring diagram
- Operation manual
- Maintenance manual
- Spare parts list
- Test report, if required
- Packing photos
- Loading photos
The actual document list can be prepared according to customer requirements, destination country customs clearance requirements, trade terms, and project needs.
8. Can ZOKECRANE assist with customs clearance?
ZOKECRANE can provide necessary export documents for customs clearance according to agreed trade terms. Customers or their appointed agents are usually responsible for import customs clearance in the destination country. If special customs documents are required, customers should inform ZOKECRANE before shipment.
9. How should customers check the goods after receiving the crane?
After receiving the explosion-proof single girder overhead crane, customers should check:
- Package condition
- Shipping marks and packing list
- Main girder quantity and condition
- End carriages
- Explosion-proof electric hoist
- Crane traveling mechanism
- Hoist trolley
- Motors and reducers
- Crane wheels
- Control box
- Pendant control or remote control
- Electrical cables and cable accessories
- Limit switches
- Buffers and end stops
- Rails and runway accessories, if included
- Bolts and connecting plates
- Spare parts and tools
- Nameplates and product markings
- Technical documents and manuals
If any damage, shortage, or inconsistency is found, please contact ZOKECRANE promptly with photos, packing list, and shipping documents.
10. Can spare parts be shipped separately?
Yes. Spare parts such as wire ropes, hooks, brakes, motors, reducers, wheels, bearings, limit switches, control components, pendant controls, remote controls, cables, buffers, bolts, electrical parts, hoist parts, and crane accessories can be shipped separately by courier, air freight, sea freight, or other suitable shipping methods.
11. Can packaging be customized?
Yes. ZOKECRANE can customize packaging according to shipping method, crane size, customer requirements, destination country requirements, project needs, and cargo protection requirements. Wooden cases, steel frames, waterproof wrapping, anti-rust protection, labels, shipping marks, and special packing instructions can be arranged.
12. How long does production and delivery take?
Production and delivery time depends on lifting capacity, span, lifting height, explosion-proof configuration, working duty, power supply, control method, order quantity, customization level, certification requirements, production schedule, shipping route, and destination port. After technical requirements, drawings, commercial terms, and payment details are confirmed, ZOKECRANE can provide a production and delivery plan.
