Overview of ZOKECRANE Seamless Conductor Rails

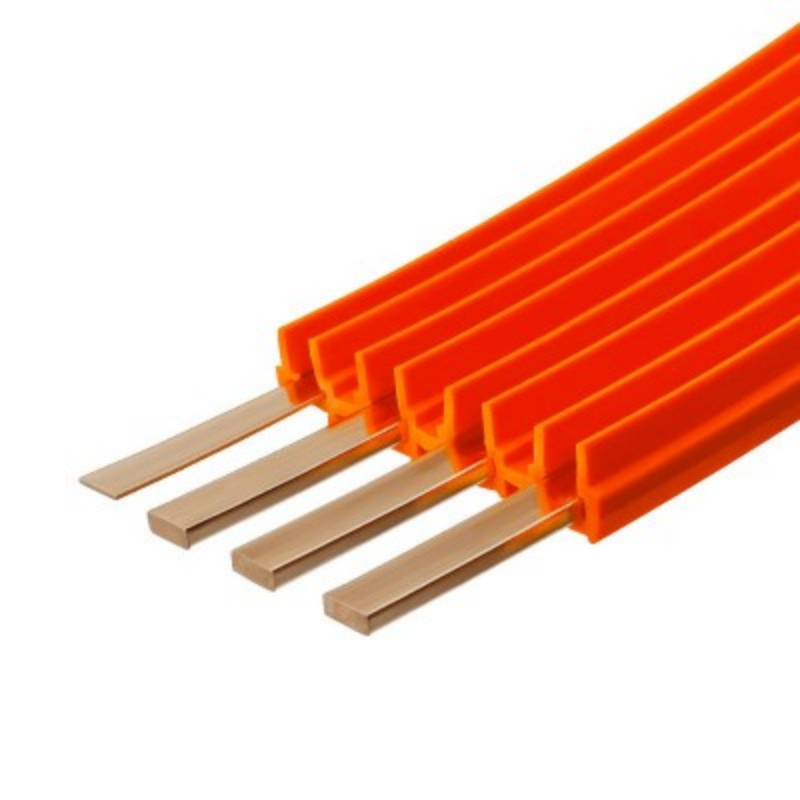

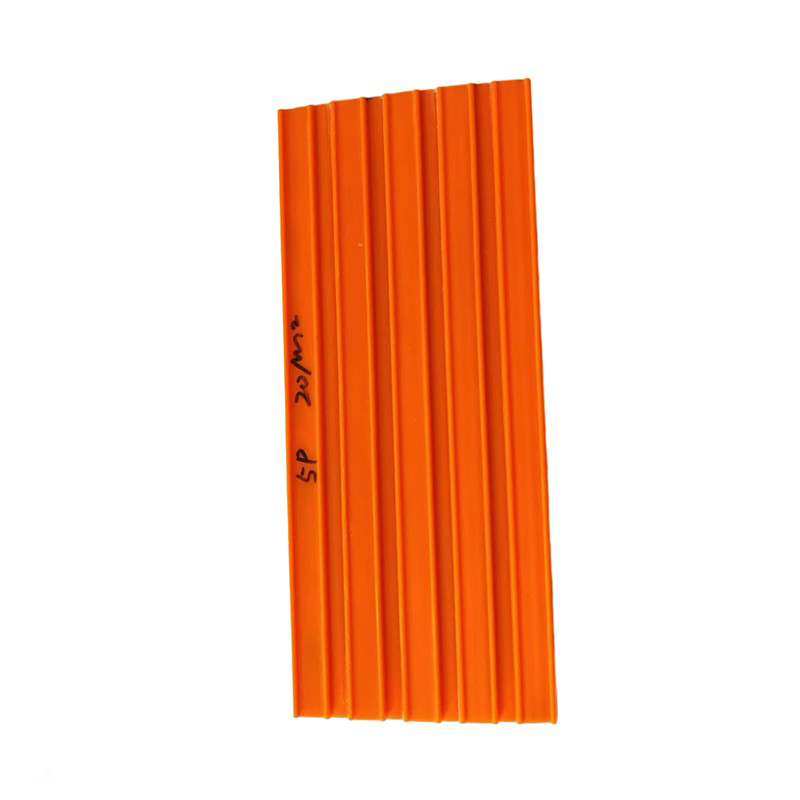

Manufactured by Henan Zoke Crane Co., Ltd., ZOKECRANE seamless conductor busbars feature oxygen-free copper conductors encased in rigid, flame-retardant PVC insulation housings. Supplied in continuous jointless coils (up to several hundred meters per roll), our conductor rails eliminate the electrical arcing and carbon brush wear typical of traditional multi-joint busbars. Available in 3-pole, 4-pole, and 6-pole configurations, they provide safe and compact power solutions for single girder cranes, curved monorails, and high-speed automated storage systems.
Key Technical Specifications & Parameters
| Technical Parameter | Seamless Conductor Rail Specification |
|---|---|
| Product Type | Seamless / Jointless Insulated Conductor Busbar System |
| Pole Configuration | 3 Poles, 4 Poles, 6 Poles (Enclosed single housing) |
| Rated Ampacity (Current) | 35A, 50A, 80A, 100A, 120A, 140A, 200A |
| Conductor Material | 99.9% High-purity oxygen-free electrolytic copper (Cu) |
| Insulation Sheath Material | Rigid flame-retardant PVC / High-temperature resistant plastic (-20°C to +75°C) |
| Rated Voltage | AC 380V, 440V, 660V (50Hz / 60Hz) |
| Enclosure Protection Class | IP23 Finger-safe touchproof protection rating |
| System Components | Seamless rail coil, current collectors, tensioners, hangers, power feed units |
| Certifications & Standards | ISO 9001 Quality System, CE Certified, SGS Verified, IEC 60529 Compliant |
Core Product Advantages & Engineering Features
- Jointless Continuous Copper Line: Supplied in continuous rolls without intermediate joints, eliminating contact arcing, voltage drops, and mechanical snagging during high-speed collector travel.
- IP23 Safe Touchproof Protection: Enclosed PVC casing fully insulates the live copper conductors, protecting operators and maintenance personnel against accidental contact.
- Low Maintenance & Extended Brush Life: Smooth joint-free conductor channels reduce wear on current collector carbon brushes by up to 60%, significantly lowering maintenance costs.
- Compact & Flexible Layout: Small cross-sectional profile supports tight bending radiuses, making it ideal for curved monorail tracks, ring systems, and low-headroom workshop bays.
Industrial Applications of Seamless Conductor Rails
ZOKECRANE seamless insulated conductor rails provide efficient mobile electrification across diverse automated and overhead handling applications worldwide:
1. Single & Double Girder Overhead Cranes
Serves as main bridge power lines and trolley power supply systems for light-to-medium industrial overhead traveling cranes.
2. Monorail Hoists & Curved Track Systems
Ideal for flexible monorail hoists, curved production transport lines, and circular ring crane runways.
3. Automated Storage & Retrieval Systems (ASRS)
High-speed, spark-free electrification for automated stacker cranes, shuttle cars, and high-bay warehouse logistics equipment.
4. Amusement Rides & Testing Lines
Provides smooth, continuous mobile power for factory assembly testing tracks, automated monorail rides, and moving display platforms.
Frequently Asked Questions (Product FAQs)
What are the primary benefits of a seamless conductor rail over a traditional jointed busbar?
Traditional busbars consist of short 4-meter or 6-meter rigid sections connected by mechanical joints, which cause electrical arcing, collector brush chipping, and voltage drop over time. Seamless Conductor Rails are pulled as a single continuous line from a coil, eliminating all intermediate joints for smooth current collection, longer brush life, and zero contact sparks.
How long can a single roll of seamless conductor rail be installed without joints?
Depending on conductor cross-section and amperage rating, a single coil of seamless rail can extend up to 100–300+ meters without a single joint, covering the entire length of most factory crane runways.
What current collector is used with seamless conductor busbars?
We supply specialized multi-pole current collectors equipped with spring-loaded carbon brushes and flexible tension arms. The collectors ride inside the enclosed PVC housing, maintaining continuous spring pressure against the oxygen-free copper strips.
Can seamless conductor rails be installed outdoors?
Yes. Our PVC sheaths are formulated with UV-stabilized and weather-resistant additives. For extreme outdoor environments, rainproof cover accessories and IP23-rated protection caps are installed to prevent water accumulation.
Export & Logistics FAQs for International Buyers
Which international markets does ZOKECRANE export seamless conductor rails to?
ZOKECRANE conductor busbar systems and crane accessories are exported globally, supplying crane builders and electrical contractors in Russia, Uzbekistan, the Philippines, Bangladesh, Australia, Qatar, Tanzania, Singapore, Saudi Arabia, Brazil, Nigeria, and many other international markets.
How are seamless conductor rail rolls packaged for sea freight shipping?

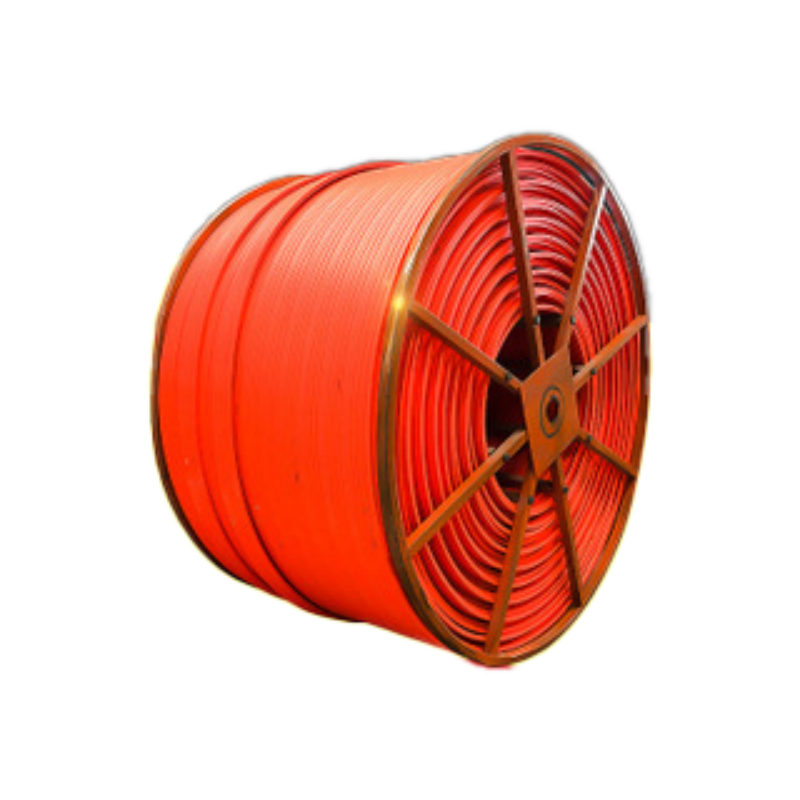

Continuous conductor rails are coiled onto sturdy wooden or plastic reels, vacuum-wrapped with moisture-proof anti-corrosion film, and packaged in export-standard wooden crates or wooden pallets. Current collectors, tensioners, and mounting brackets are packed in separate cartons.
What quality test reports and certifications accompany ZOKECRANE conductor rails?
Every shipment is accompanied by complete quality assurance documentation, including ISO 9001 compliance, European CE certificates, EN 60529 protection rating sheets, electrical conductivity test reports, and SGS verification upon request.
What shipping terms and manufacturing lead times do you offer?
We support standard international commercial terms including FOB, CIF, CFR, DDU, and DDP. Standard seamless conductor rail models (35A to 120A, 3/4/6 poles) are kept in stock with fast lead times of 5 to 10 business days; large volume or custom amperage orders take 12 to 20 business days.
Does ZOKECRANE supply complete installation accessories and manuals?
Yes. We provide complete turn-key electrification packages, including the seamless rail coils, current collectors, jointless tensioners, sliding hangers, fixed hangers, end feeds, and line feeds. Detailed step-by-step installation guides and 24/7 remote video technical support are provided to ensure seamless setup on site.
