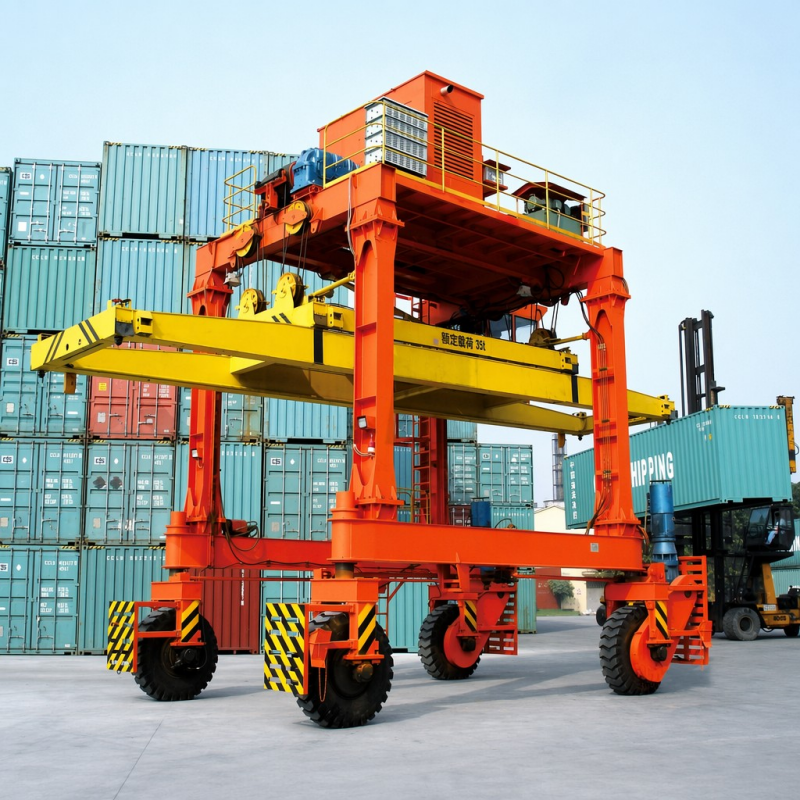

Overview of ZOKECRANE Rubber-Tired Container Straddle Carrier
Manufactured by Henan Zoke Crane Co., Ltd., ZOKECRANE straddle carriers combine robust structural engineering with advanced diesel-electric or hybrid drive technology. Featuring multi-wheel steering systems, telescopic container spreaders, and ergonomic high-visibility operator cabins, our rubber-tired straddle carriers provide flexible 1-over-2 or 1-over-3 container stacking solutions tailored to international port logistics needs.
Key Technical Specifications & Parameters
| Technical Parameter | Straddle Carrier Specification |
|---|---|
| Equipment Type | Rubber-Tired Container Straddle Carrier |
| Rated Lifting Capacity (SWL) | 35 Tons to 60 Tons (Under Spreader) |
| Applicable Container Sizes | 20ft, 40ft, 45ft ISO standard containers, twin-twenty lifting optional |
| Stacking Height Capability | 1-over-1, 1-over-2, 1-over-3 (Custom stacking heights available) |
| Drive & Power System | Diesel-Electric Drive / Diesel-Hydraulic / Eco-Hybrid System |
| Steering Modes | Multi-wheel steering (All-wheel steer, Crab steer, Pivot turn) |
| Travel Speed | 0 to 30 km/h (Loaded) / 0 to 32 km/h (Unloaded) |
| Operator Cabin | Ergonomic top-mounted cabin with 360-degree panoramic glass and AC |
| Certifications & Compliance | ISO 9001, CE Certified, SGS Verified |
Core Product Advantages & Mobility Features
- Dual Functionality (Transport + Stacking): Combines horizontal container transport and vertical yard stacking into a single machine, eliminating the need for separate yard tractors and reach stackers.
- Exceptional Maneuverability: Multi-wheel electro-hydraulic steering enables crab steering, sharp pivot turns, and tight turning radiuses within narrow terminal aisles.
- Fuel Efficiency & Hybrid Options: Eco-friendly diesel-electric and hybrid power systems deliver lower fuel consumption, reduced exhaust emissions, and minimized maintenance costs.
- Precision Anti-Sway Control: Advanced hydraulic or electronic anti-sway technology ensures rapid spreader positioning and steady container placement on road trucks and yard stacks.
Industrial Applications of Container Straddle Carriers
ZOKECRANE rubber-tired container straddle carriers offer agile material handling performance across major logistics and intermodal transport hubs globally:

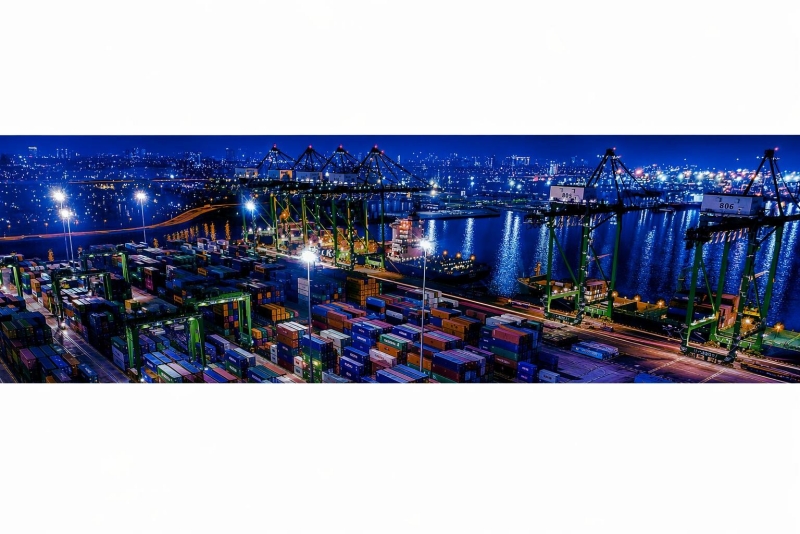

1. Sea Port Container Terminals
Transports containers directly between ship-to-shore (STS) quay cranes and container storage yards with rapid cycle times.
2. Intermodal Rail Terminals & Dry Ports
Facilitates efficient loading, unloading, and transfers of containers between railway cars, highway trucks, and storage stacks.
3. Logistics Depots & Bonded Warehouses
Provides flexible yard management, sorting, and high-density stacking for import/export shipping containers.
4. Industrial Manufacturing & Precast Yards
Customized straddle carrier variants are used for lifting and moving heavy wind turbine blades, precast concrete beams, and steel coils.
Frequently Asked Questions (Product FAQs)

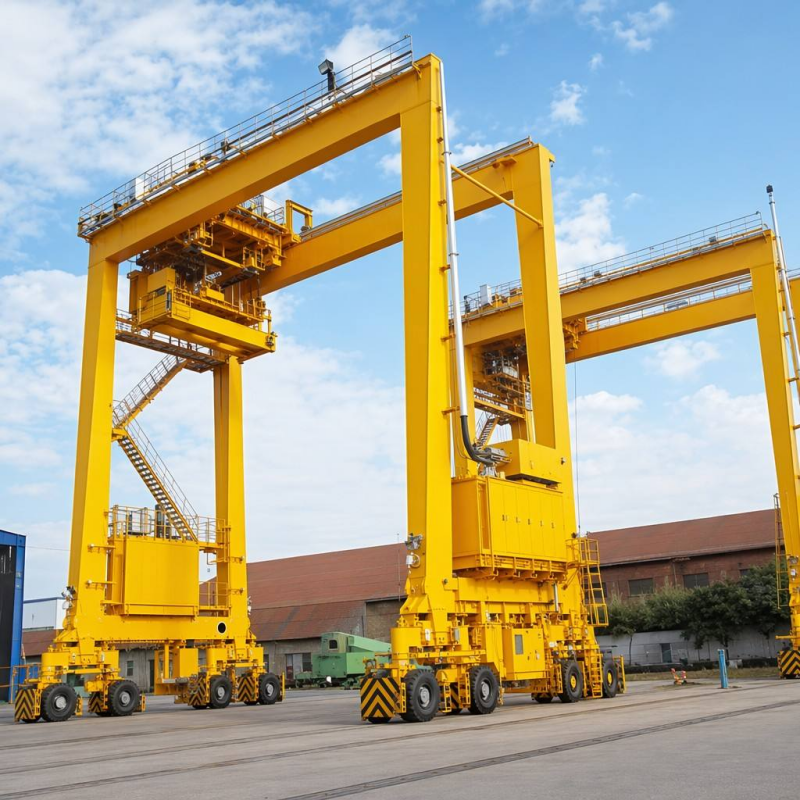

What are the primary operational benefits of a straddle carrier over an RTG crane?
While Rubber-Tired Gantry (RTG) cranes specialize in high-density yard stacking, straddle carriers combine horizontal transport and stacking into a single vehicle. They do not rely on terminal tractors for yard transfer, providing faster end-to-end container cycle times and greater fleet operational flexibility.
What container stacking heights can ZOKECRANE straddle carriers achieve?
ZOKECRANE manufactures straddle carriers capable of 1-over-1, 1-over-2, and 1-over-3 stacking heights, allowing terminals to optimize container yard capacity based on ground pressure and operational requirements.
What steering modes are available to navigate narrow yard aisles?
Our straddle carriers feature multi-wheel steering systems capable of standard front/rear steering, all-wheel steering, crab steering (diagonal movement), and pivot turning (turning in place) to maneuver easily in tight spaces.
Are hybrid or fully electric powertrains available?
Yes. In addition to fuel-efficient diesel-electric models, ZOKECRANE offers eco-hybrid and lithium-battery fully electric options to help ports reduce emissions and meet international green port standards.
Export & Logistics FAQs for International Buyers
Which international markets does ZOKECRANE supply straddle carriers to?
ZOKECRANE serves container terminals and port operators globally, exporting specialized handling equipment to Russia, Uzbekistan, the Philippines, Bangladesh, Australia, Qatar, Tanzania, Singapore, Saudi Arabia, Brazil, Nigeria, and many other international regions.
How are rubber-tired straddle carriers packaged and shipped overseas?
Due to their height and structure, straddle carriers are modularly dismantled prior to export. Heavy steel frames and wheel assemblies are protected with anti-corrosion marine wraps for Ro-Ro or breakbulk shipping. Electrical panels, engines, and hydraulic units are vacuum-sealed in export-grade fumigated wooden cases.
What international quality and safety certifications accompany ZOKECRANE equipment?
All ZOKECRANE container handling equipment is certified under ISO 9001 Quality Management Systems, European CE standards, and verified by SGS third-party quality inspections.
What commercial shipping terms and manufacturing lead times do you offer?
We provide flexible commercial terms including FOB, CIF, CFR, DDU, and DDP. Depending on capacity, power system specification, and customization requests, standard manufacturing lead times range from 40 to 60 business days.
How does ZOKECRANE handle overseas installation, commissioning, and training?
We provide comprehensive assembly manuals, electrical wiring diagrams, and step-by-step video tutorials. Furthermore, ZOKECRANE dispatches experienced field engineers directly to overseas port sites to supervise mechanical assembly, perform system commissioning, and conduct local operator safety training.
