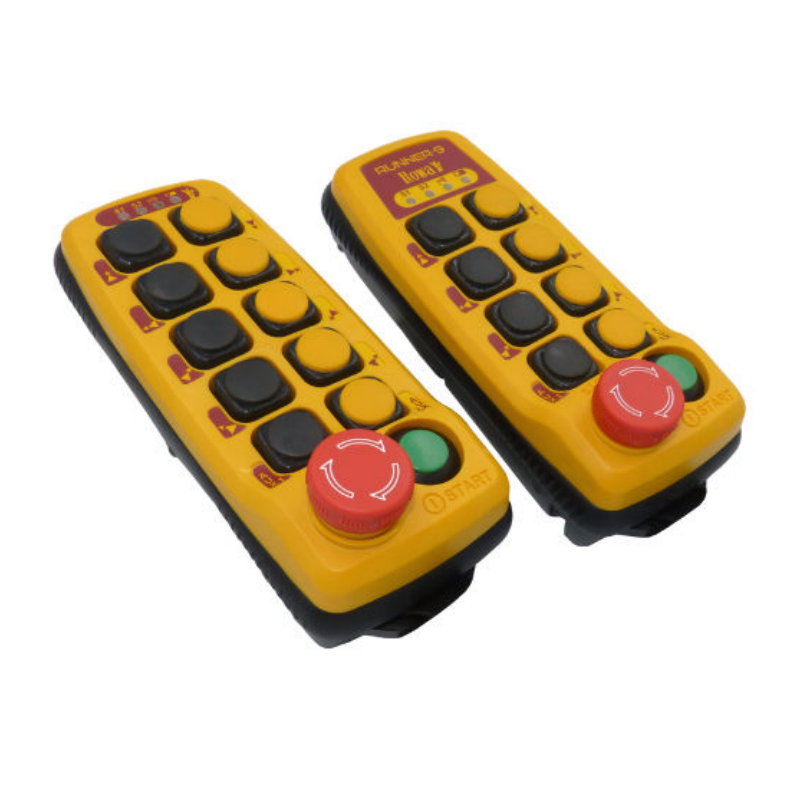

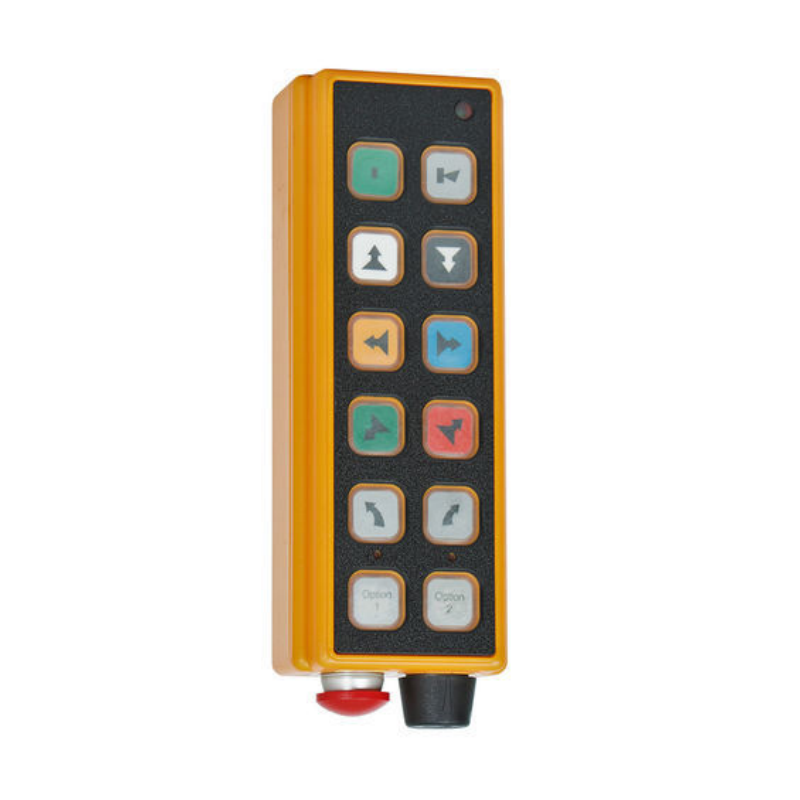

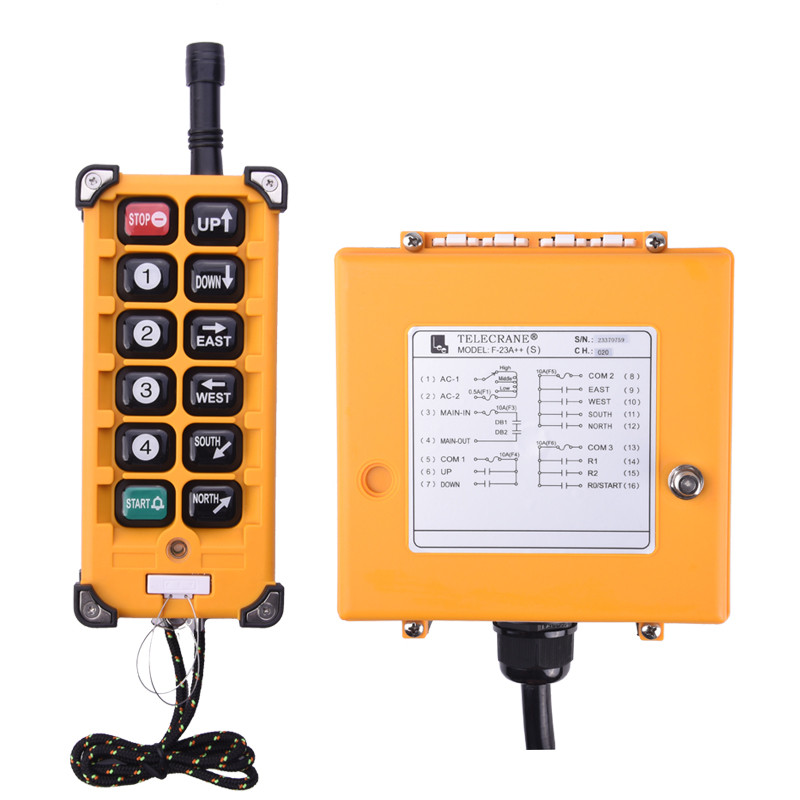

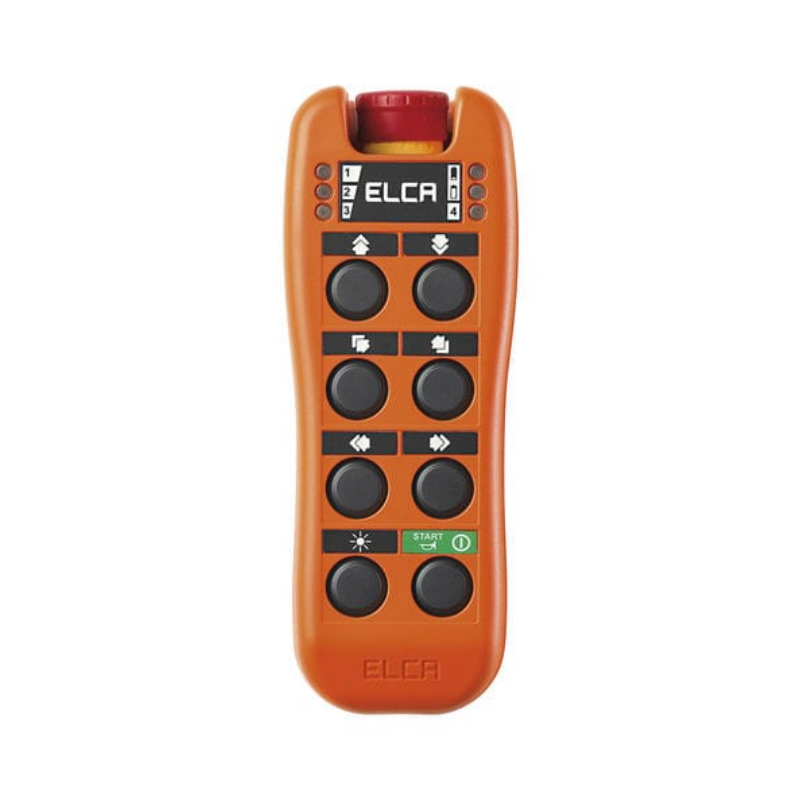

Overview of ZOKECRANE Push-Button Radio Remote Controls
Manufactured by Henan Zoke Crane Co., Ltd., ZOKECRANE push-button wireless remote control systems consist of an ergonomic hand-held transmitter and a high-sensitivity receiver unit. Available in 2, 4, 6, 8, 10, and 12 push-button configurations (single-speed or double-speed), our wireless control systems utilize advanced Hamming code error detection and 32-bit unique security ID codes to ensure zero signal interference, high response speed, and absolute operational safety.
Key Technical Specifications & Parameters
| Technical Parameter | Push-Button Remote Control Specification |
|---|---|
| Product Type | Push-Button Crane Industrial Wireless Radio Remote Control |
| Button Configuration | 2, 4, 6, 8, 10, 12 Push Buttons (Single-Speed / Double-Speed option) + Emergency Stop + Rotary Key |
| Control Distance | Up to 100 meters (Extended range options up to 200m available) |
| Frequency Range | VHF: 310–331 MHz / UHF: 425–446 MHz (4.3 billion unique security codes) |
| Transmitter Power Supply | 2 x AA Alkaline Batteries / Rechargeable Lithium Battery Pack |
| Receiver Power Supply | AC/DC 24V, 36V, 110V, 220V, 380V, 440V (50Hz/60Hz) |
| Enclosure Protection Rating | IP65 Dustproof & Waterproof (High impact-resistant fiberglass enclosure) |
| Operating Temperature | -35°C to +80°C (Extreme temperature resistant housing) |
| Certifications & Standards | ISO 9001 Quality System, CE Certified, FCC Certified, SGS Verified |
Core Product Advantages & Safety Features
- Ergonomic & Rugged Design: Housed in glass-fiber reinforced plastic (PA66) that is oil-resistant, acid-resistant, flame-retardant, and drop-proof for harsh industrial shops.
- Zero Signal Cross-Talk: Incorporates over 4.3 billion unique security ID codes and automated frequency hopping to prevent unintended operation or signal conflict with neighboring cranes.
- Safety Emergency Stop (E-Stop): Features a prominent mushroom-head emergency stop button compliant with international safety standards, instantly cutting off crane motion during emergencies.
- Low Power Consumption & Easy Pairing: Long transmitter battery operating life (up to 2–3 months on standard batteries) with simple wireless transmitter-receiver pairing functions.
Industrial Applications of Push-Button Remote Controls
ZOKECRANE push-button industrial wireless remote controls are widely deployed across various crane types and material handling machinery globally:
1. Single & Double Girder Overhead Cranes
Allows crane operators to walk freely along the shop floor, avoiding suspended load hazards and improving sightlines during hoisting.
2. Electric Wire Rope & Chain Hoists
Provides wireless push-button control for monorail hoists, jib cranes, and workstation crane systems in assembly lines.
3. Outdoor Gantry Cranes & Portal Cranes
Weatherproof IP65 radio remotes designed for operating outdoor gantry cranes, rail-mounted container cranes, and yard hoists.
4. Industrial Winches & Conveyors
Offers safe distance control for heavy mining winches, vehicle recovery machinery, and automated material handling conveyors.
Frequently Asked Questions (Product FAQs)
What is the difference between single-speed and double-speed push buttons?
Single-Speed Buttons have one contact position, suitable for standard single-speed crane motors (on/off). Double-Speed Buttons have two tactile pressure steps: pressing lightly operates the crane at slow speed for precision positioning, while pressing fully engages high speed for long-distance travel.
How far is the effective control range of the wireless remote control?
Standard ZOKECRANE radio remote controls deliver a reliable operating distance of up to 100 meters in typical industrial shop environments. Custom high-gain antenna models can extend this distance up to 200 meters if required.
What happens if a transmitter is lost or damaged?
Our remote control systems feature quick-pairing e-key technology. In the event a transmitter is lost or damaged, a new replacement transmitter can be paired with the existing receiver in minutes on-site without dismantling the electrical cabinet.
Can the receiver withstand high humidity, oil, or outdoor rain?
Yes. Both the transmitter and receiver enclosures are rated IP65 waterproof and dustproof, featuring heavy-duty rubber seals designed to withstand rain, high humidity, industrial oil mist, and dusty environments.
Export & Logistics FAQs for International Buyers
Which international markets does ZOKECRANE export radio remote controls to?
ZOKECRANE industrial crane accessories are supplied globally, serving crane builders, electrical integrators, and industrial users in Russia, Uzbekistan, the Philippines, Bangladesh, Australia, Qatar, Tanzania, Singapore, Saudi Arabia, Brazil, Nigeria, and many other countries worldwide.
How are push-button remote control units packaged for international shipping?
Transmitters, receivers, antennas, mounting dampeners, and wiring harnesses are vacuum-sealed in moisture-proof plastic packaging, padded with customized shock-absorbing foam, and packed in heavy-duty export-standard cartons or wooden cases.
What international quality and safety certifications accompany ZOKECRANE remote controls?
All ZOKECRANE industrial wireless remote controls are manufactured under ISO 9001 Quality Management System compliance, carry European CE certificates, FCC radio frequency approval, and are backed by SGS quality inspection reports.
What shipping terms and delivery lead times do you offer for remote control orders?
We support standard international trading terms including FOB, CIF, CFR, DDU, and DDP. Standard push-button remote models (2 to 12 buttons) are kept in stock with fast lead times of 3 to 7 business days; bulk or custom voltage orders take 10 to 15 business days.
Does ZOKECRANE supply detailed electrical wiring schematics for installation?
Yes. Every remote control set is shipped with clear color-coded wiring diagrams, user operation manuals, and installation accessories. Furthermore, our technical support team provides 24/7 remote video assistance to guide your electrical engineers through installation and commissioning.
