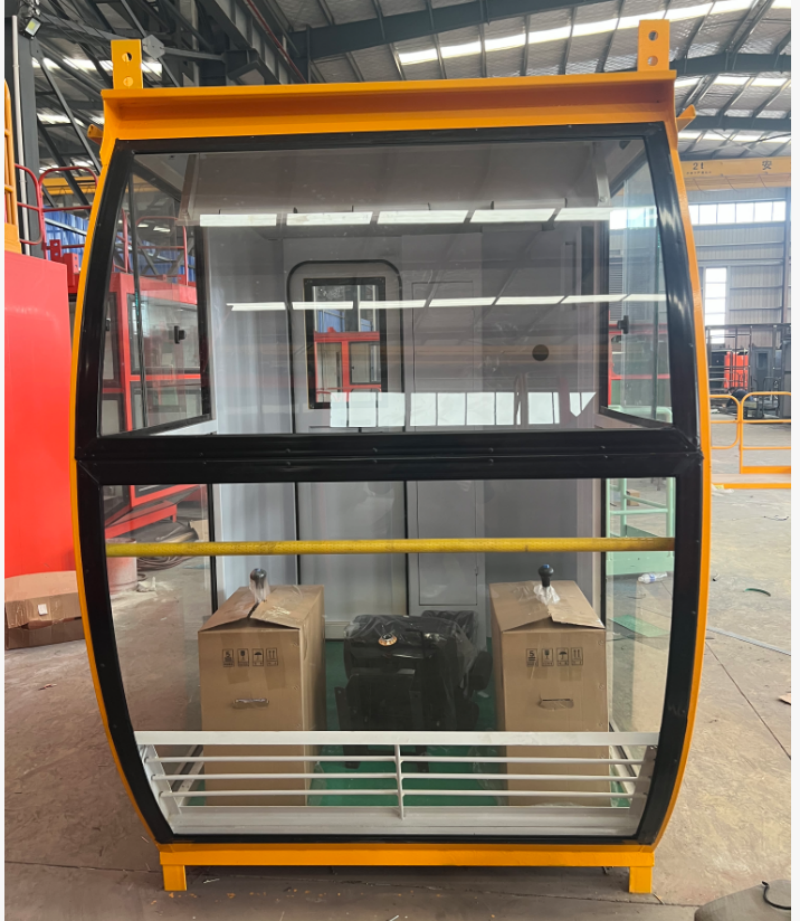

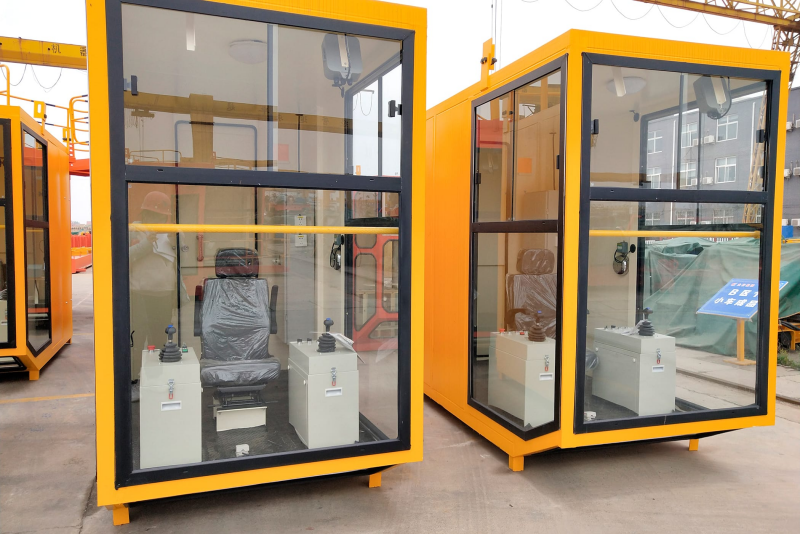

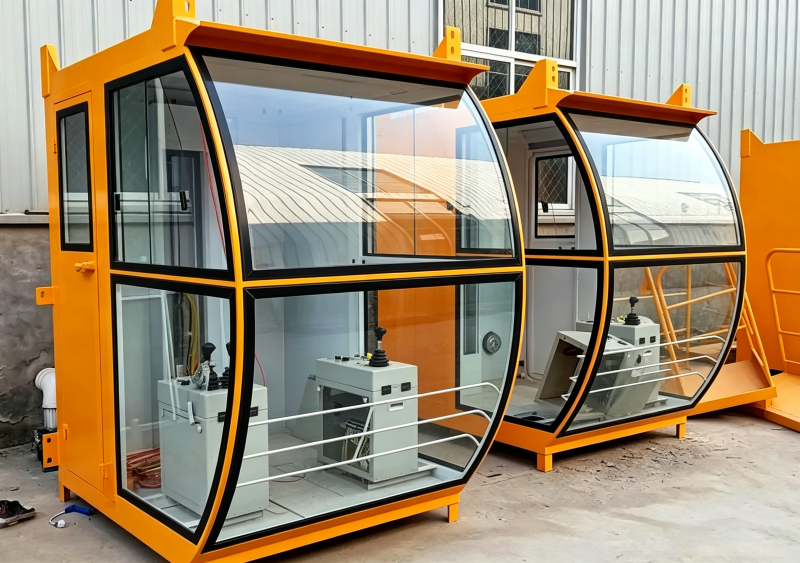

Overview of ZOKECRANE Crane Operator Cabins
Manufactured by Henan Zoke Crane Co., Ltd., ZOKECRANE crane cabins are constructed using high-grade structural steel frames, tempered safety glass, and advanced noise and thermal insulation materials. Fully compatible with overhead cranes, gantry cranes, and port cranes, our cabins can be outfitted with ergonomic linkage control chairs, industrial air conditioning, fireproof wall liners, and heat-radiation shields to meet the requirements of international industrial markets.
Key Technical Specifications & Parameters
| Technical Parameter | Crane Cabin Specification |
|---|---|
| Product Type | Enclosed Crane Operator Cabin / Open Type Operator Cab / Insulated Cabin |
| Structural Material | Cold-rolled steel sheet, high-strength structural box frame profile |
| Window & Glazing | Laminated tempered safety glass / Anti-glare tinted heat-resistant glass |
| Interior Climate Control | Heavy-duty industrial split AC, heating system, adjustable ventilation fans |
| Console & Seating | Ergonomic adjustable linkage control chair with dual joystick pods |
| Insulation Performance | Flame-retardant soundproof & thermal insulation wall lining (Rock wool/PU) |
| Operating Ambient Temp | -25°C to +70°C (Special thermal radiation shield for metallurgical shops) |
| Protection Class | IP54 / IP55 (Dustproof, weatherproof, and splashproof sealing) |
| Certifications & Standards | ISO 9001 Quality System, CE Certified, SGS Verified, ISO 8566 Compliant |
Core Product Advantages & Engineering Features
- Panoramic Unobstructed Visibility: Large tempered glass panel layouts eliminate blind spots, providing full visibility of the hoisting hook, load path, and ground work zone.
- Ergonomic Linkage Control Station: Integrated operator seats with multi-axis joystick pods reduce fatigue and streamline complex multi-motion crane movements.
- Superior Environmental Isolation: Double-sealed doors and rubber-insulated windows shield operators from extreme temperatures, ambient dust, vibration, and loud plant noise.
- Heavy-Duty Heat Shielding: For metallurgical applications, bottom and side heat radiation barriers protect internal electrical systems and operators from molten metal thermal radiation.
Industrial Applications of Crane Operator Cabins
ZOKECRANE ergonomic operator control cabins are installed on various heavy-duty cranes across diverse global industries:

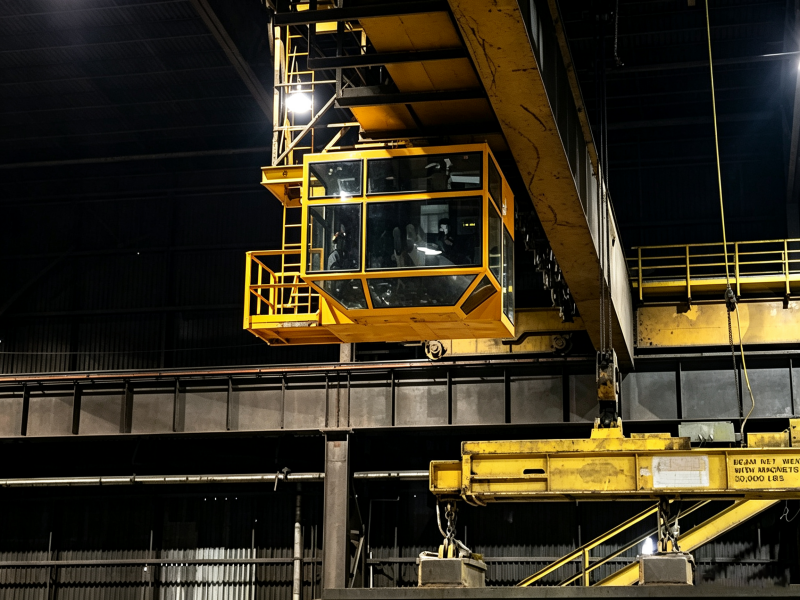

1. Overhead & Double Girder Bridge Cranes
Mounts directly under main bridge girders or trolley frames in heavy machinery fabrication and assembly workshops.
2. Metallurgical & Foundry Steel Mills
Heat-shielded, air-conditioned cabins designed for ladle cranes, charging cranes, and soaking pit cranes exposed to high radiant heat.
3. Shipyard & Container Gantry Cranes
High-visibility cabins equipped with glass floors installed on shipbuilding gantry cranes, rail-mounted container cranes (RMG), and quay cranes.
4. Mining, Port & Bulk Material Facilities
Dustproof, weather-sealed cabins mounted on grab gantry cranes, portal slewing cranes, and bulk cargo handling equipment.
Frequently Asked Questions (Product FAQs)
What is the difference between an enclosed cabin and an open cabin?
Enclosed Cabins feature fully sealed walls, tempered safety glass, and air conditioning, making them suitable for outdoor use, dusty environments, high-noise workshops, or extreme cold/heat. Open Cabins feature protective railings without full glass enclosures, suited for indoor, moderate-temperature clean workshops.
How do ZOKECRANE operator cabins withstand extreme heat in steel mills?
Our metallurgical cabins feature multi-layer thermal insulation walls, bottom thermal protection plates, heat-reflective double-glazed tempered glass, and specialized high-temperature industrial air conditioning units capable of operating in ambient temperatures up to +70°C.
Can the cabin be pre-wired with control consoles and electrical cabinets?
Yes. ZOKECRANE provides complete integrated cabin assemblies, including internal wiring, master controllers, joystick pods, lighting, air conditioners, foot pedals, and distribution boxes pre-installed and tested at our factory.
What safety glass is used in ZOKECRANE crane cabins?
We use high-impact laminated tempered safety glass that meets international safety standards. In the event of an accidental impact, the glass cracks without shattering into sharp pieces, protecting the operator from injury.
Export & Logistics FAQs for International Buyers
Which international markets does ZOKECRANE export crane cabins to?
ZOKECRANE products and crane accessories are exported worldwide, supplying industrial clients and crane builders in Russia, Uzbekistan, the Philippines, Bangladesh, Australia, Qatar, Tanzania, Singapore, Saudi Arabia, Brazil, Nigeria, and many other global markets.
How are crane cabins packaged to prevent damage during ocean shipping?
All glass windows and painted steel surfaces are covered with protective film and corner guards. Complete cabin assemblies are vacuum-sealed in moisture-proof plastic wrapping, mounted on heavy steel skid frames, and secured in export-standard fumigated wooden crates or flat-rack containers.
What quality test reports and certifications accompany ZOKECRANE crane cabins?
Every ZOKECRANE cabin is manufactured under ISO 9001 Quality Management System compliance, carries European CE safety certification, and comes with factory dimensional inspection reports, insulation test certificates, and SGS third-party verification upon request.
What shipping terms and manufacturing lead times do you offer?
We support standard international commercial terms including FOB, CIF, CFR, DDU, and DDP. Standard crane cabin sizes have a manufacturing lead time of 20 to 30 business days, while custom metallurgical or fully equipped control cabins take 30 to 40 business days.
Does ZOKECRANE provide customization based on existing crane mounting dimensions?
Yes. Our engineering department custom-designs cabin mounting brackets, dimensions, cable entry points, and internal console layouts according to your original CAD drawings, structural beam profiles, or replacement specs.
