Product Introduction
An Adjustable Portable Gantry Crane is a flexible and movable lifting solution designed with an adjustable height structure for workshops, warehouses, maintenance areas, assembly stations, repair facilities, and temporary lifting operations. Compared with a fixed-height portable gantry crane, an adjustable portable gantry crane allows the lifting height to be changed according to different working conditions, load sizes, equipment heights, and site limitations.
This type of crane usually consists of a main beam, adjustable supporting legs, base frame, height adjustment holes or locking pins, manual or electric trolley, manual chain hoist or electric hoist, wheels or casters, connecting bolts, and safety components. The adjustable structure makes it suitable for multiple lifting tasks in one working area or for different workplaces where the required lifting height may vary.
ZOKECRANE adjustable portable gantry cranes are designed and supplied by Henan Zoke Crane Co., Ltd., a professional lifting equipment manufacturer specializing in overhead cranes, gantry cranes, electric hoists, trolley mechanisms, and customized lifting solutions. Our manufacturing base is located in Changyuan, Henan Province, one of China’s major crane production centers. With extensive experience in crane engineering, structural design, manufacturing, and quality control, ZOKECRANE provides practical and reliable adjustable portable gantry crane solutions for global customers.
The adjustable portable gantry crane is especially suitable for customers who need a flexible lifting system but do not want to install a permanent overhead crane runway. It can be moved manually or by suitable traveling wheels within a working area, and the height can be adjusted according to the lifting task. This helps improve working efficiency, reduce installation cost, and increase the flexibility of lifting operations.
Depending on customer requirements, ZOKECRANE can provide adjustable portable gantry cranes with steel structure or aluminum structure. Steel adjustable gantry cranes are suitable for heavier industrial applications and higher strength requirements, while aluminum adjustable gantry cranes are suitable for light-duty lifting, easy movement, clean environments, and maintenance operations. The crane can also be equipped with manual chain hoists, electric chain hoists, wire rope electric hoists, manual trolleys, geared trolleys, or electric trolleys according to application needs.
The crane can be designed with bolted connections and modular structures, making it convenient for disassembly, packaging, export shipment, and on-site assembly. For overseas projects, ZOKECRANE can provide technical drawings, installation instructions, operation manuals, packing lists, inspection documents, and export documents according to customer needs.
With ISO, CE, and SGS certifications, ZOKECRANE continuously improves product structure, manufacturing processes, and quality control standards to better serve international markets. Our products have been supplied to customers in Russia, Uzbekistan, the Philippines, Bangladesh, Australia, Qatar, Tanzania, Singapore, Saudi Arabia, Brazil, Nigeria, and many other countries and regions. ZOKECRANE remains committed to providing reliable crane equipment, professional technical support, and customized lifting solutions for global customers.
Main Features of ZOKECRANE Adjustable Portable Gantry Crane
- Adjustable height design for different lifting tasks
- Portable and movable structure for flexible use
- Suitable for workshops, warehouses, repair areas, and temporary lifting sites
- Can be equipped with manual chain hoist or electric hoist
- Manual trolley, geared trolley, or electric trolley options available
- Steel structure or aluminum structure available
- Bolted connection design for easy assembly and disassembly
- Can be moved by wheels or casters on flat and solid ground
- Brake casters or locking wheels available for safer positioning
- Compact structure suitable for limited working space
- No fixed runway or permanent building structure required
- Customizable lifting capacity, span, lifting height, and adjustment range
- Suitable for equipment repair, mold handling, assembly, loading, and unloading
- Export packaging and technical documentation available
- ISO, CE, and SGS certifications available
Main Components
An adjustable portable gantry crane includes several important components that work together to provide safe and flexible lifting operations.
| Component | Description | Function |
|---|---|---|
| Main Beam | The horizontal beam installed at the top of the gantry crane. | Supports the trolley and hoist and bears the lifting load. |
| Adjustable Supporting Legs | Vertical or A-frame support structures with adjustable height positions. | Allow the crane height to be changed according to working requirements. |
| Height Adjustment Holes | Pre-designed holes on the supporting legs. | Provide different height adjustment positions. |
| Locking Pins | Mechanical pins used to secure the adjusted height position. | Keep the crane structure stable after height adjustment. |
| Base Frame | Bottom support structure connected with wheels or casters. | Provides stability and supports crane movement. |
| Manual or Electric Trolley | Trolley mounted on the main beam. | Allows the hoist and load to move horizontally along the beam. |
| Manual Chain Hoist or Electric Hoist | Lifting device suspended from the trolley. | Lifts and lowers the load. |

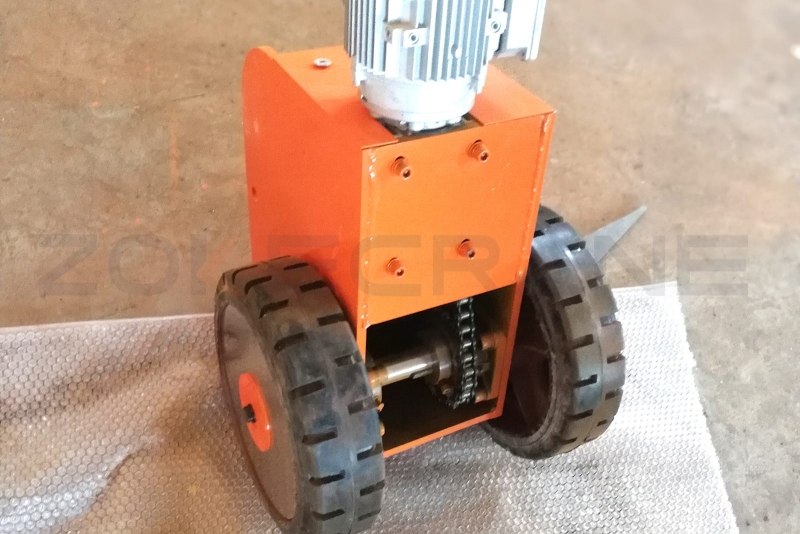

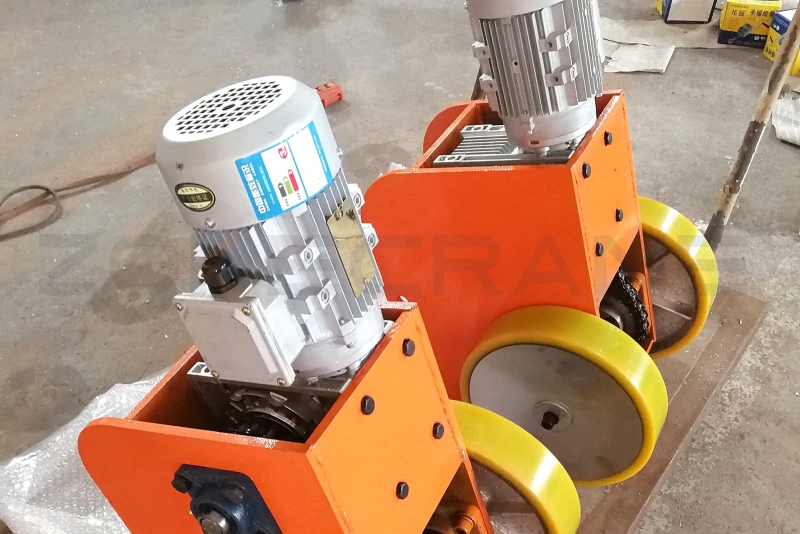

| Wheels or Casters | Movable wheels installed at the bottom of the crane. | Allow the gantry crane to be moved within the working area. |

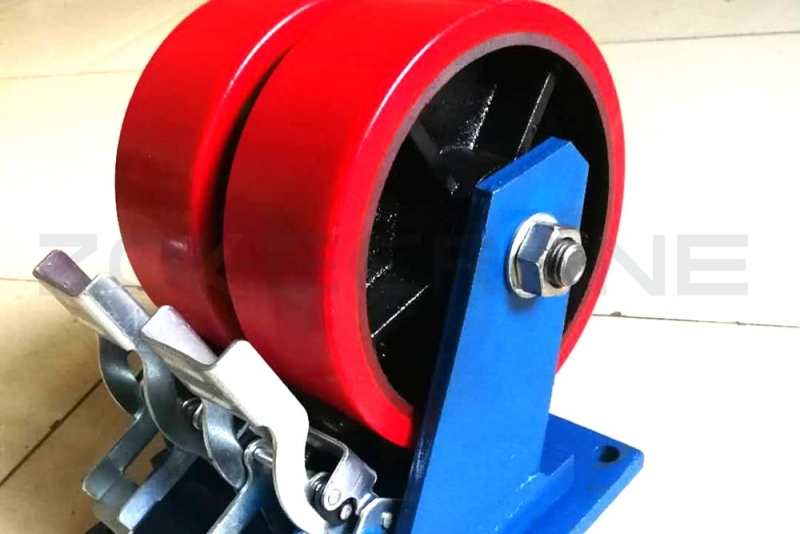

| Brake Casters | Optional casters with braking function. | Help keep the crane in position during lifting or load positioning. |
| Connecting Bolts | Bolts and fasteners used for structural connection. | Make assembly, disassembly, transportation, and maintenance easier. |
| End Stopper | Stopper installed at both ends of the main beam. | Helps prevent the trolley from moving beyond the beam end. |
| Safety Latch | Safety device installed on the hook. | Helps prevent the load from accidentally slipping off the hook. |
Common Types of Adjustable Portable Gantry Crane
ZOKECRANE can provide different adjustable portable gantry crane types according to structure, material, lifting mechanism, and working environment.
| Type | Description | Typical Application |
|---|---|---|
| Adjustable Height Portable Gantry Crane | Portable gantry crane with height adjustment positions. | Workshops, warehouses, repair areas, general lifting tasks |
| Adjustable A-Frame Gantry Crane | A-frame structure with adjustable height legs. | Maintenance workshops, machine shops, garages, assembly stations |
| Adjustable Steel Portable Gantry Crane | Steel structure crane with higher strength and stable lifting performance. | Industrial workshops, mold handling, machinery repair, medium-duty lifting |
| Adjustable Aluminum Portable Gantry Crane | Lightweight aluminum structure with easy movement and assembly. | Light-duty lifting, laboratories, clean rooms, mobile maintenance work |
| Manual Adjustable Portable Gantry Crane | Equipped with manual trolley and manual chain hoist. | No-power areas, occasional lifting, repair and installation work |
| Electric Adjustable Portable Gantry Crane | Equipped with electric hoist or electric trolley for higher lifting efficiency. | Frequent lifting, assembly lines, production support, warehouse handling |
| Customized Adjustable Mobile Gantry Crane | Designed according to special lifting capacity, span, height, wheel type, or application requirements. | Non-standard workshops, special maintenance tasks, customized lifting projects |
Typical Technical Parameters
The following parameters are for general reference. ZOKECRANE can customize adjustable portable gantry cranes according to customer site conditions and lifting requirements.
| Item | Specification |
|---|---|
| Product Name | Adjustable Portable Gantry Crane |
| Alternative Name | Adjustable Height Portable Gantry Crane / Portable Adjustable Gantry Crane / Adjustable Mobile Gantry Crane |
| Structure Type | Portable gantry frame / A-frame gantry crane / adjustable gantry crane |
| Lifting Capacity | 0.5 ton, 1 ton, 2 ton, 3 ton, 5 ton or customized |
| Span | Customized according to working area |
| Lifting Height | Customized according to site requirement |
| Height Adjustment | Pin-hole adjustment / mechanical adjustment / customized adjustment |
| Adjustment Range | Customized according to lifting height requirement |
| Hoist Type | Manual chain hoist / electric chain hoist / wire rope electric hoist optional |
| Trolley Type | Manual push trolley / geared trolley / electric trolley optional |
| Material | Steel structure / aluminum structure |
| Traveling Method | Manual movement by wheels or casters |
| Wheel Type | Universal caster / brake caster / polyurethane wheel / rubber wheel / steel wheel |

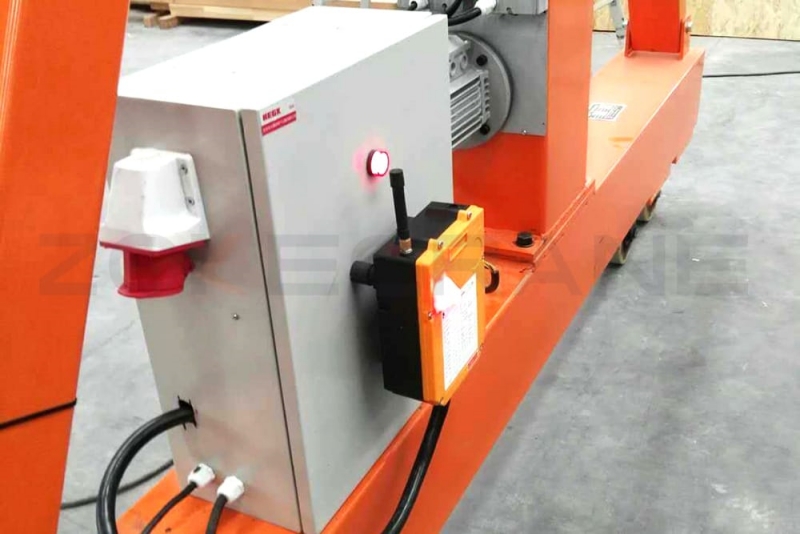

| Control Method | Manual operation or electric operation optional |
| Power Supply | Not required for manual type; customized voltage for electric hoist |
| Installation | Movable floor-type structure, no fixed runway required |
| Application | Lifting, maintenance, assembly, repair, loading, unloading, equipment positioning |
| Certification | ISO, CE, SGS available |
Applications of Adjustable Portable Gantry Crane
Adjustable portable gantry cranes are widely used in workplaces where lifting height requirements change frequently or where fixed lifting systems are not practical.
Workshops and Production Areas
In workshops and production areas, adjustable portable gantry cranes can be used to lift mechanical parts, tools, motors, molds, workpieces, and production components. The adjustable height design allows the crane to adapt to different workstations and lifting requirements.
Machinery Maintenance and Repair
For maintenance operations, this crane can help lift motors, pumps, gearboxes, bearings, valves, machine parts, and equipment components. The movable structure allows operators to bring the crane close to the repair point, while the adjustable height helps match different equipment sizes.
Warehouses and Material Handling Areas
In warehouses, adjustable portable gantry cranes can assist with lifting and moving spare parts, heavy goods, packages, pallets, tools, and machinery components. It is especially useful for occasional lifting tasks where permanent crane systems are not installed.
Mold Handling and Assembly Work
The crane can be used for mold installation, die handling, component assembly, and load positioning. The adjustable height makes it easier to lift and position loads at different working heights.
Loading and Unloading Operations
For small-scale loading and unloading operations, an adjustable portable gantry crane can help lift goods from trucks, pallets, worktables, or storage areas. It is suitable for workshops, garages, repair shops, and temporary handling sites.
Construction and Temporary Work Sites
The crane can be used at temporary work sites for equipment installation, pipe handling, mechanical assembly, and short-term lifting operations. Its adjustable height and movable structure make it practical for changing site conditions.
Laboratories, Clean Areas, and Technical Facilities
Adjustable aluminum portable gantry cranes or compact models can be used in laboratories, clean rooms, testing facilities, and technical areas for lifting instruments, testing equipment, and precision components.
Remote or No-Power Working Areas
Manual adjustable portable gantry cranes can work with manual chain hoists and manual trolleys, making them suitable for remote areas or workplaces without stable power supply.
Why Choose ZOKECRANE Adjustable Portable Gantry Crane?
Professional Crane Manufacturer
ZOKECRANE is operated by Henan Zoke Crane Co., Ltd., a professional lifting equipment manufacturer specializing in overhead cranes, gantry cranes, electric hoists, crane trolley mechanisms, and customized lifting solutions. Our manufacturing base is located in Changyuan, Henan Province, one of China’s major crane production centers.
Adjustable and Flexible Design
The adjustable height structure allows the crane to adapt to different load sizes, lifting heights, workstations, and site restrictions. This helps customers use one crane for multiple lifting tasks.
Customizable Lifting Solution
ZOKECRANE can customize adjustable portable gantry cranes according to lifting capacity, span, lifting height, adjustment range, material, hoist type, trolley type, wheel type, working environment, and customer project requirements.
Reliable Structure and Quality Control
ZOKECRANE focuses on material selection, structural design, welding quality, machining accuracy, wheel assembly, hoist matching, surface treatment, inspection, packaging, and delivery control. Our ISO, CE, and SGS certifications support our commitment to product reliability and international market requirements.
Convenient Assembly and Export Shipment
The crane can be designed with modular structures and bolted connections, making it convenient for disassembly, packaging, container loading, overseas shipment, and on-site assembly.
International Project Experience
ZOKECRANE products have been supplied to customers in Russia, Uzbekistan, the Philippines, Bangladesh, Australia, Qatar, Tanzania, Singapore, Saudi Arabia, Brazil, Nigeria, and many other countries and regions. We understand the needs of international customers and can provide practical export support.
Professional Technical Support
ZOKECRANE can provide product selection support, technical drawings, installation guidance, operation manuals, maintenance manuals, inspection documents, spare parts recommendations, and remote technical assistance for overseas customers.
Frequently Asked Questions About Adjustable Portable Gantry Crane
1. What is an adjustable portable gantry crane?
An adjustable portable gantry crane is a movable gantry crane with an adjustable height structure. It can be moved within a working area and adjusted to different heights according to lifting requirements, load sizes, and site conditions.
2. What is the difference between an adjustable portable gantry crane and a fixed-height portable gantry crane?
A fixed-height portable gantry crane has a fixed lifting height and overall height. An adjustable portable gantry crane allows the height to be changed, making it more suitable for different lifting tasks, workstations, and working environments.
3. How is the height adjusted?
The height is usually adjusted by height adjustment holes, locking pins, mechanical adjustment devices, or customized adjustment mechanisms. Operators should adjust the height according to the installation manual and safety instructions.
4. Can the crane be adjusted while carrying a load?
In general, the height should not be adjusted while the crane is carrying a load. The load should be removed, and the crane should be unloaded before height adjustment. Operators should follow the product manual and site safety requirements.
5. What lifting capacity can ZOKECRANE provide?
Common lifting capacities include 0.5 ton, 1 ton, 2 ton, 3 ton, and 5 ton. Other capacities can be customized according to project requirements.
6. Can the span be customized?
Yes. ZOKECRANE can customize the span according to the customer’s working area, load dimensions, lifting height, workshop layout, and application requirements.
7. What hoist can be used with an adjustable portable gantry crane?
It can be equipped with a manual chain hoist, lever hoist, electric chain hoist, wire rope electric hoist, manual trolley, geared trolley, or electric trolley according to the lifting capacity, working frequency, power supply, and customer requirements.
8. Can the crane be moved under load?
Moving a portable gantry crane under load should be handled carefully and only if the crane design and safety instructions allow it. For most applications, the load should be lowered and secured before moving the crane. Always follow the operation manual and workplace safety regulations.
9. What ground condition is required?
The crane should be used on flat, solid, and level ground. The floor should have enough load-bearing capacity to support the crane, load, and movement. Uneven, soft, or sloped ground may affect safety and stability.
10. Is the crane suitable for outdoor use?
It can be used for some outdoor temporary applications if the structure, wheels, surface treatment, and working environment are properly considered. For long-term outdoor use, anti-corrosion protection, wind conditions, ground condition, and safety measures should be confirmed.
11. What information is needed for quotation?
To provide a suitable adjustable portable gantry crane solution, please provide:
- Lifting capacity
- Span
- Required lifting height
- Overall height limitation
- Height adjustment range
- Number of height adjustment levels, if required
- Steel or aluminum structure requirement
- Manual hoist or electric hoist requirement
- Manual trolley or electric trolley requirement
- Wheel type and ground condition
- Indoor or outdoor use
- Working frequency
- Load type and load dimensions
- Destination country or port
- Power supply, if electric hoist is required
- Special safety or certification requirements
- Packaging and shipping requirements
12. Can ZOKECRANE provide spare parts?
Yes. ZOKECRANE can provide spare parts such as manual chain hoists, electric hoists, manual trolleys, wheels, casters, brake casters, bolts, pins, hooks, chains, bearings, end stoppers, adjustment pins, locking devices, and customized accessories.
Export and Logistics FAQ for ZOKECRANE Adjustable Portable Gantry Crane
1. Can ZOKECRANE export adjustable portable gantry cranes overseas?
Yes. ZOKECRANE has experience in exporting crane equipment and lifting components to international markets. Our products have been supplied to customers in Russia, Uzbekistan, the Philippines, Bangladesh, Australia, Qatar, Tanzania, Singapore, Saudi Arabia, Brazil, Nigeria, and many other countries and regions.
2. How is the adjustable portable gantry crane packed for export?
Adjustable portable gantry cranes are usually packed in disassembled condition to reduce package size and shipping cost. Main beams, adjustable legs, base frames, wheels, hoists, trolleys, bolts, pins, locking devices, and accessories can be packed with export-standard wooden cases, steel frames, pallets, waterproof wrapping, or customized packaging according to customer requirements.
3. Can the crane be shipped by sea?
Yes. Adjustable portable gantry cranes can be shipped by sea freight, including LCL shipment and FCL shipment. Because the crane can be disassembled, it is suitable for economical container loading and international shipping.
4. Can the crane be shipped by air or courier?
Small components, spare parts, manual chain hoists, trolleys, casters, adjustment pins, locking devices, and urgent replacement parts can be shipped by air freight or international courier. Complete gantry crane frames are usually shipped by sea freight because of package length and weight.
5. Can the crane be shipped together with other crane equipment?
Yes. If the adjustable portable gantry crane is ordered together with electric hoists, overhead crane parts, gantry crane components, end carriages, wheels, control cabinets, lifting accessories, or spare parts, ZOKECRANE can arrange combined packaging and container loading.
6. What shipping methods are available?
Common shipping methods include:
- Sea freight
- LCL shipment
- FCL shipment
- Air freight
- International courier
- Land transportation
- Railway transportation
- Multimodal transportation
The suitable shipping method depends on crane size, package dimensions, gross weight, destination country, delivery time requirement, trade terms, and customer budget.
7. Can ZOKECRANE assist with international logistics?
Yes. ZOKECRANE can assist with international logistics arrangements based on agreed trade terms. Customers can also use their own appointed freight forwarder.
8. What export documents can ZOKECRANE provide?
ZOKECRANE can usually provide the following export and technical documents:
- Commercial invoice
- Packing list
- Bill of lading or air waybill
- Certificate of origin, if required
- Product certificate
- Quality inspection report, if required
- CE-related documents, if required
- SGS-related documents, if required
- Technical drawing
- Installation drawing
- Operation manual
- Maintenance manual
- Spare parts list
- Packing photo or loading photo, if required
- Test report, if required
The actual document list can be prepared according to customer requirements, destination country customs clearance requirements, trade terms, and project requirements.
9. What should customers check after receiving the crane?
After receiving the adjustable portable gantry crane, customers should check:
- Package condition
- Shipping marks and packing list
- Main beam
- Adjustable supporting legs
- Base frame
- Wheels or casters
- Manual chain hoist or electric hoist
- Manual trolley or electric trolley
- Connecting bolts and pins
- Height adjustment holes
- Locking pins and adjustment devices
- End stoppers
- Brake caster function, if included
- Hook and safety latch
- Chain or wire rope condition
- Surface coating
- Nameplate and product markings
- Technical documents and manuals
- Spare parts, if included
If any damage, shortage, or inconsistency is found, please contact ZOKECRANE promptly with photos, packing list, and shipping documents.
10. Can spare parts be shipped separately?
Yes. Spare parts such as manual chain hoists, electric hoists, manual trolleys, wheels, casters, brake casters, bolts, pins, hooks, chains, bearings, end stoppers, adjustment pins, locking devices, and customized accessories can be shipped separately by courier, air freight, sea freight, or other suitable shipping methods.
11. Can the packaging be customized?
Yes. ZOKECRANE can customize packaging according to customer instructions, shipping method, destination country requirements, container loading plan, and project requirements. Special labels, waterproof packaging, wooden cases, steel frames, pallets, and shipping marks can be arranged before shipment.
12. How long does production and delivery take?
Production and delivery time depends on lifting capacity, span, lifting height, adjustment range, structure type, material, wheel type, hoist type, trolley type, order quantity, customization level, production schedule, and shipping route. After technical requirements, drawings, commercial terms, and payment details are confirmed, ZOKECRANE can provide a production and delivery plan.
