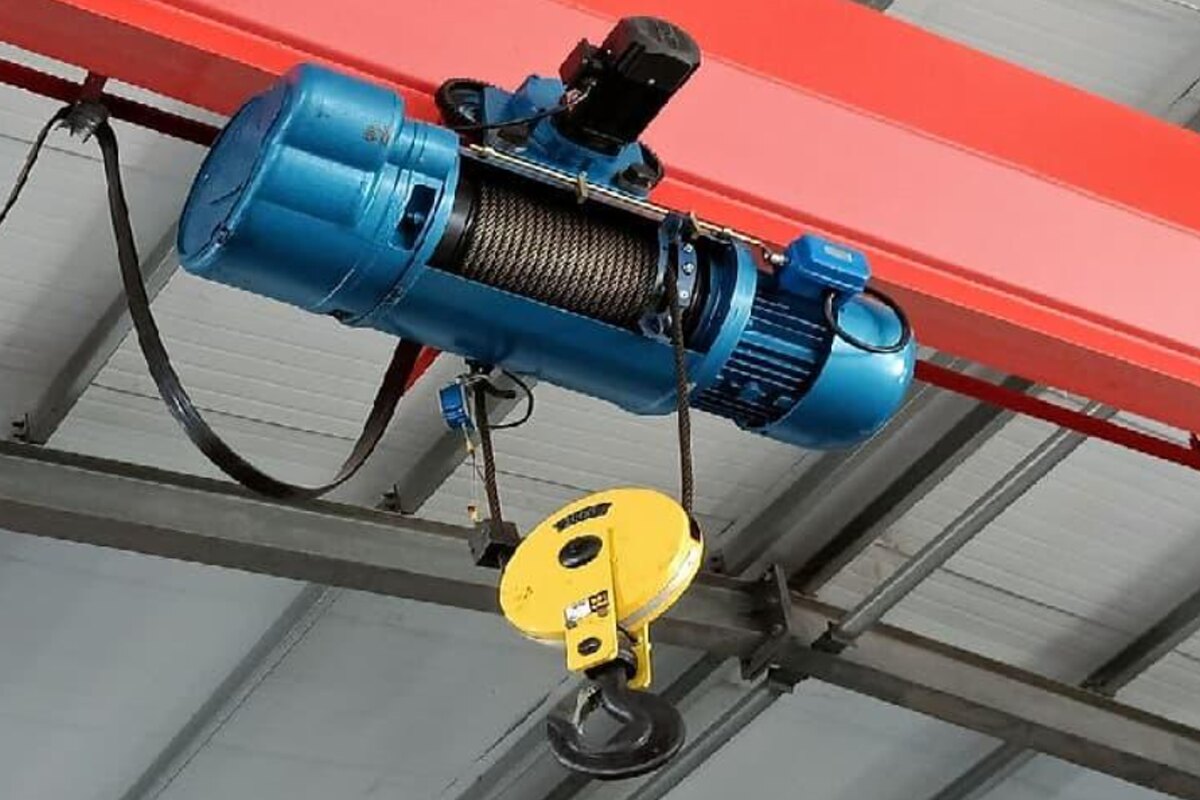

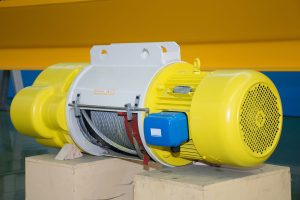

CD1 Single-Speed Hoist
A cost-effective general-purpose hoist for routine lifting and transfer. Suitable for fixed installation or motorized trolley operation.

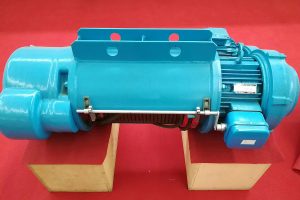

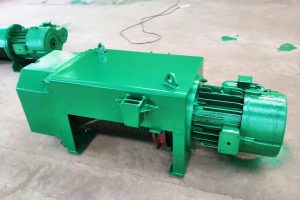

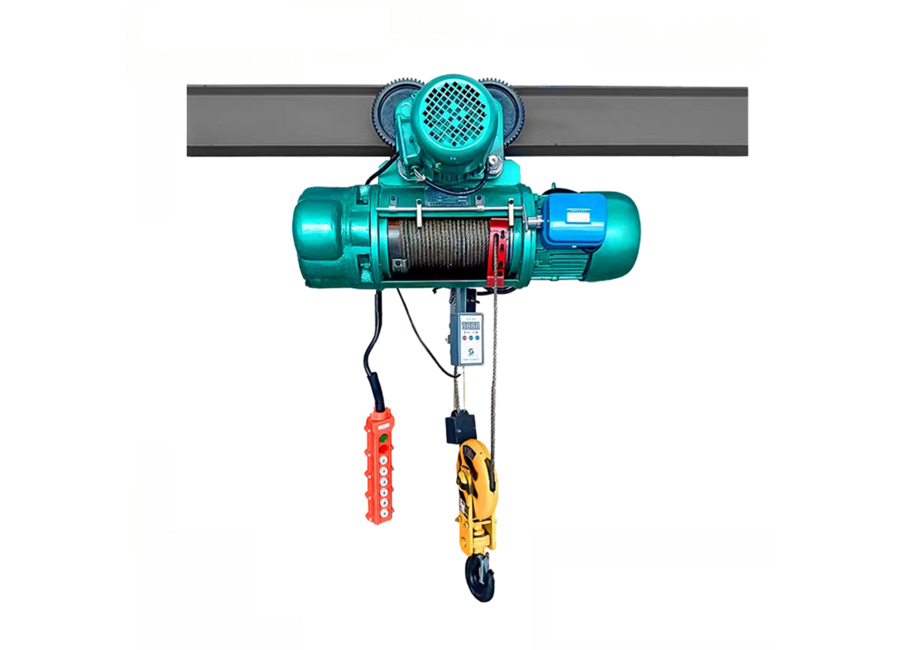

Wire Rope Electric Hoist
Electric Wire
Rope Hoists
CD1, MD1 and LDC electric wire rope hoists are configured for different lifting speeds, runway arrangements and available headroom.
Compact construction, stable operation and convenient maintenance make them a cost-effective choice for workshops, warehouses and crane systems.
- Capacity: 0.5–16 tonnes
- Lifting height: 6–30 m; customized heights available
- Lifting speed: 8, 7 or 3.5 m/min; dual-speed MD1 options available
- Travelling speed: 20 or 30 m/min; VFD control optional
- Duty group: M3 typical
- Protection degree: IP54
- Working temperature: −20 to +40°C
- Power supply: 110–440 V, 3-phase, 50/60 Hz, customizable
- Control: Pendant control or wireless remote control
Final parameters are subject to engineering confirmation.

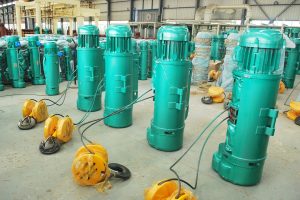

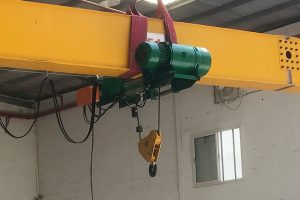

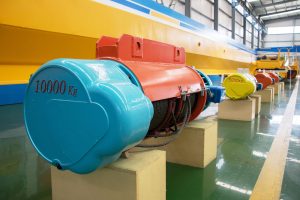

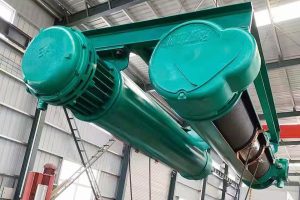

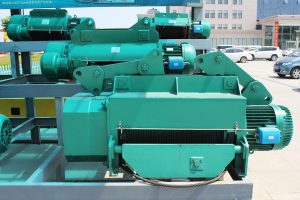

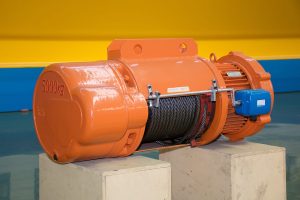

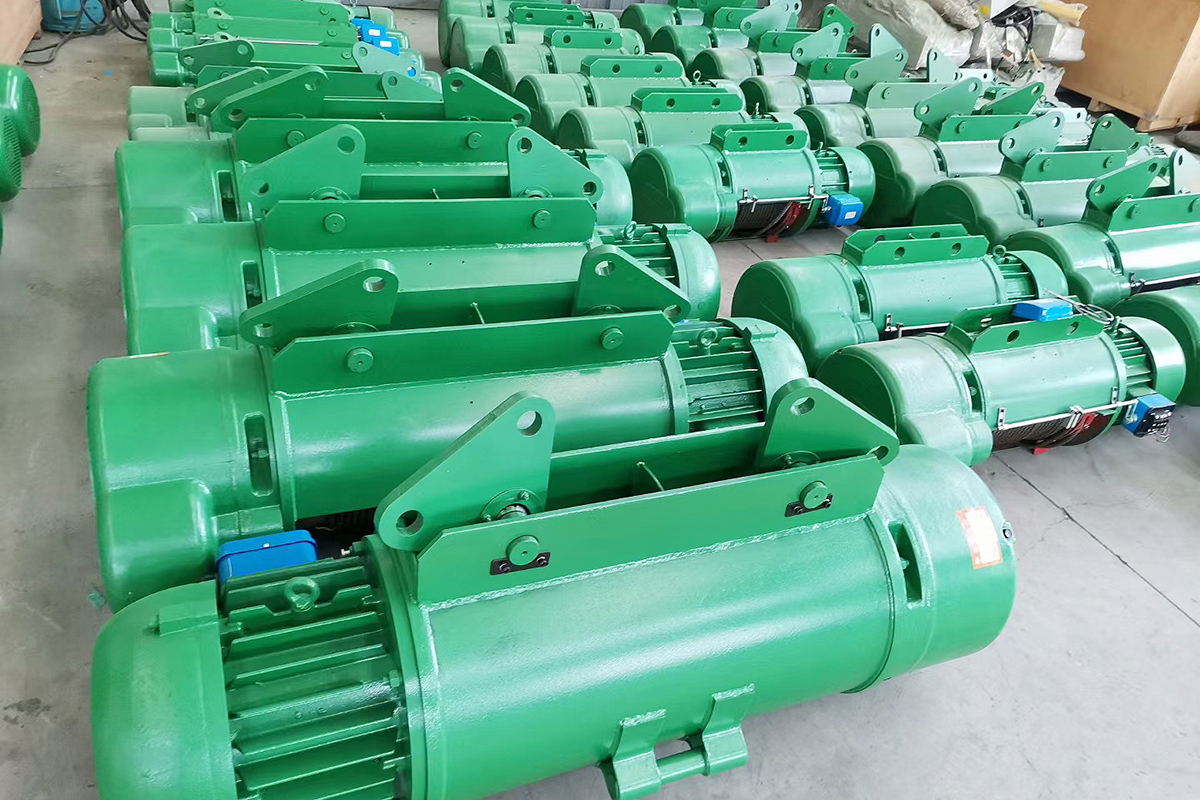

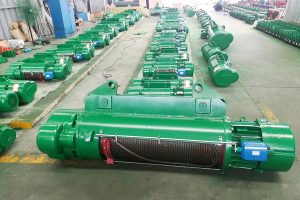

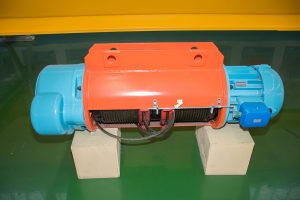

Product Gallery
Click any thumbnail to display a larger image.
Choose the right configuration
CD1, MD1 and LDC Series

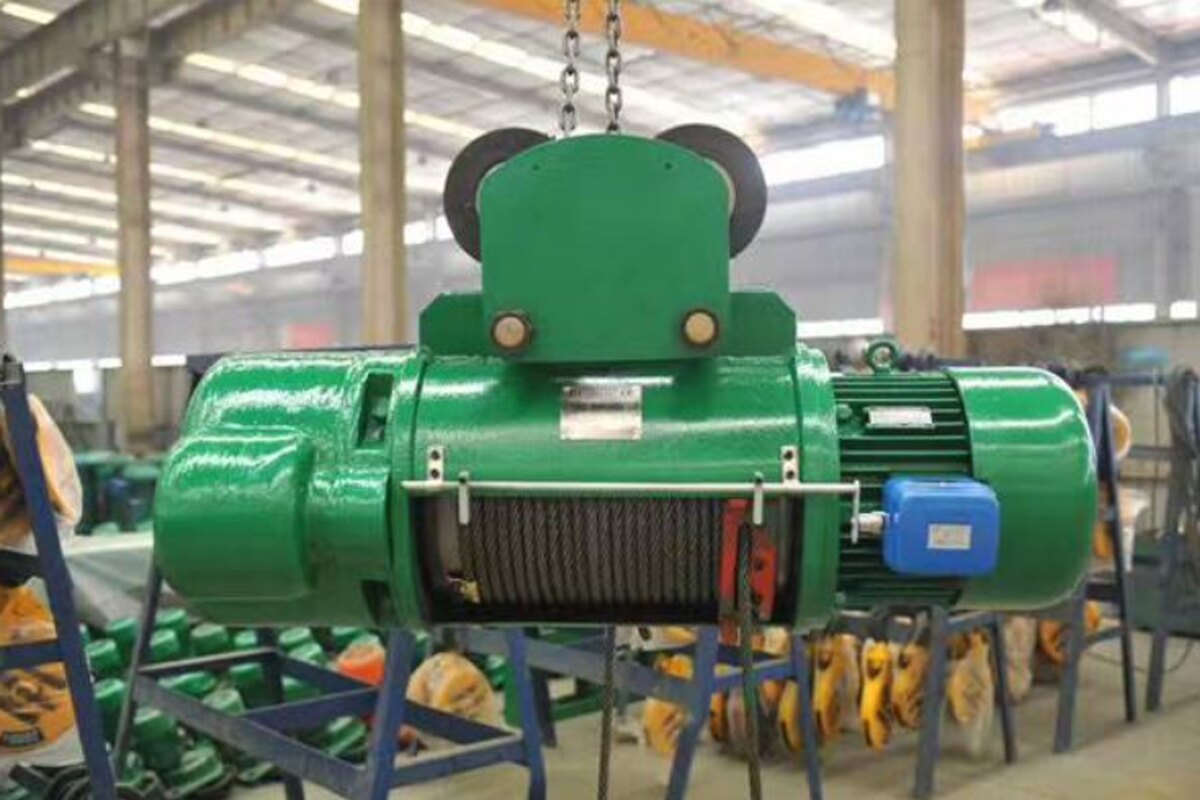

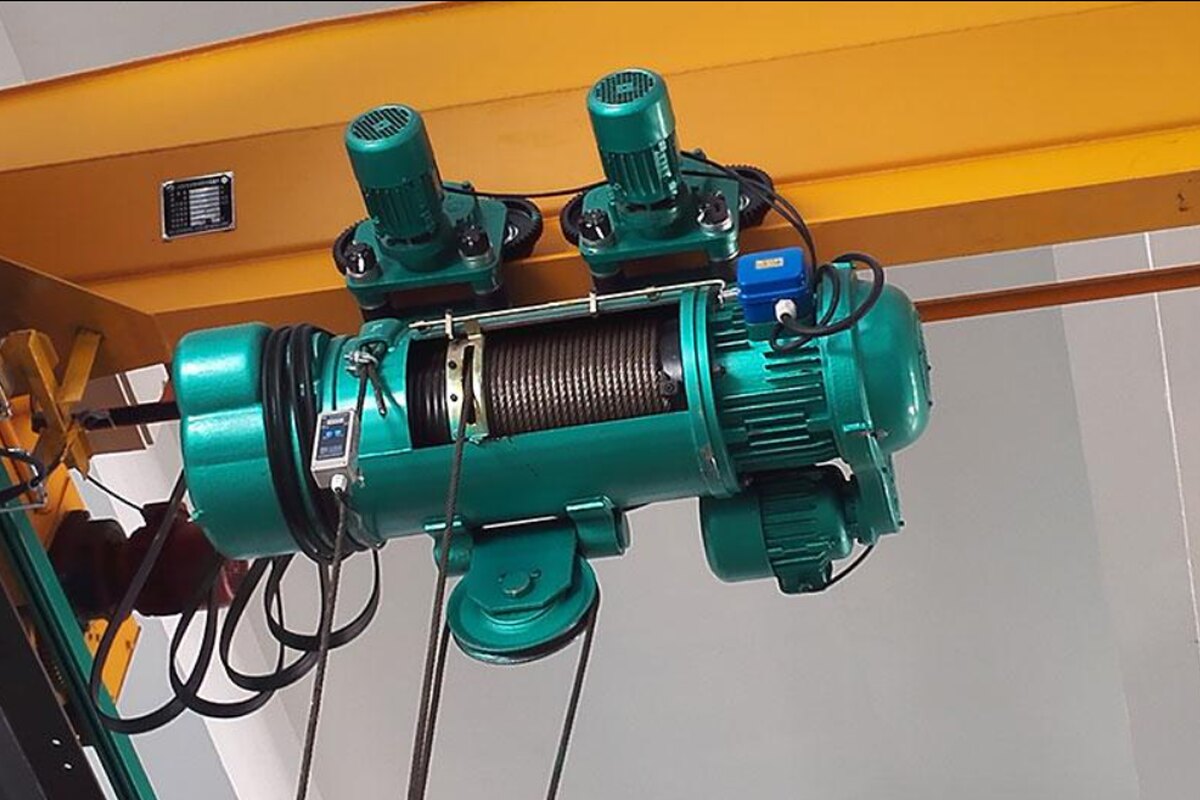

MD1 Dual-Speed Hoist
Provides normal and low lifting speeds for smoother positioning during assembly, maintenance and precision handling.

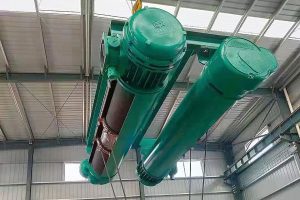

LDC Low-Headroom Hoist
A compact arrangement that reduces headroom demand and increases usable hook height in buildings with limited vertical clearance.
Application-matched engineering
Typical Technical Parameters

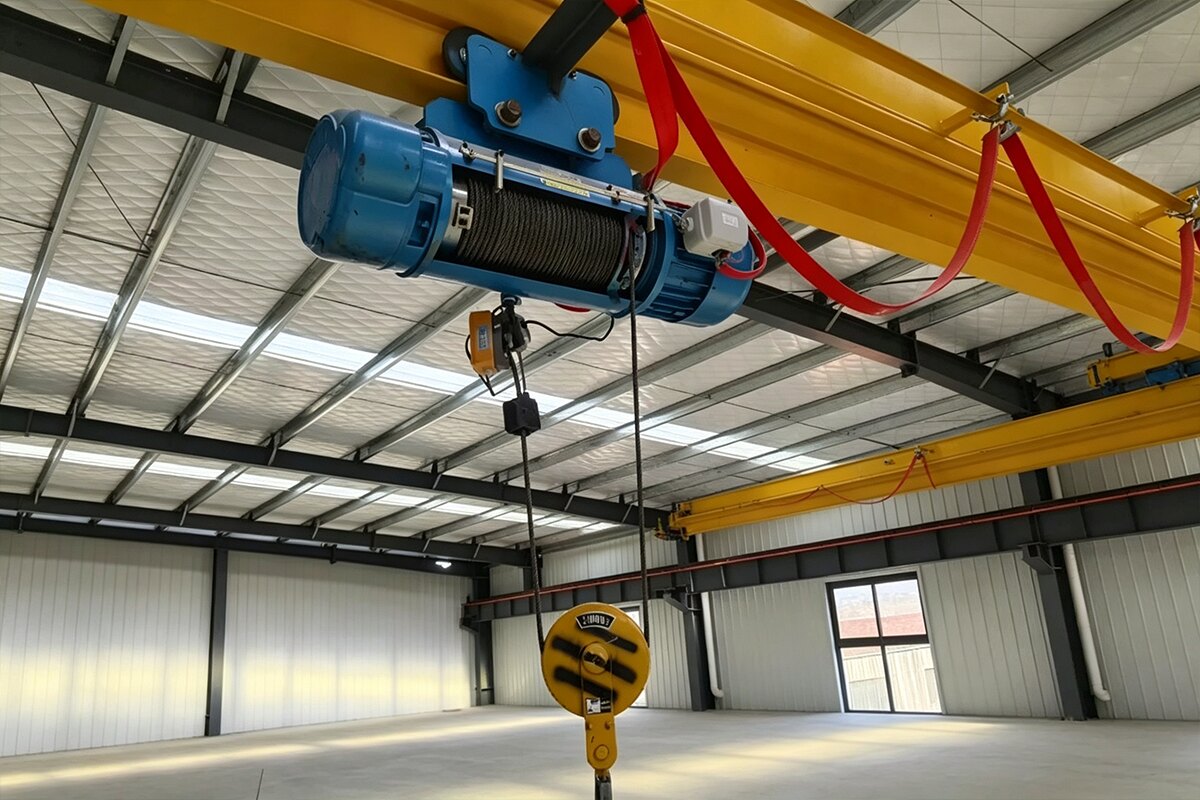

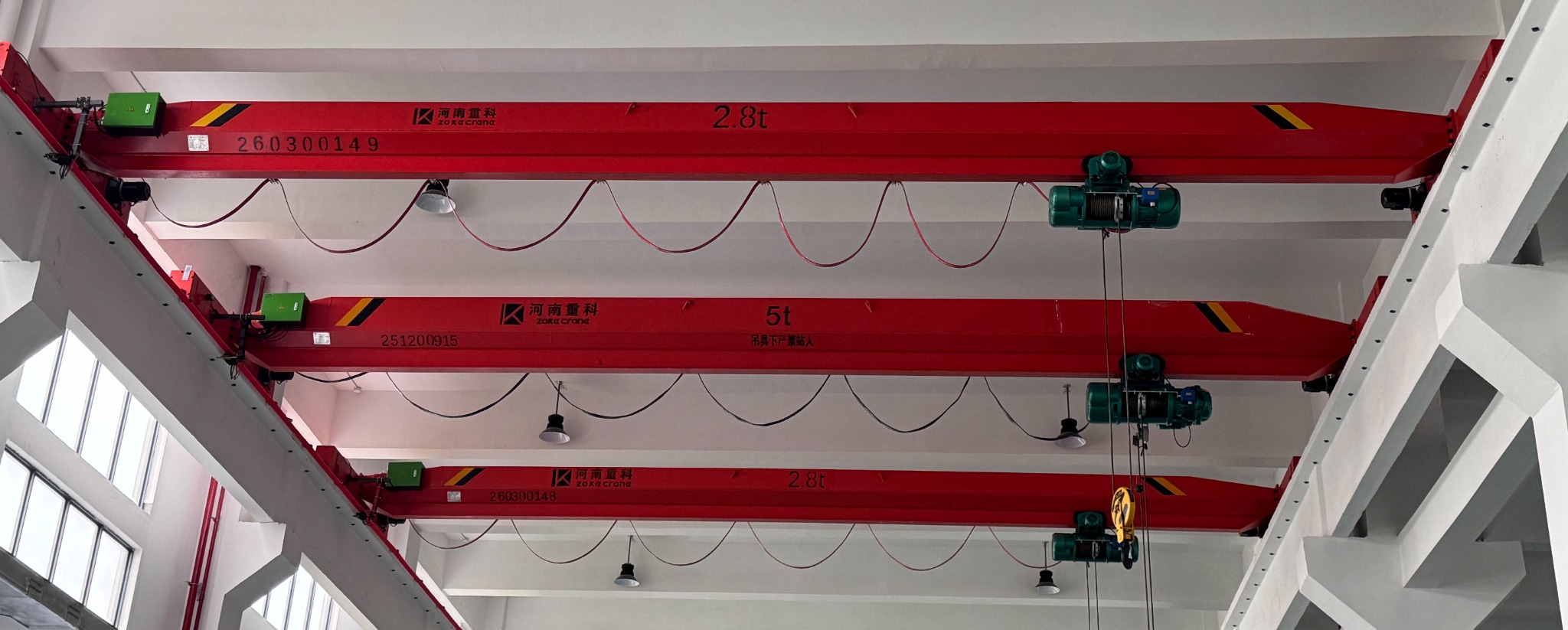

Reliable Lifting for Workshops and Crane Systems

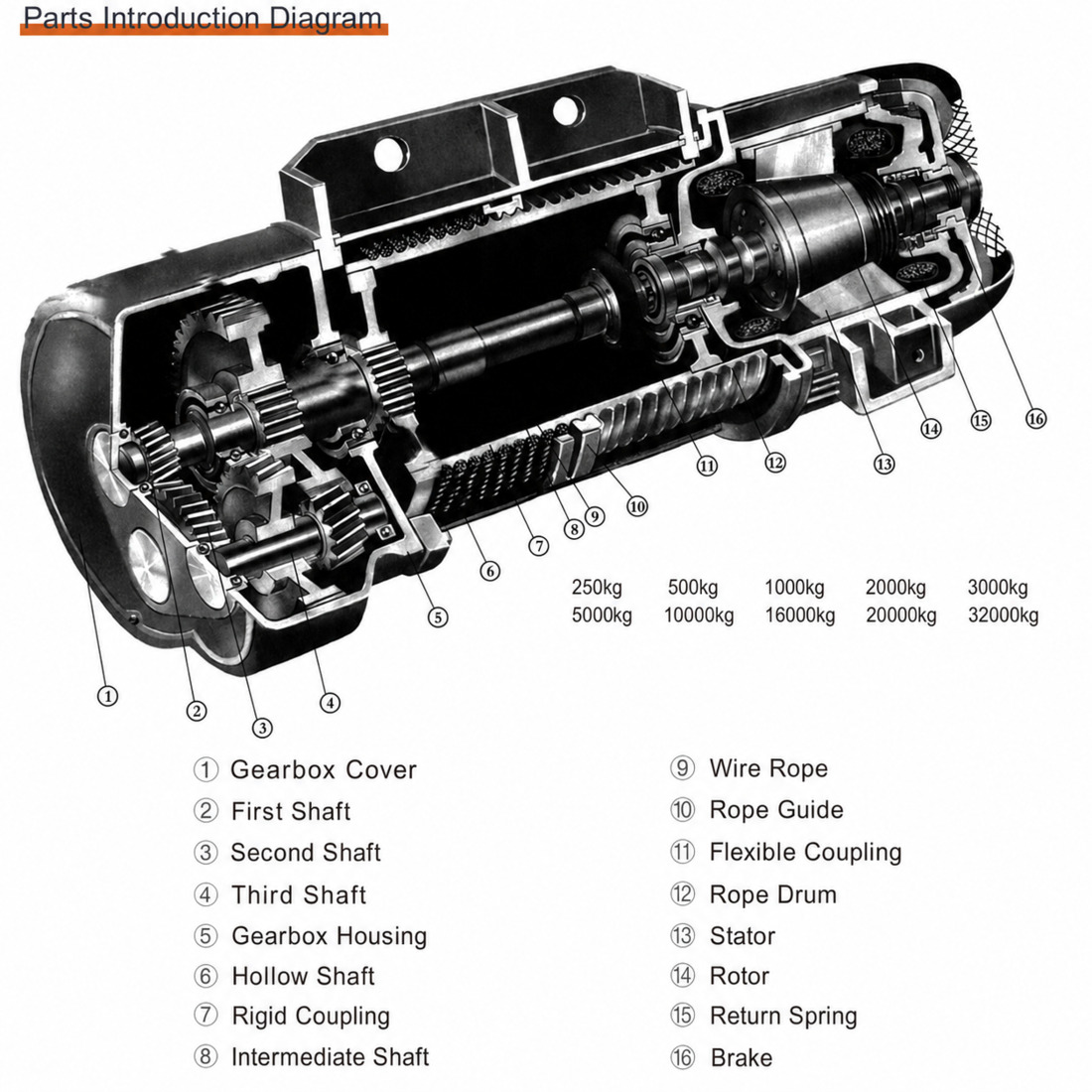

Electric wire rope hoists use a compact integrated arrangement of motor, reducer, rope drum, wire rope, hook assembly and electrical controls. The final model is selected according to load, lifting height, operating frequency, runway condition and available headroom.
They are commonly applied in machinery manufacturing, assembly areas, warehouses, equipment maintenance facilities and other general industrial environments.
Hazardous, metallurgical, corrosive or special outdoor environments require a dedicated product configuration and separate engineering confirmation.
| Product Series | CD1 single speed / MD1 dual speed / LDC low headroom |
|---|---|
| Typical Capacity | 0.5–16 tonnes; application-specific configurations available |
| Lifting Height | Commonly 6–30 m; customized according to project |
| Travelling Speed | 20 or 30 m/min; VFD control optional |
| Working Duty | Typical M3; confirm according to actual operating cycle |
| Power Supply | 110–440 V, 3-phase, 50/60 Hz, customizable |
| Protection | IP54 |
| Control | Pendant control or wireless remote control |
Final capacity, speed, lifting height, duty classification and dimensions are subject to engineering confirmation.
Why ZOKE
Designed Around Safety, Serviceability and Value
Compact StructureIntegrated components help reduce installation space and simplify crane arrangement.
Application-Matched SelectionCD1, MD1 and LDC options cover general, precision and low-headroom lifting needs.
Flexible Electrical Supply110–440 V, 3-phase, 50/60 Hz configurations are available for international projects.
Controlled ManufacturingKey machining, assembly, reeving and electrical inspection steps follow documented procedures.
Factory VerificationEvery supplied hoist is functionally inspected and 100% factory tested before shipment.
Installation SupportRemote guidance or on-site installation support can be arranged according to project needs.
Core components
Built from Proven Hoist Assemblies

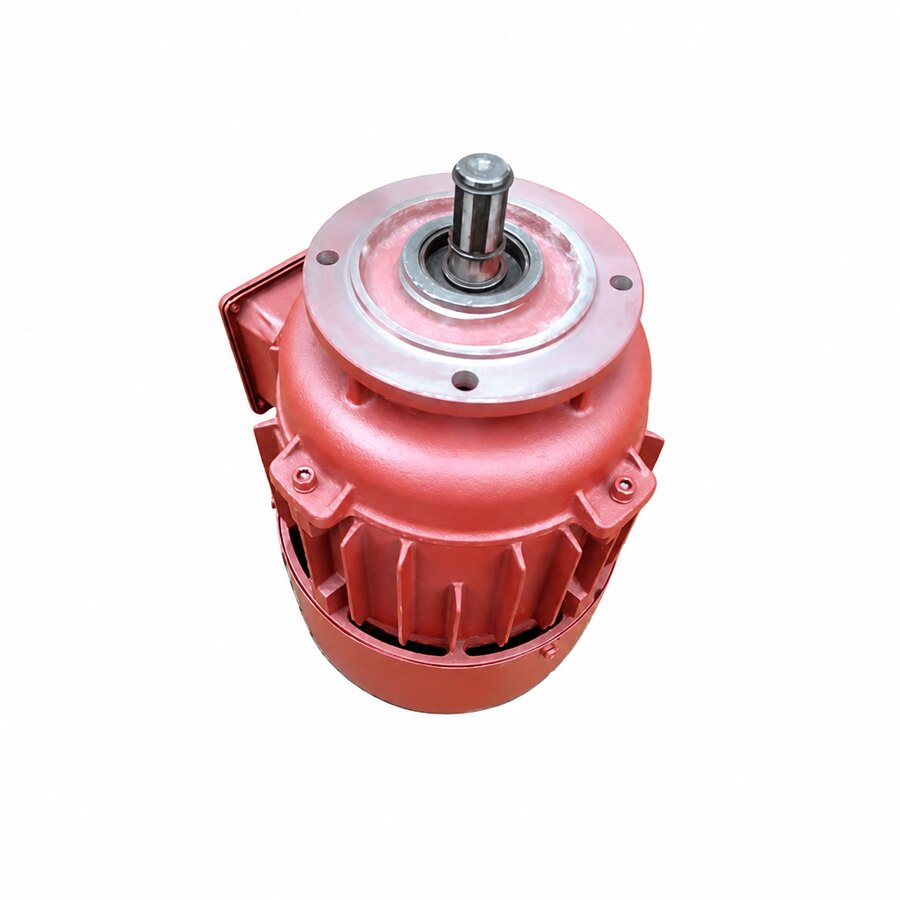

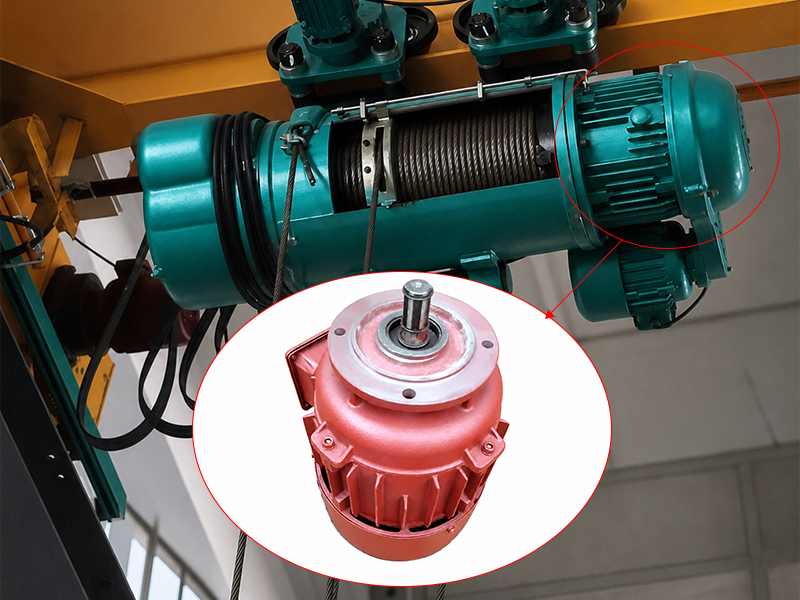

Lifting Motor
Standard Class B insulation, with Class F or H options available for demanding operating conditions.

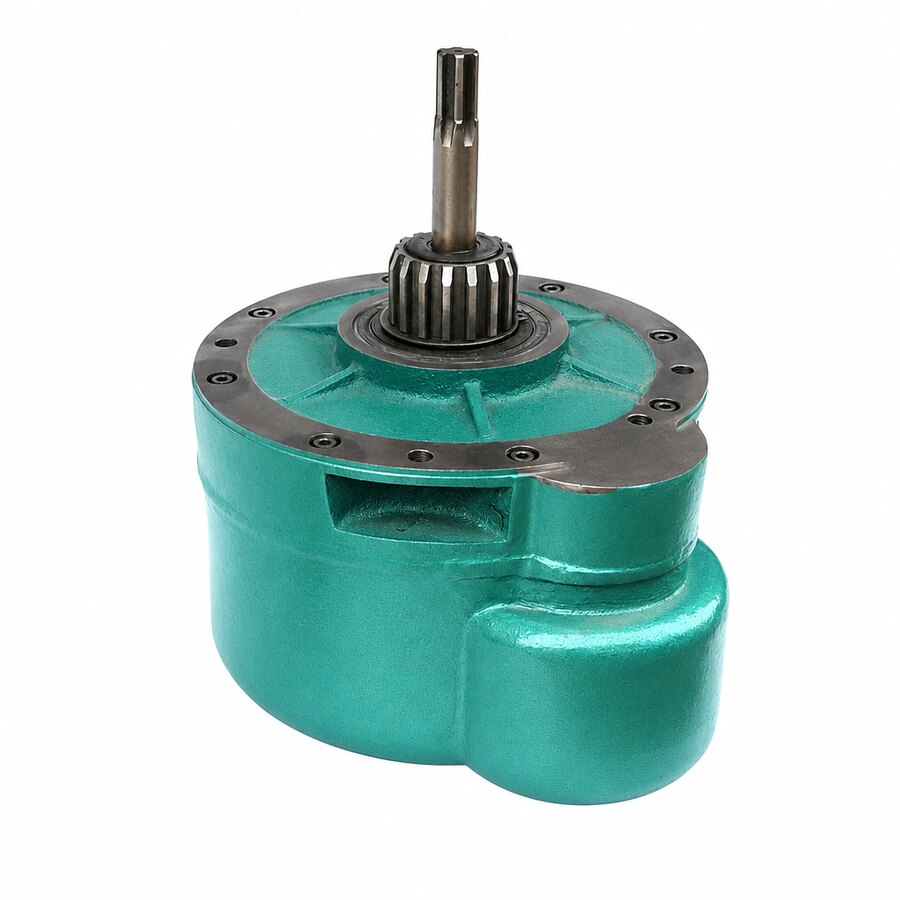

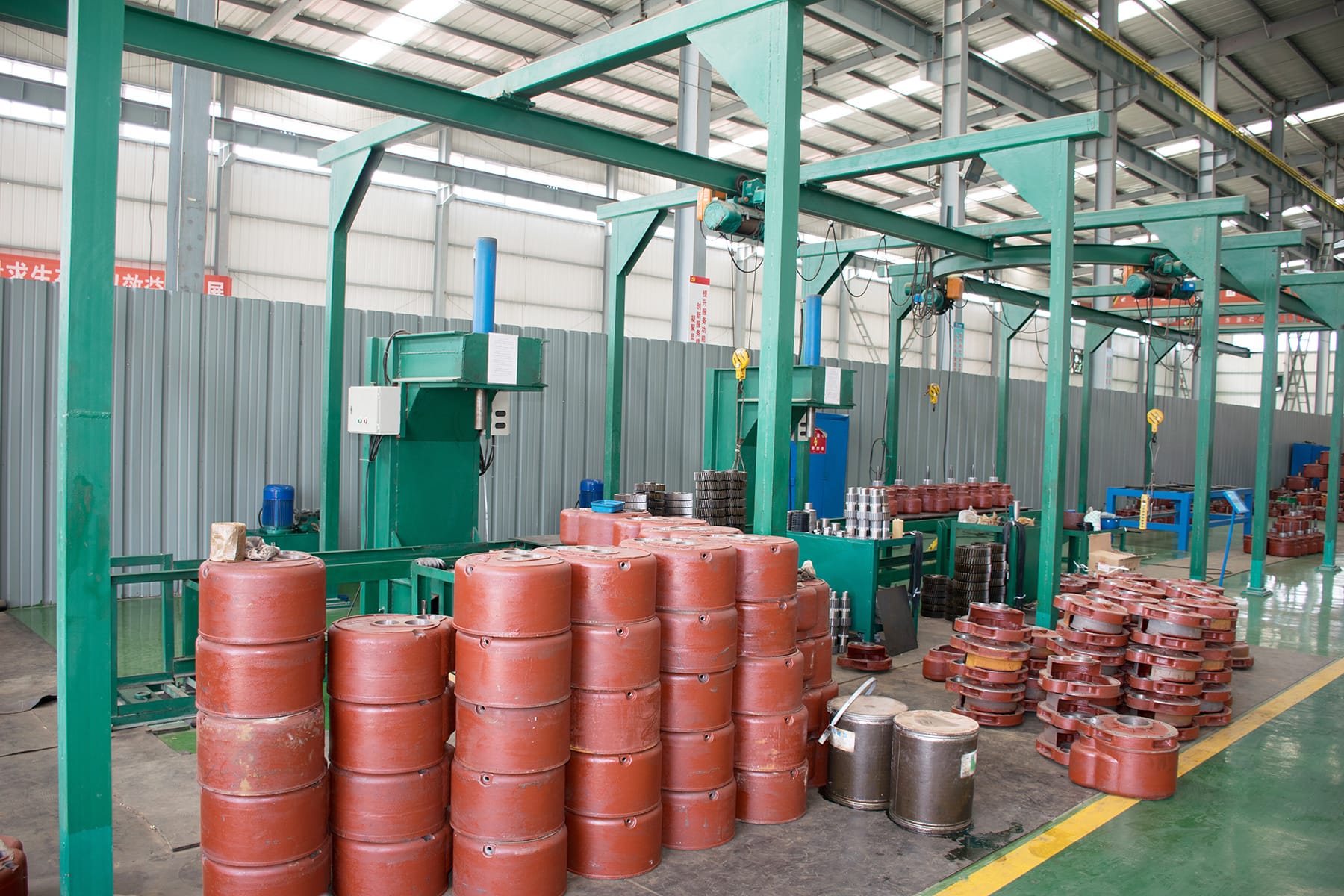

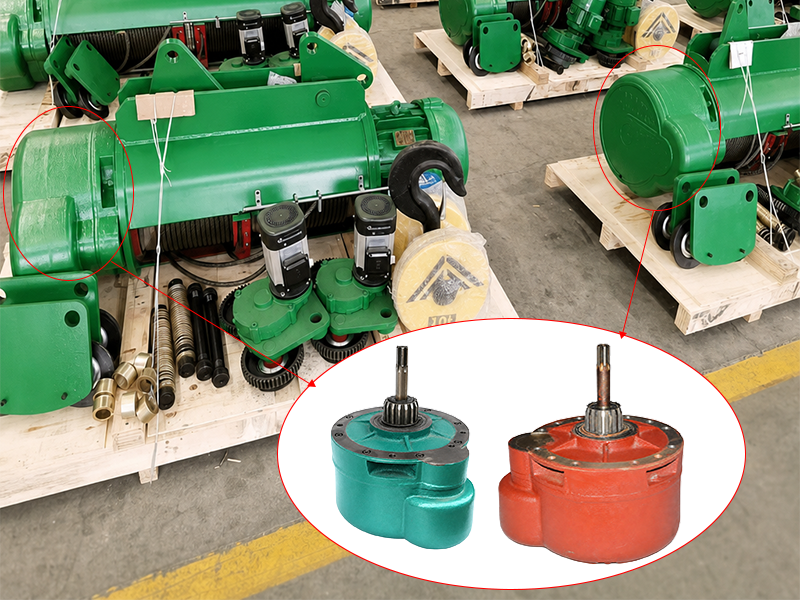

Reducer
Compact gear reduction supports stable torque transmission and convenient maintenance.

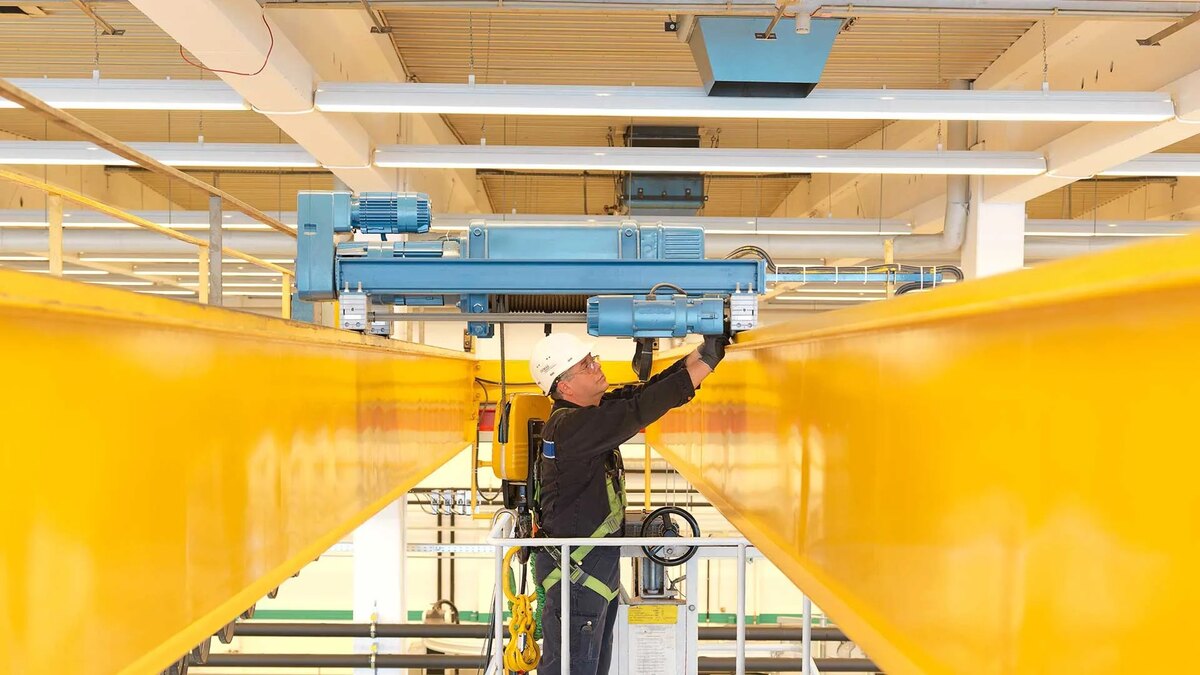

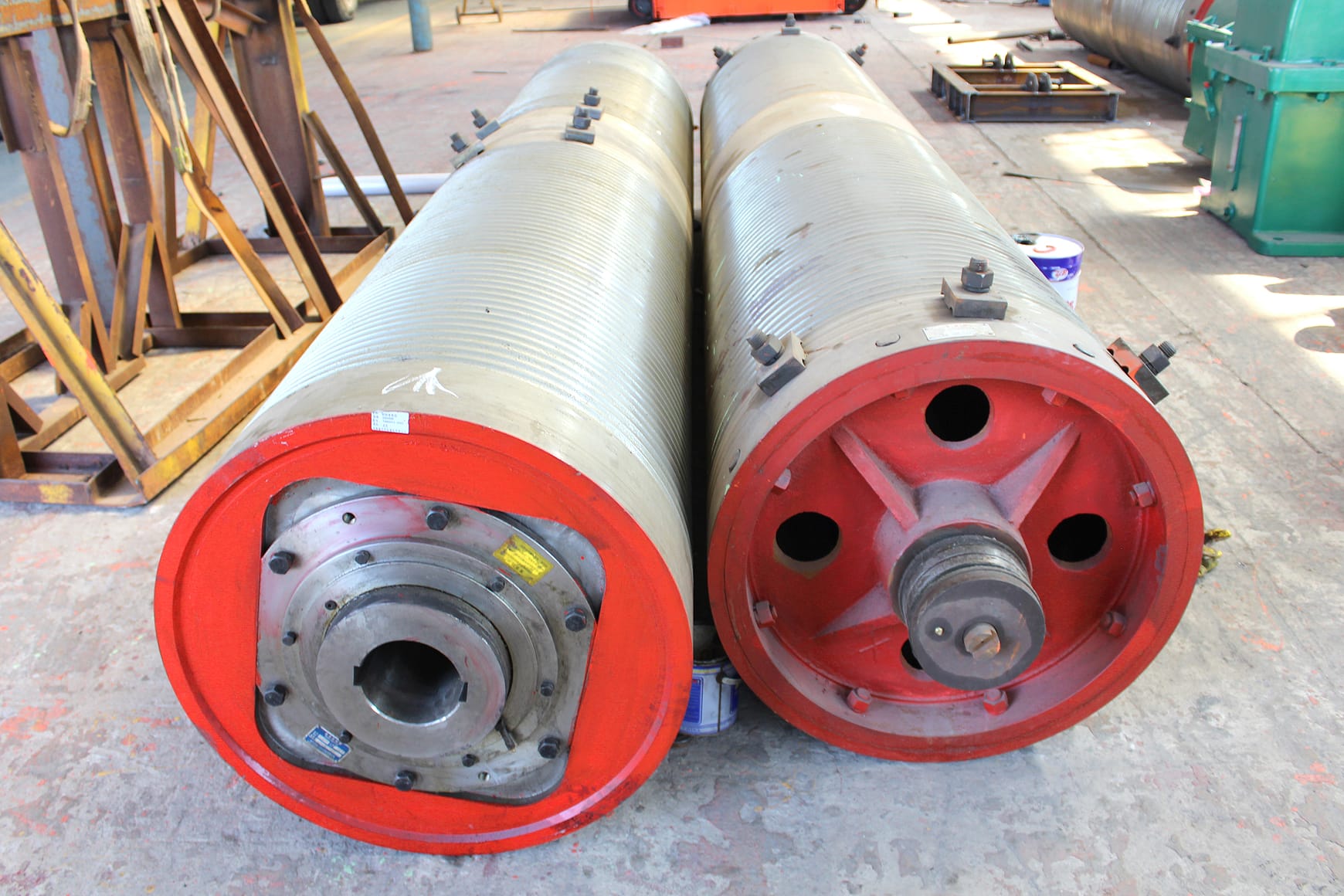

Rope Drum
Precision-machined rope grooves guide orderly winding and help support reliable lifting performance.

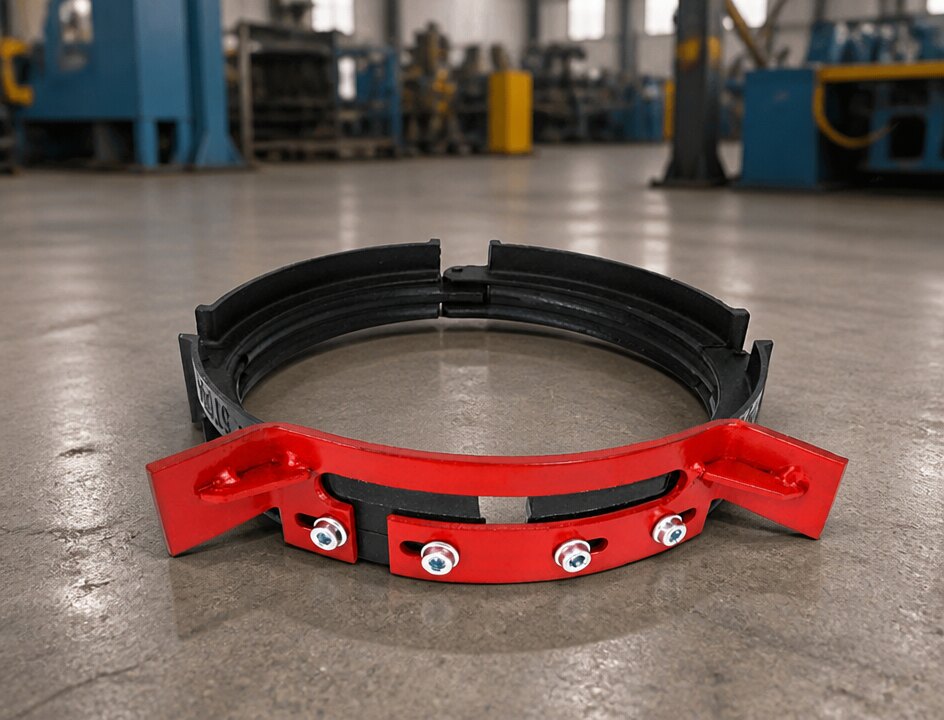

Rope Guide
Helps maintain correct rope alignment on the drum and reduces the risk of crossed winding.

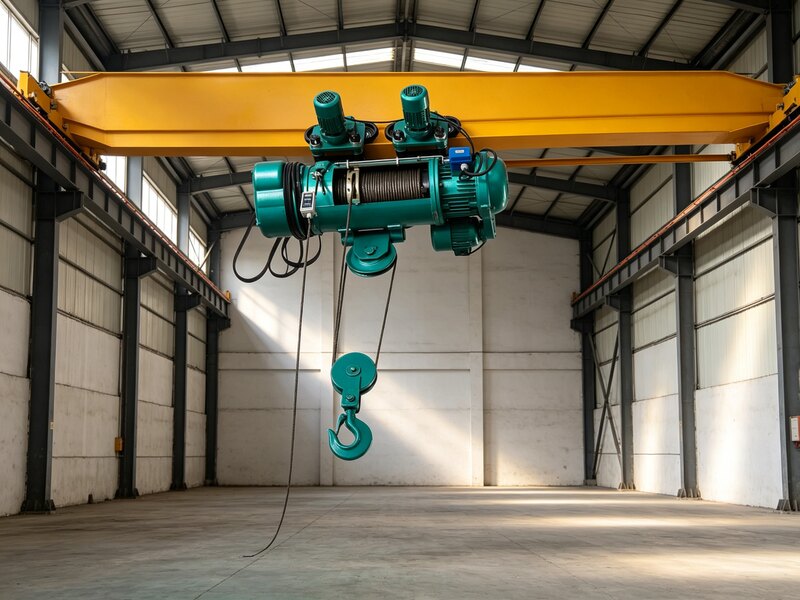

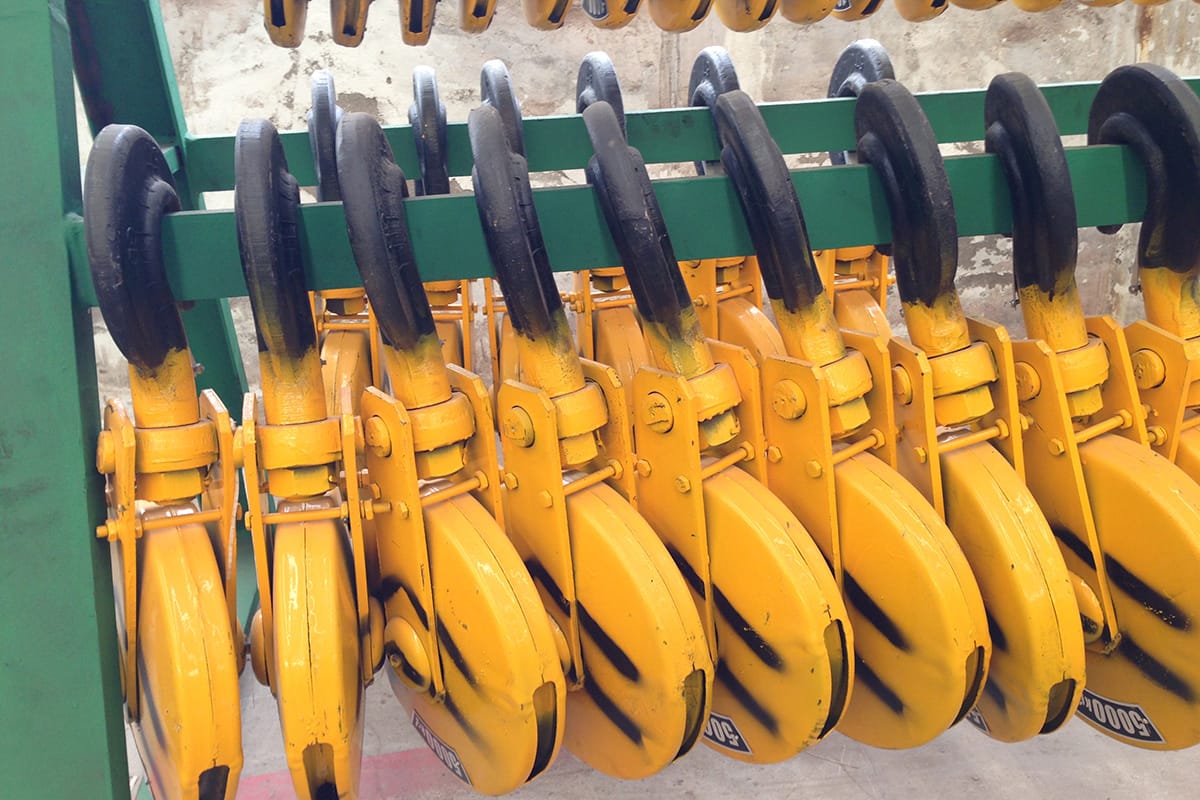

Hook Assembly
Forged DG20 carbon steel hook with safety latch and 360° rotation; designed to applicable GB/T 10051 lifting-hook standards.

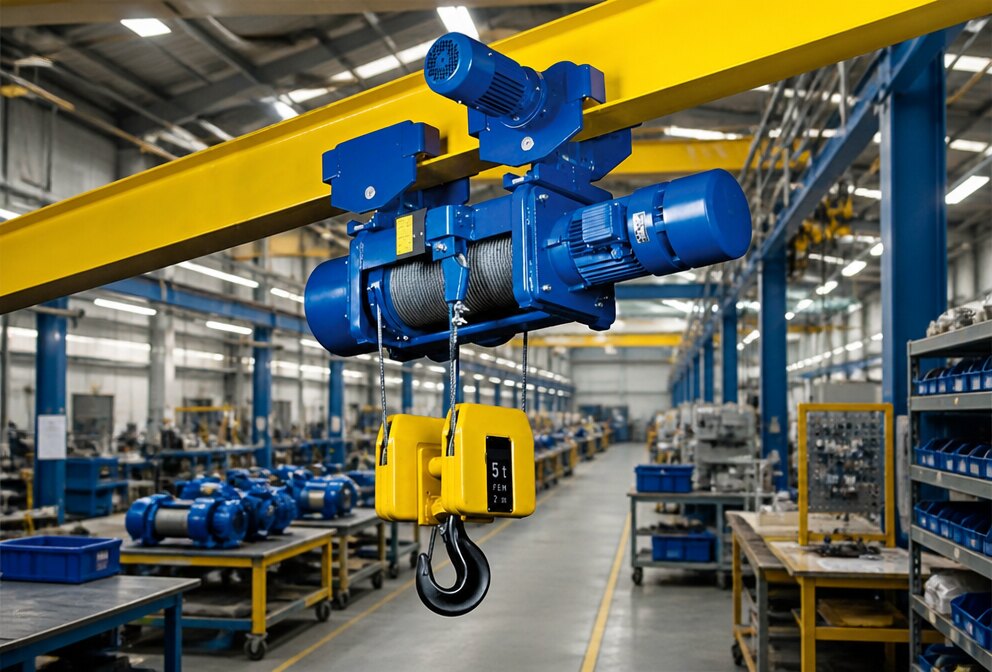

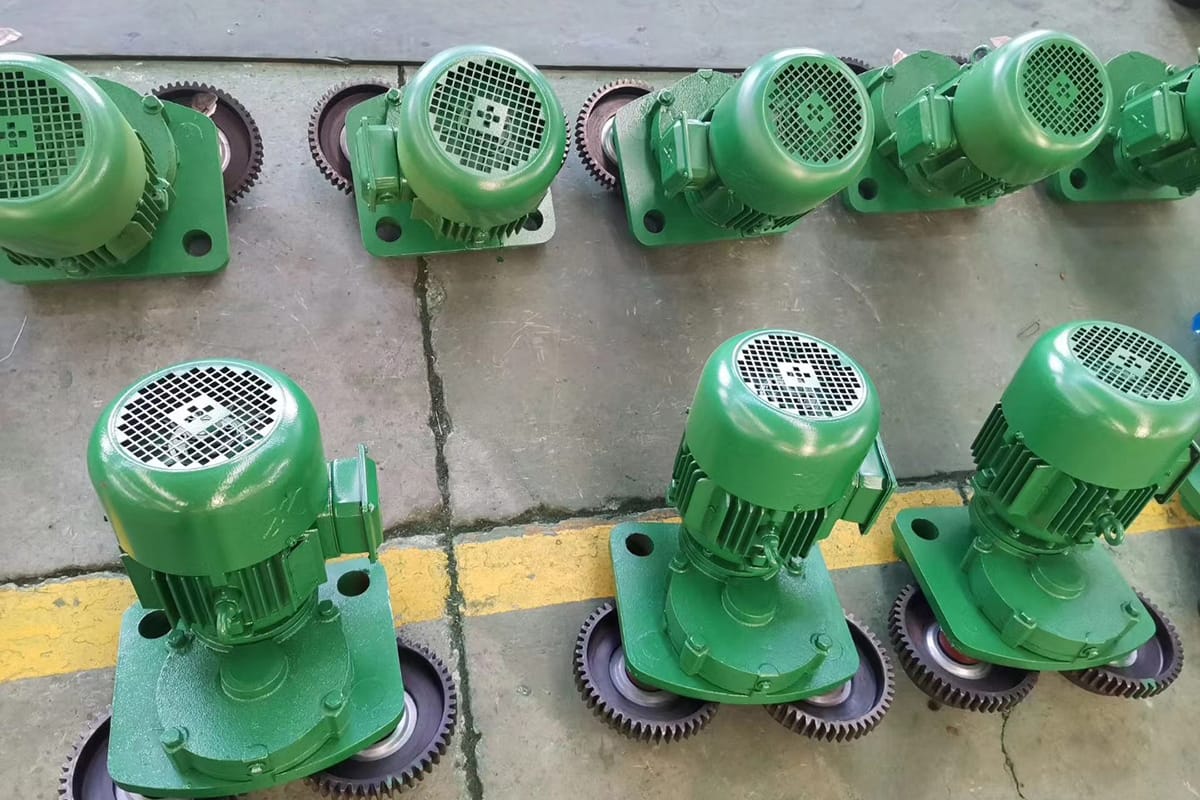

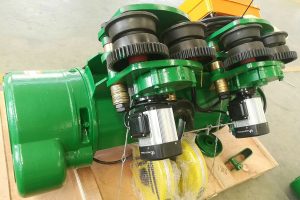

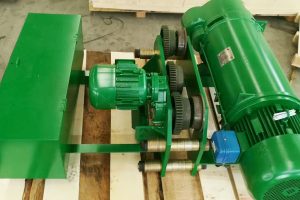

Motorized Trolley
Matched to the beam and runway requirements for stable travel and practical hook coverage.
Wire rope is selected to GB/T 8918 requirements with a safety factor above 4.5. Hook design safety factor is above 5, subject to the confirmed configuration.

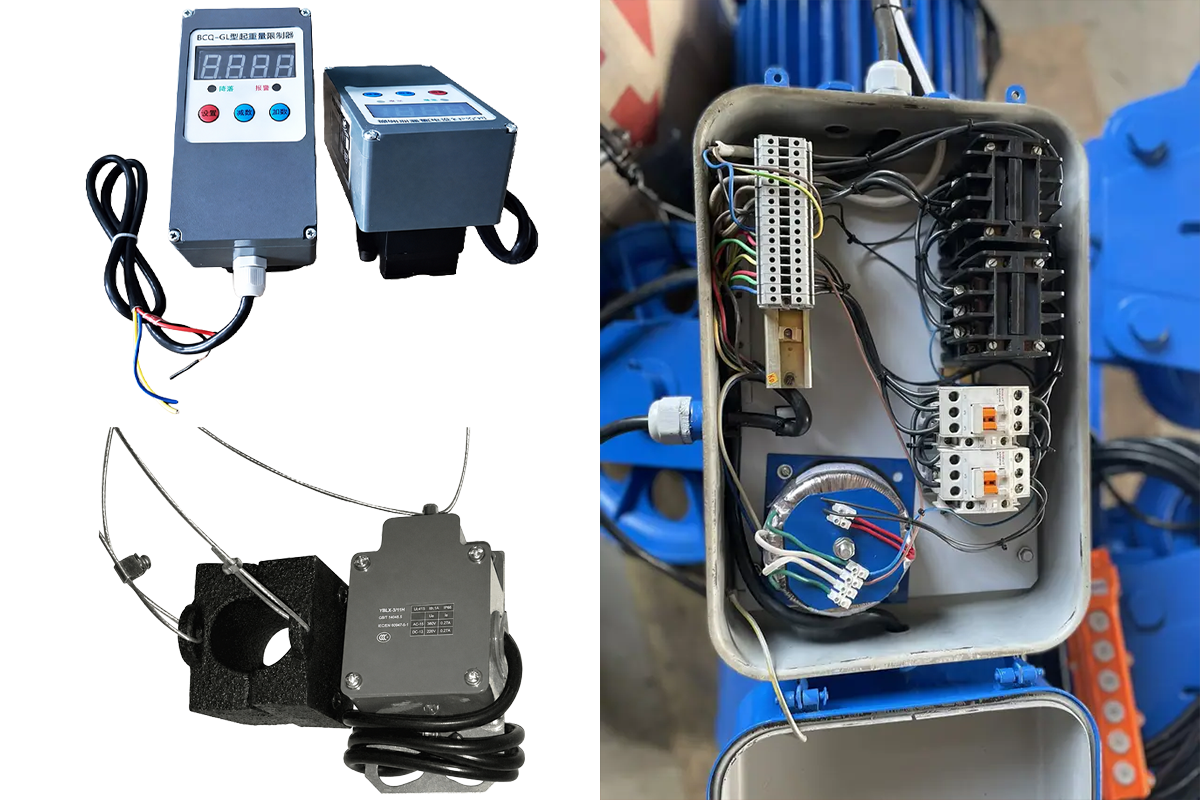

Safety protection
Protection Integrated into the System

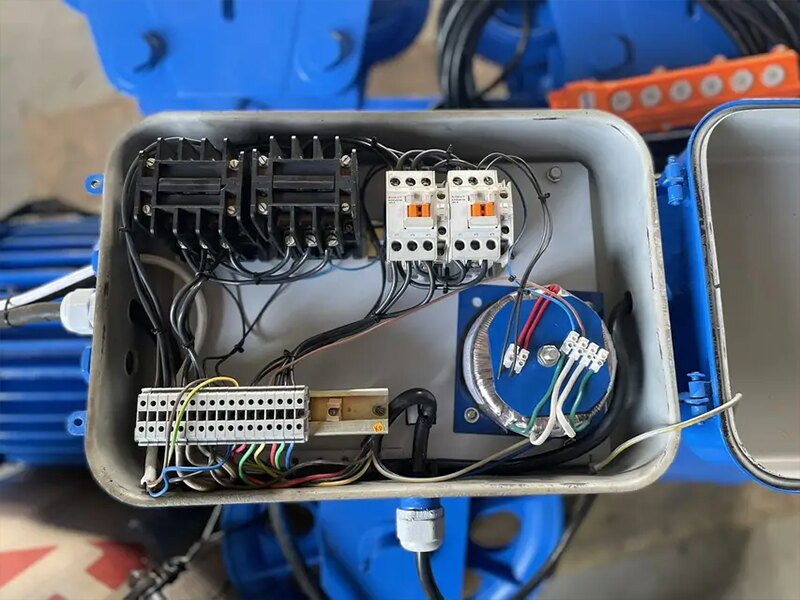

Electrical Protection
Control and protection components are configured according to the confirmed voltage and control method.

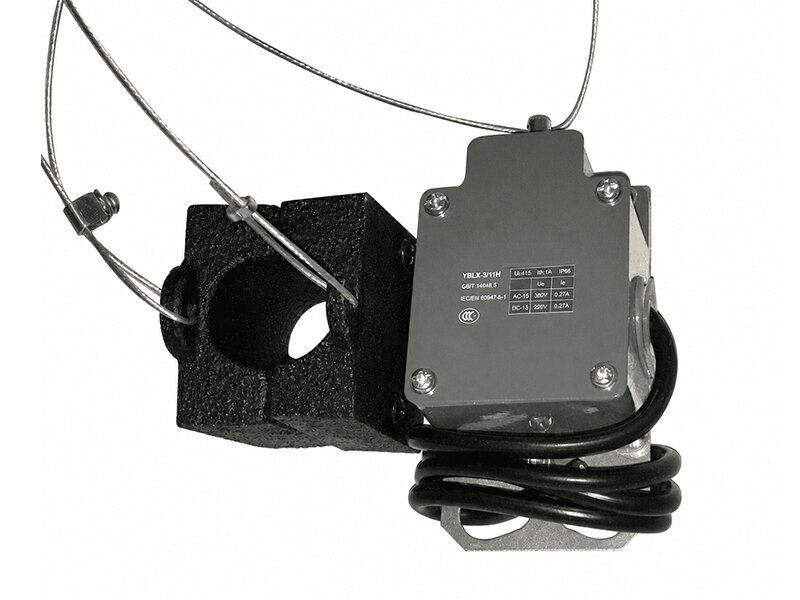

Lifting Limit Protection
Upper and lower travel limiting helps prevent the hook from exceeding its designed operating range.

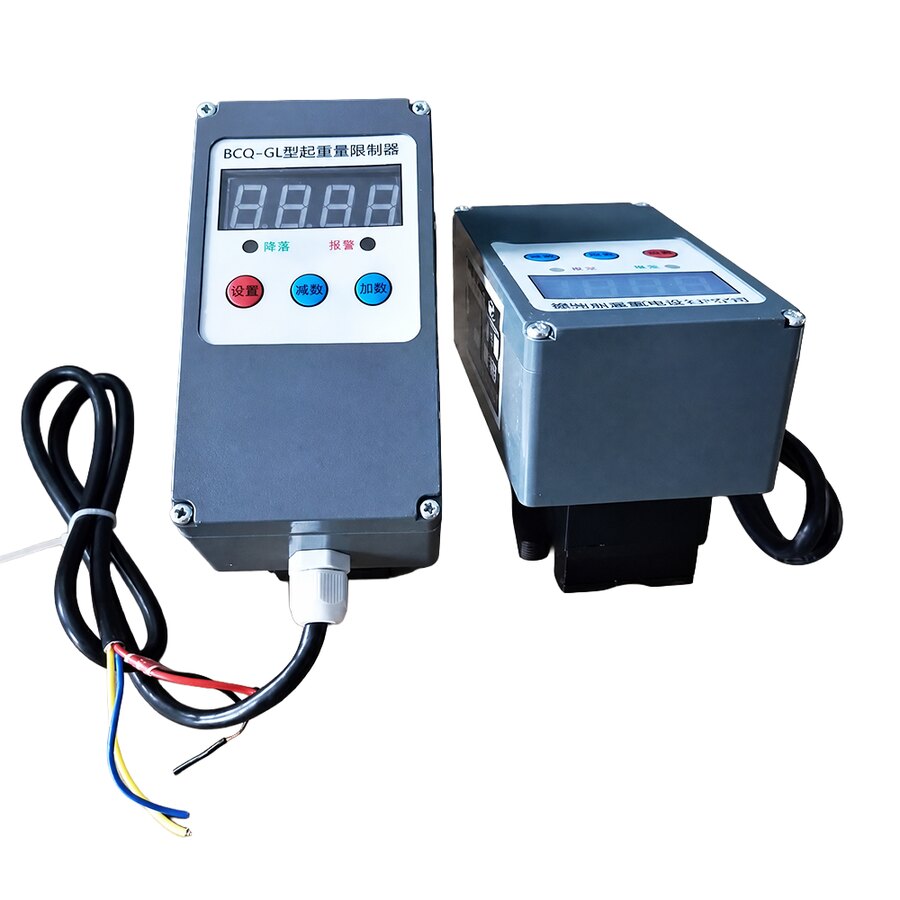

Overload Protection
A load limiter can prevent continued lifting when the detected load exceeds the permitted setting.

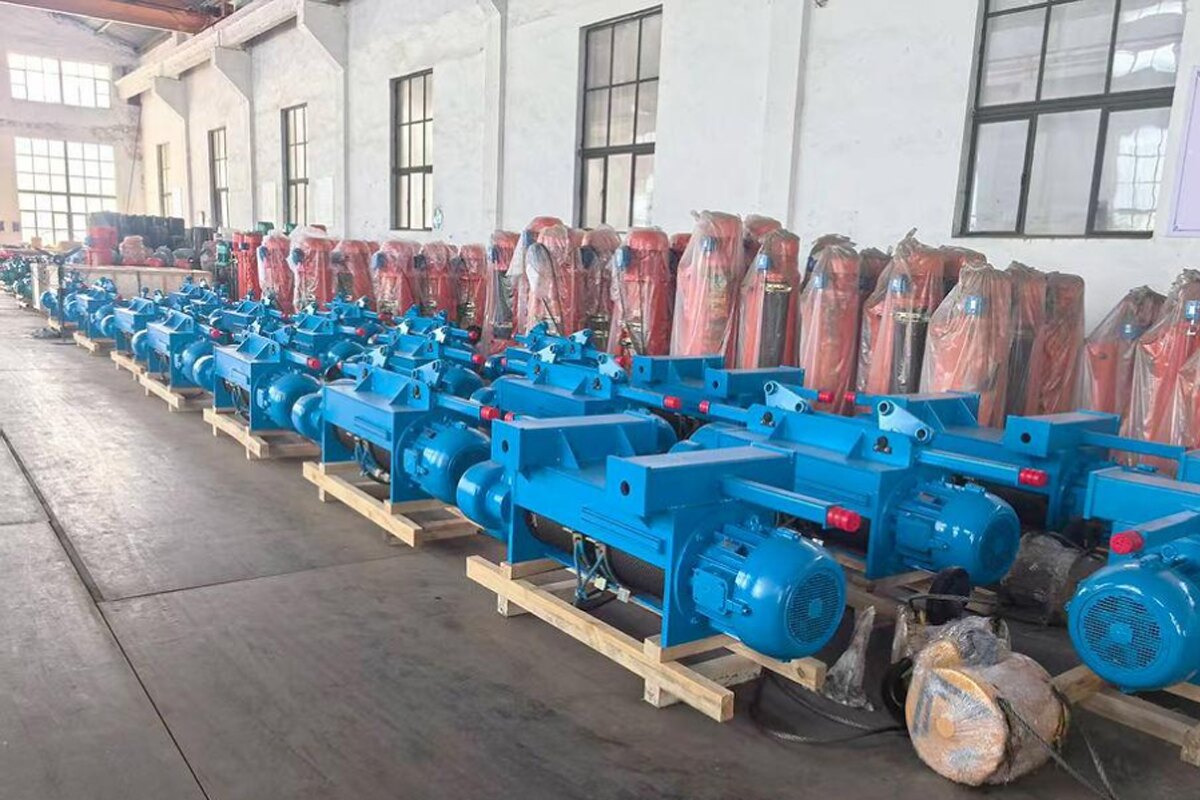

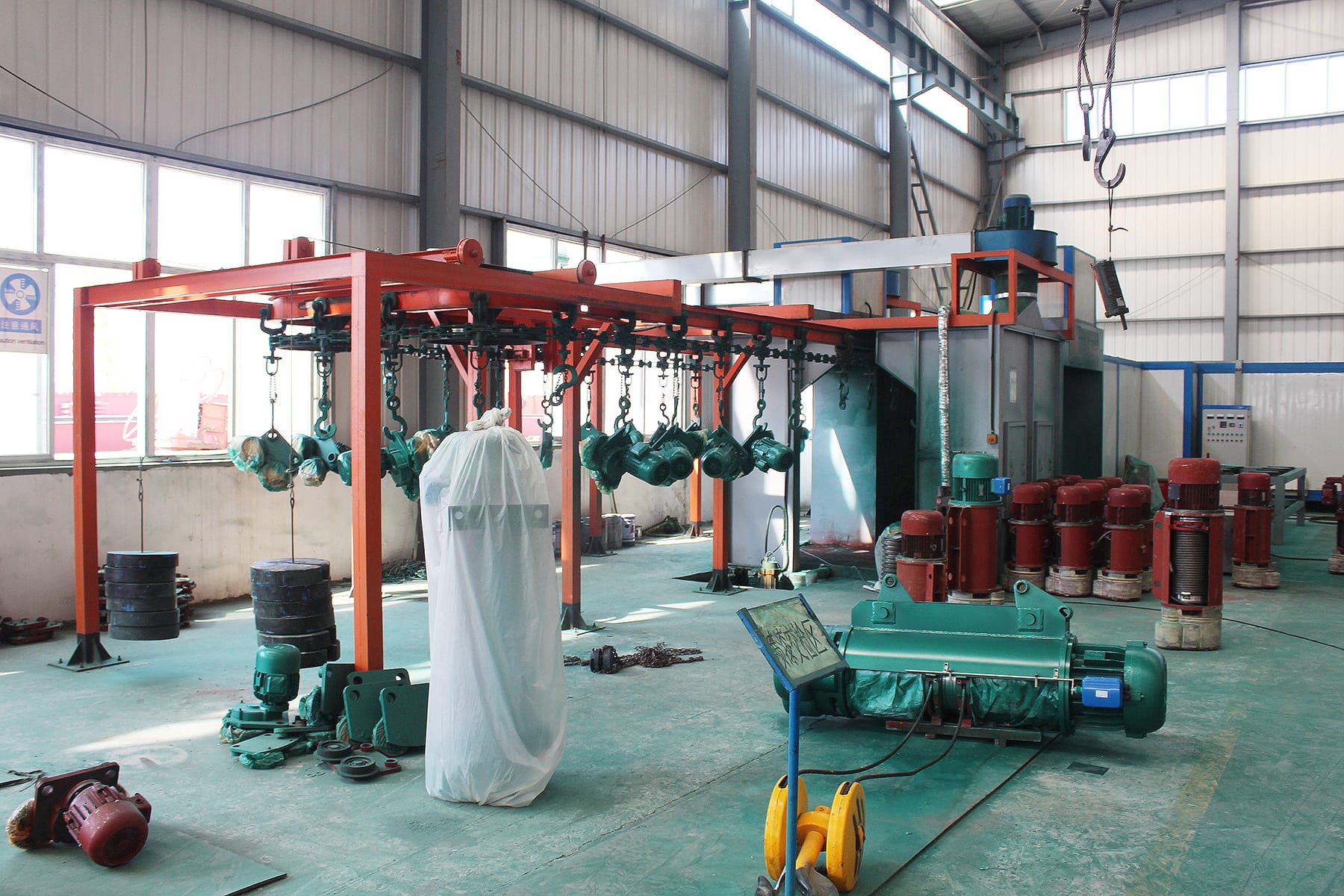

Controlled production
From Machining to Final Test

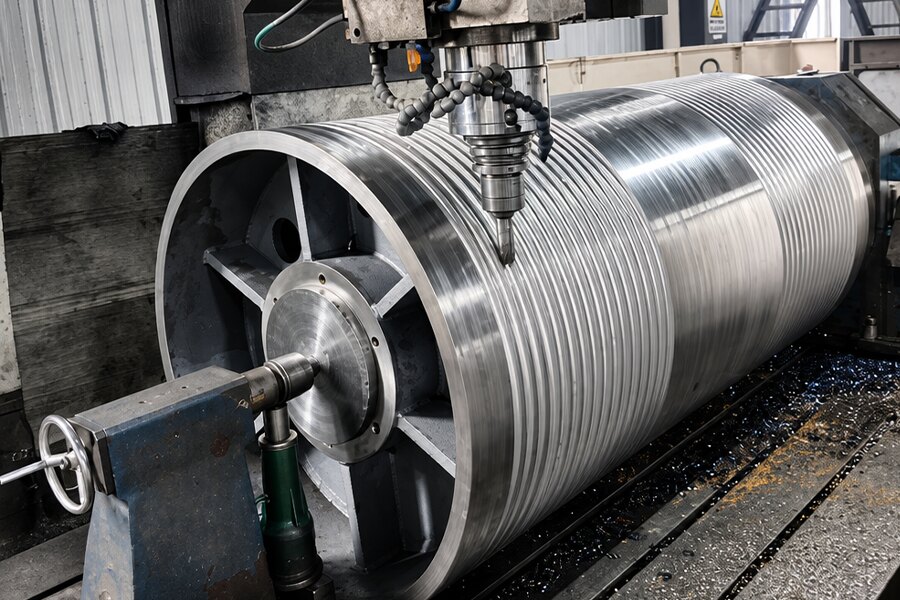

Drum Machining

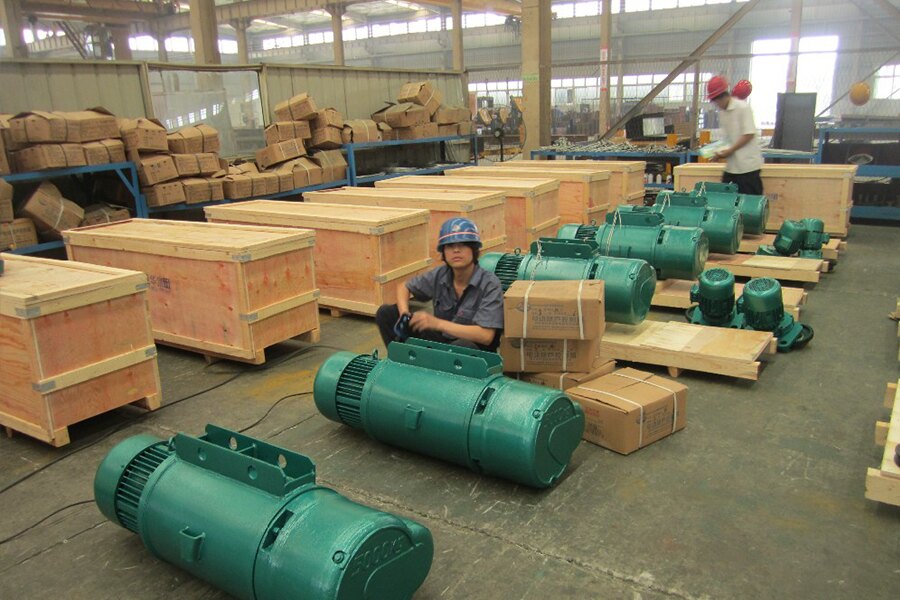

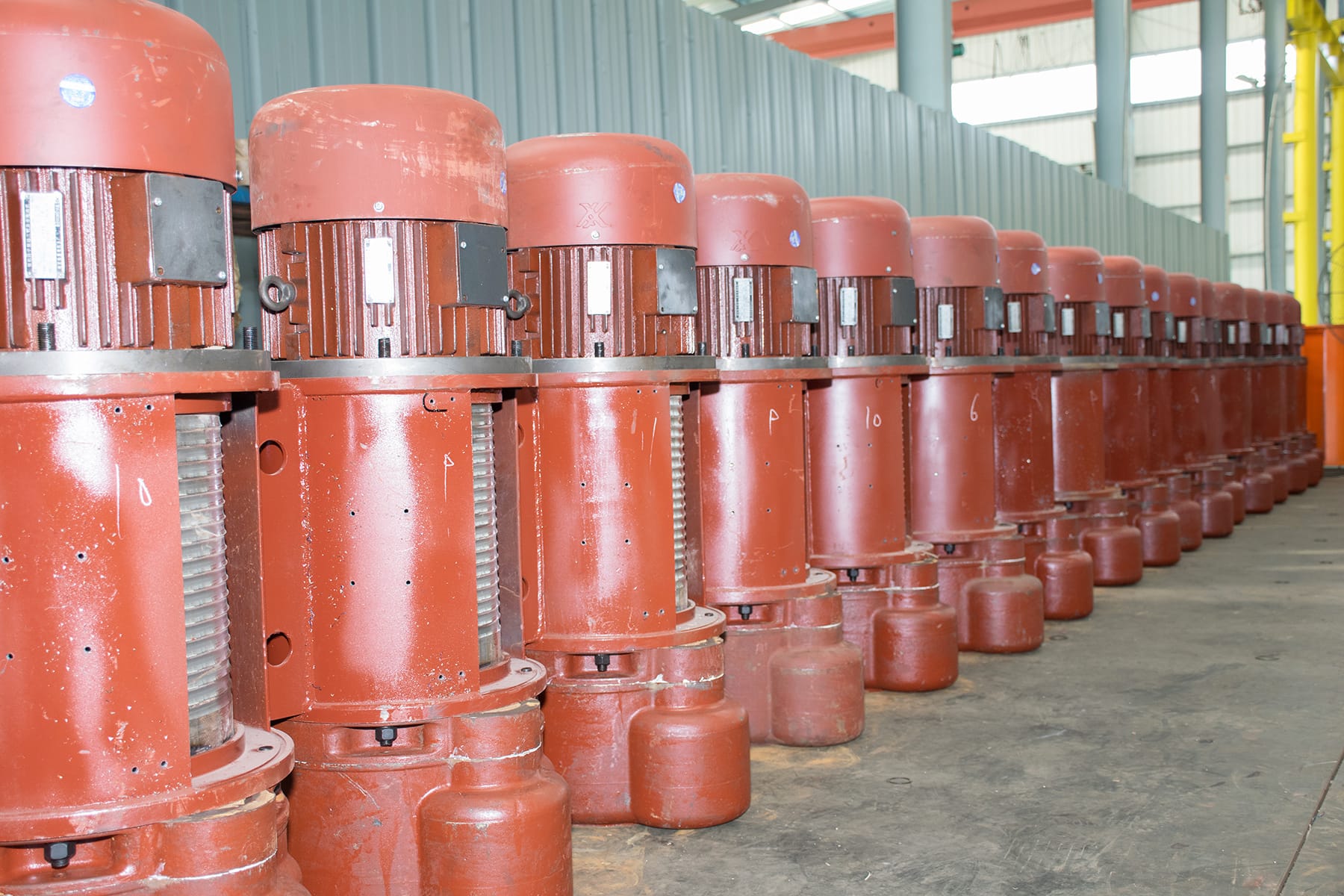

Component Assembly

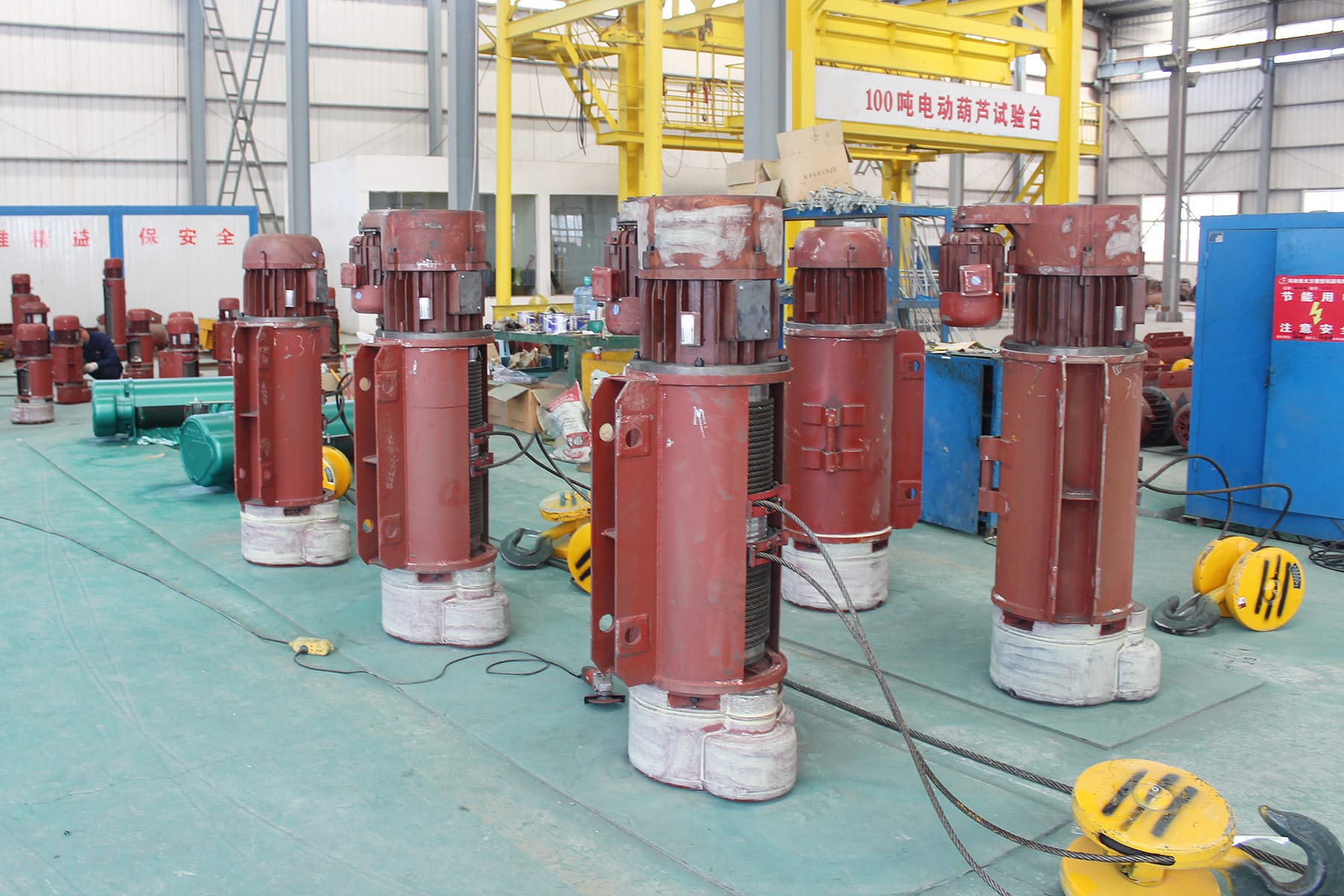

Rope Reeving

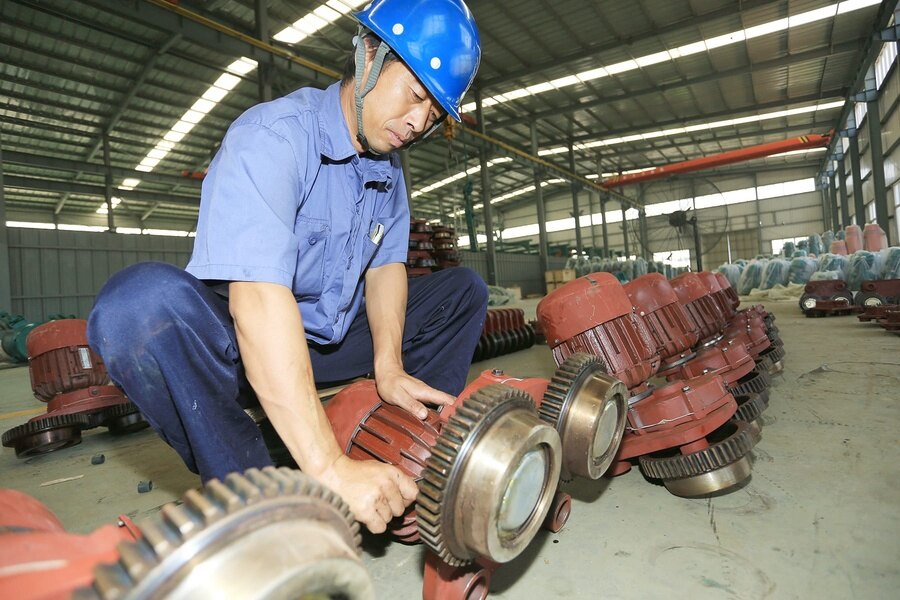

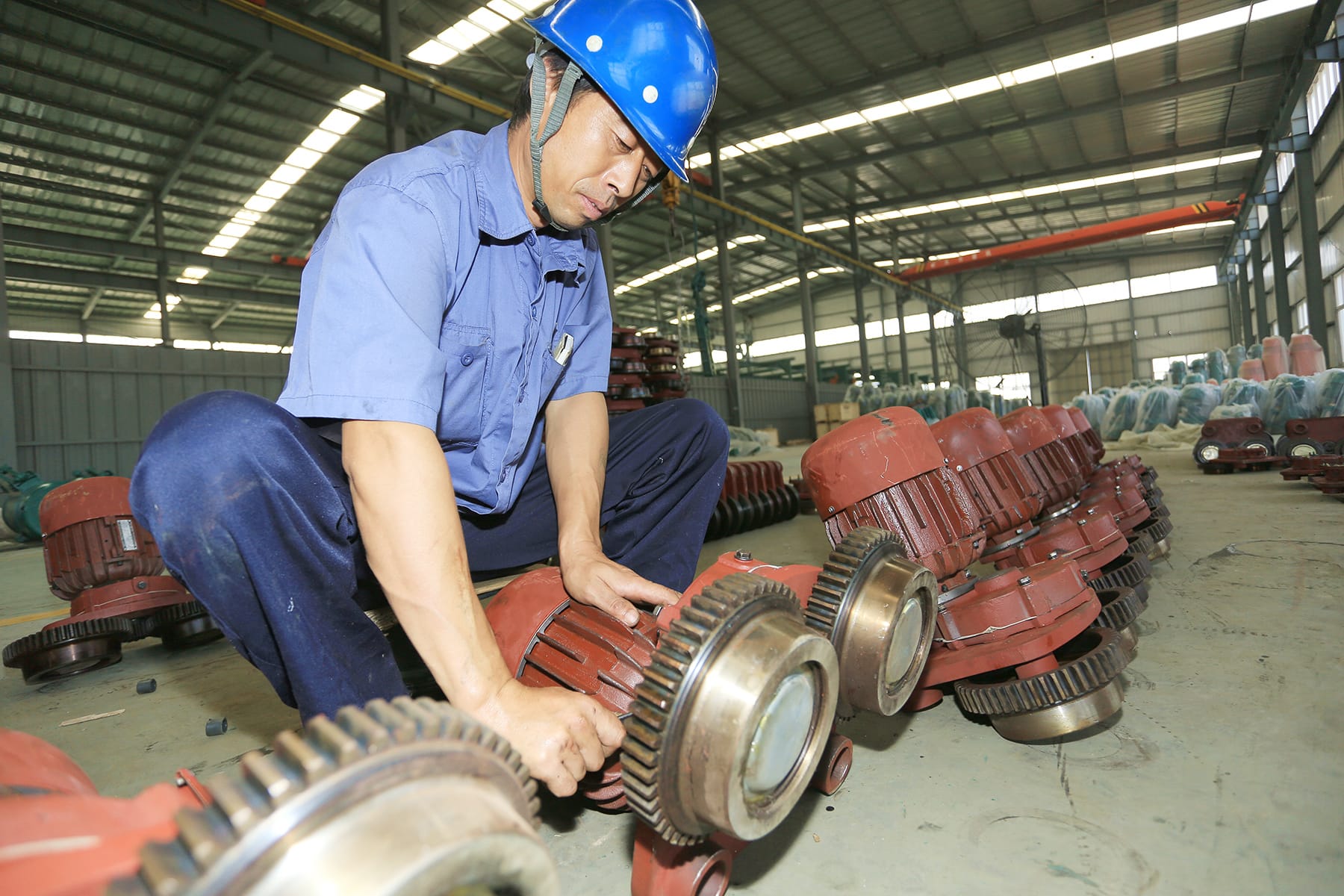

Trolley Installation

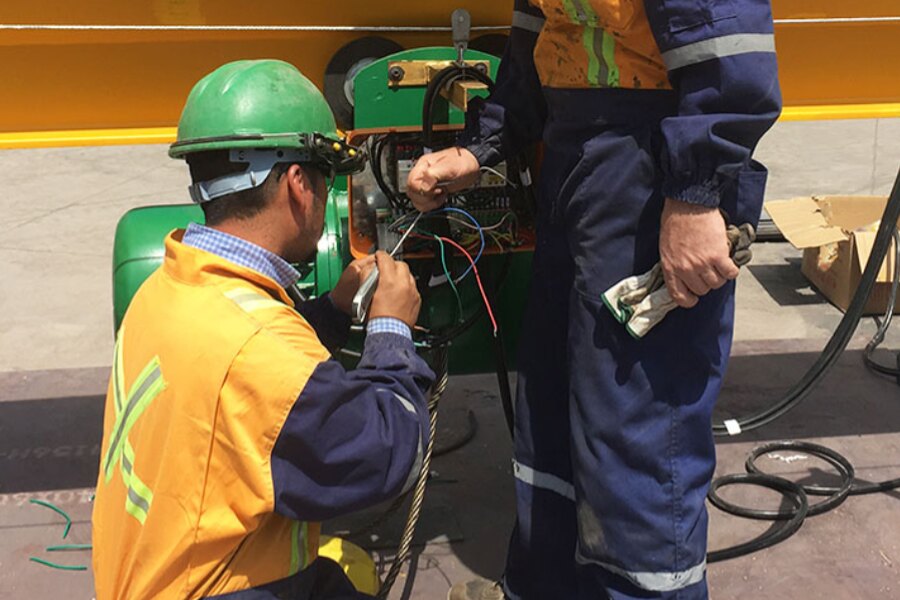

Electrical Inspection

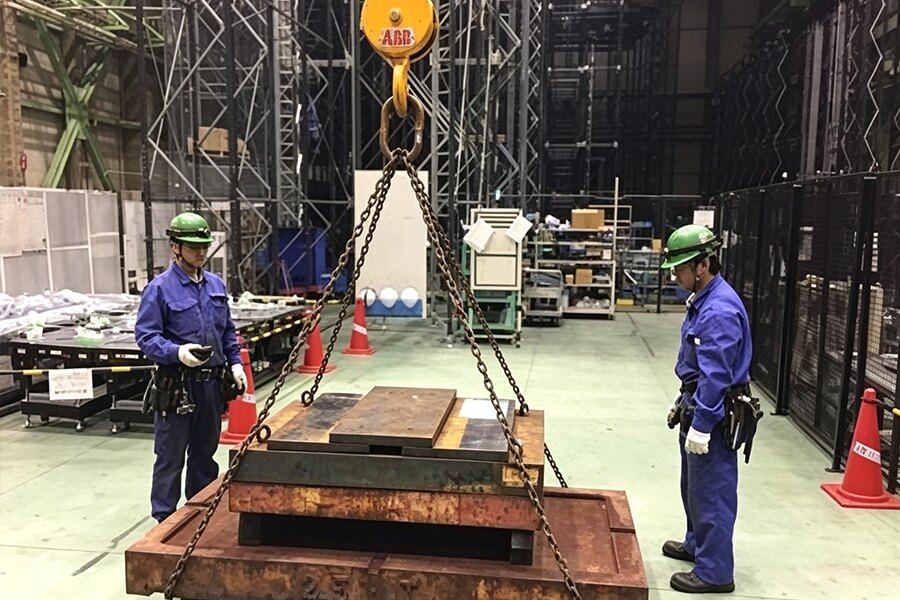

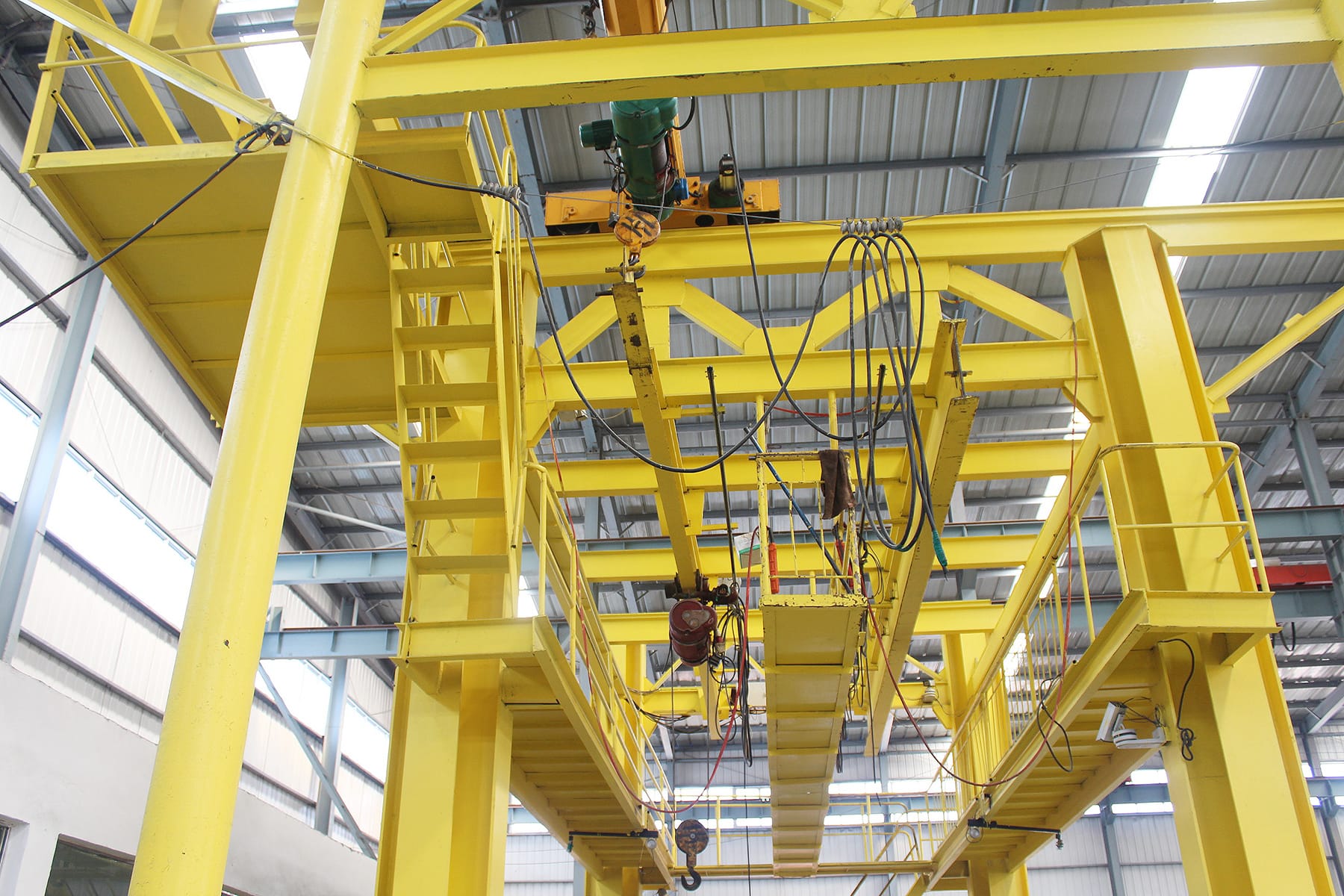

Load & Function Test

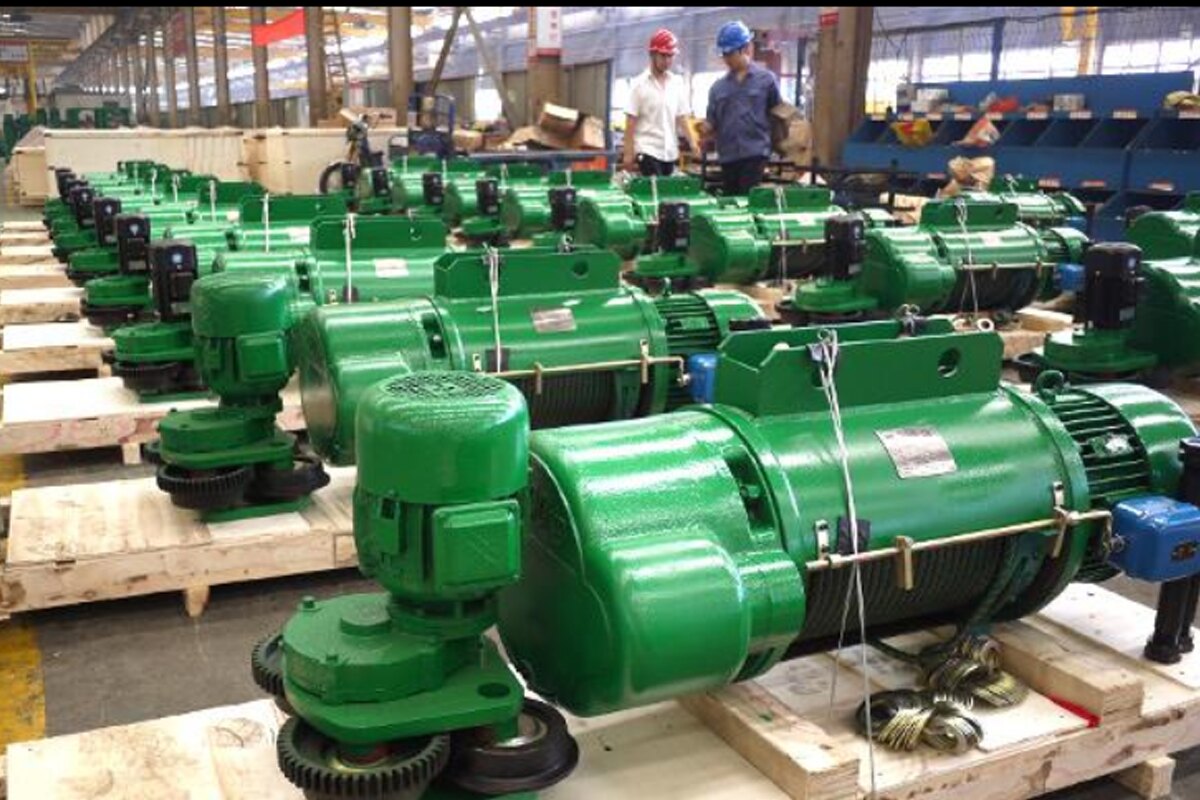

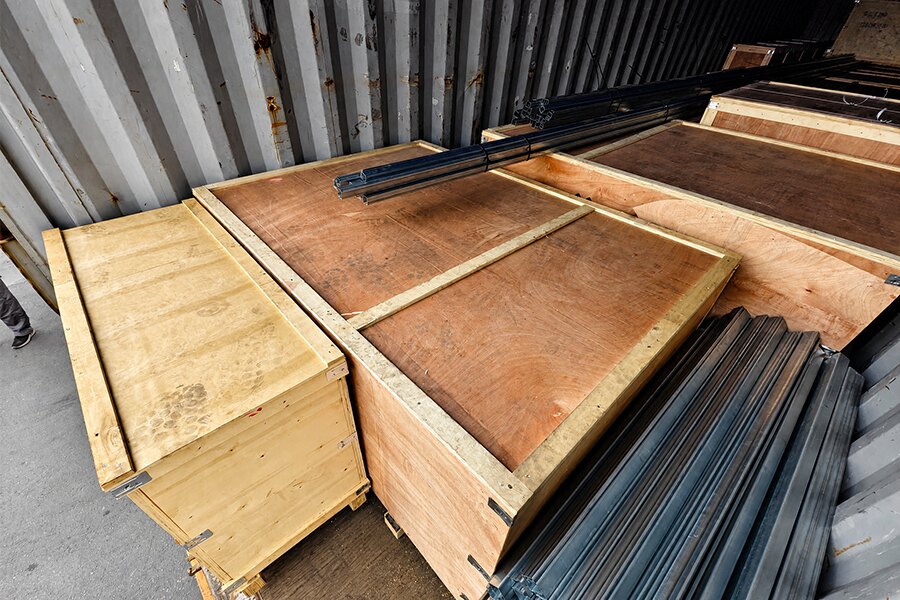

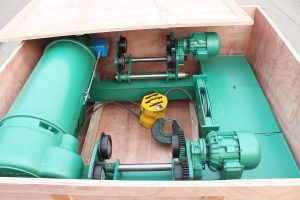

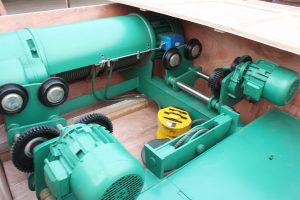

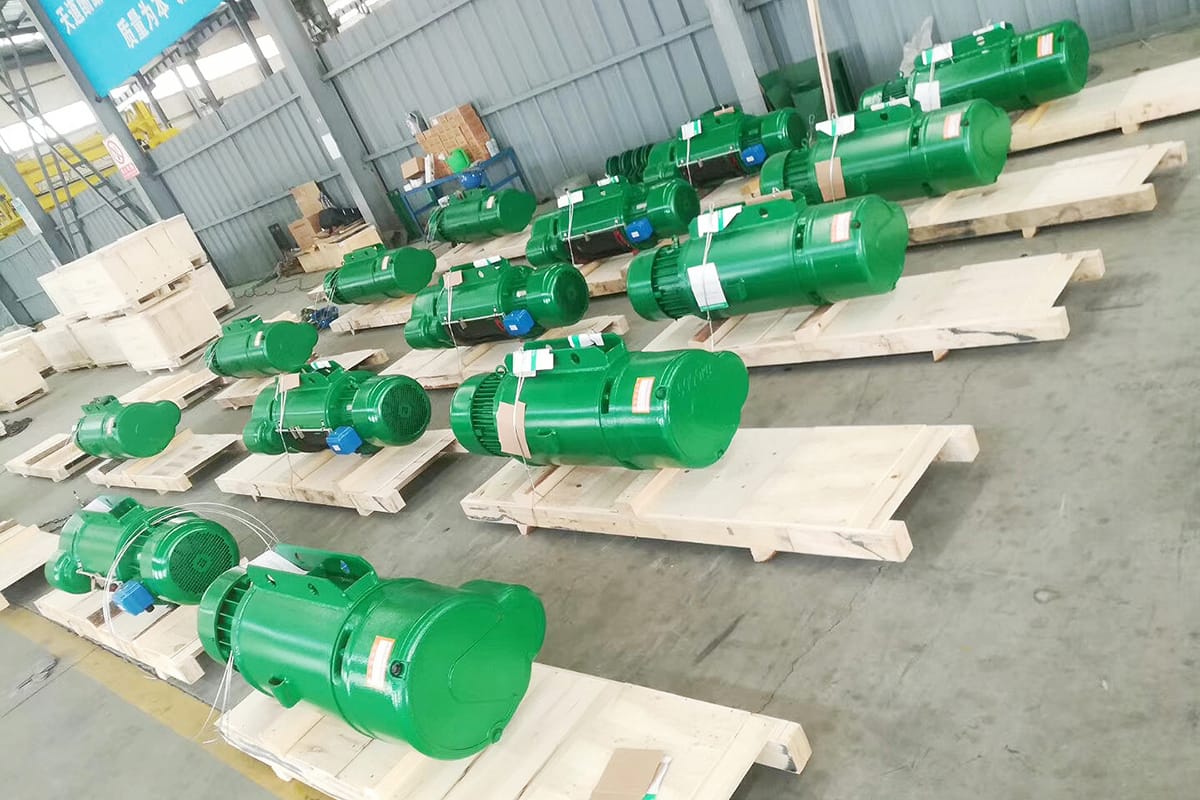

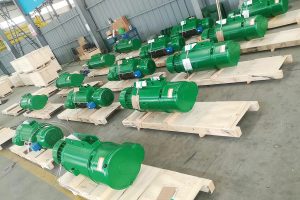

Export packaging
Protected for International Delivery
Components are secured and protected for handling and transport according to the shipment method and project requirements.
Protected Components

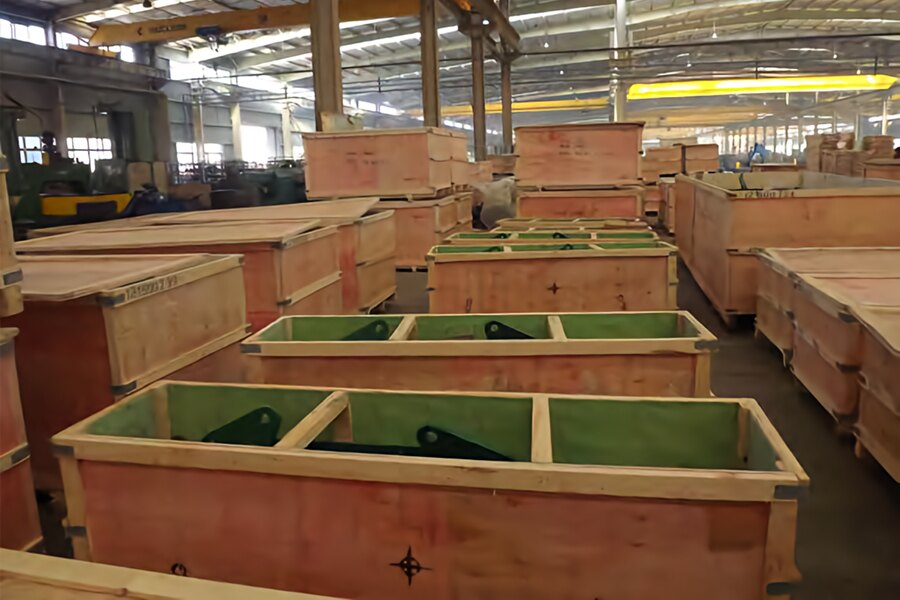

Export Packing

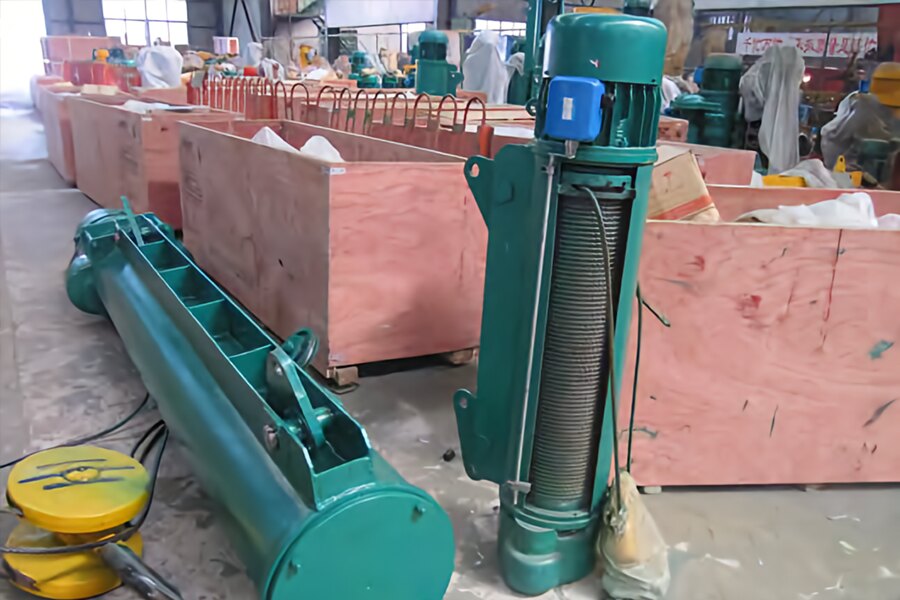

Shipment Preparation
Project support
Delivery, Warranty and Installation Guidance
15–25 Working DaysTypical production time after technical and commercial confirmation.
24-Month WarrantyWarranty support for confirmed supply scope and operating conditions.
On-Site or Remote GuidanceInstallation and commissioning guidance is available according to project needs.
Frequently asked questions
Electric Wire Rope Hoist FAQ
What is the difference between CD1 and MD1?
CD1 is a single-speed hoist for general lifting. MD1 adds a low lifting speed for smoother, more accurate positioning.
When should I choose an LDC low-headroom hoist?
Choose LDC when the building height is limited and maximizing available hook height is important. Final clearance must be checked against the runway and structure.
What information is required for selection?
Please provide rated capacity, lifting height, beam or runway details, available headroom, working frequency, power supply, control method and operating environment.
Can the voltage be customized?
Yes. Configurations from 110 to 440 V, 3-phase, 50/60 Hz can be supplied after electrical confirmation.
Can the hoist be fixed or trolley-mounted?
Yes. Fixed suspension, motorized trolley and low-headroom arrangements are available. Fixed-type images will be added once the confirmed product photography is supplied.
What safety protection is included?
Typical protection includes lifting limits, overload protection, electrical protection and a hook safety latch. The exact scope follows the confirmed design.
Can it be used outdoors?
Outdoor use requires confirmation of enclosure protection, rain protection, ambient temperature, corrosion level and electrical configuration.
What are the lead time and warranty?
Typical production time is 15–25 working days, and the standard warranty is 24 months, subject to the final contract.
Do you provide installation support?
Yes. Remote installation guidance or on-site support can be arranged according to the project location and service scope.
Send Us Your Hoist Requirements
Tell us the lifting capacity, lifting height, beam size, headroom, power supply and working conditions. Our engineering team will recommend a matched CD1, MD1 or LDC solution.
